MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) RADIATOR/OIL COOLER Parts Diagram

Magnum III Three-Wheel Riding Mower

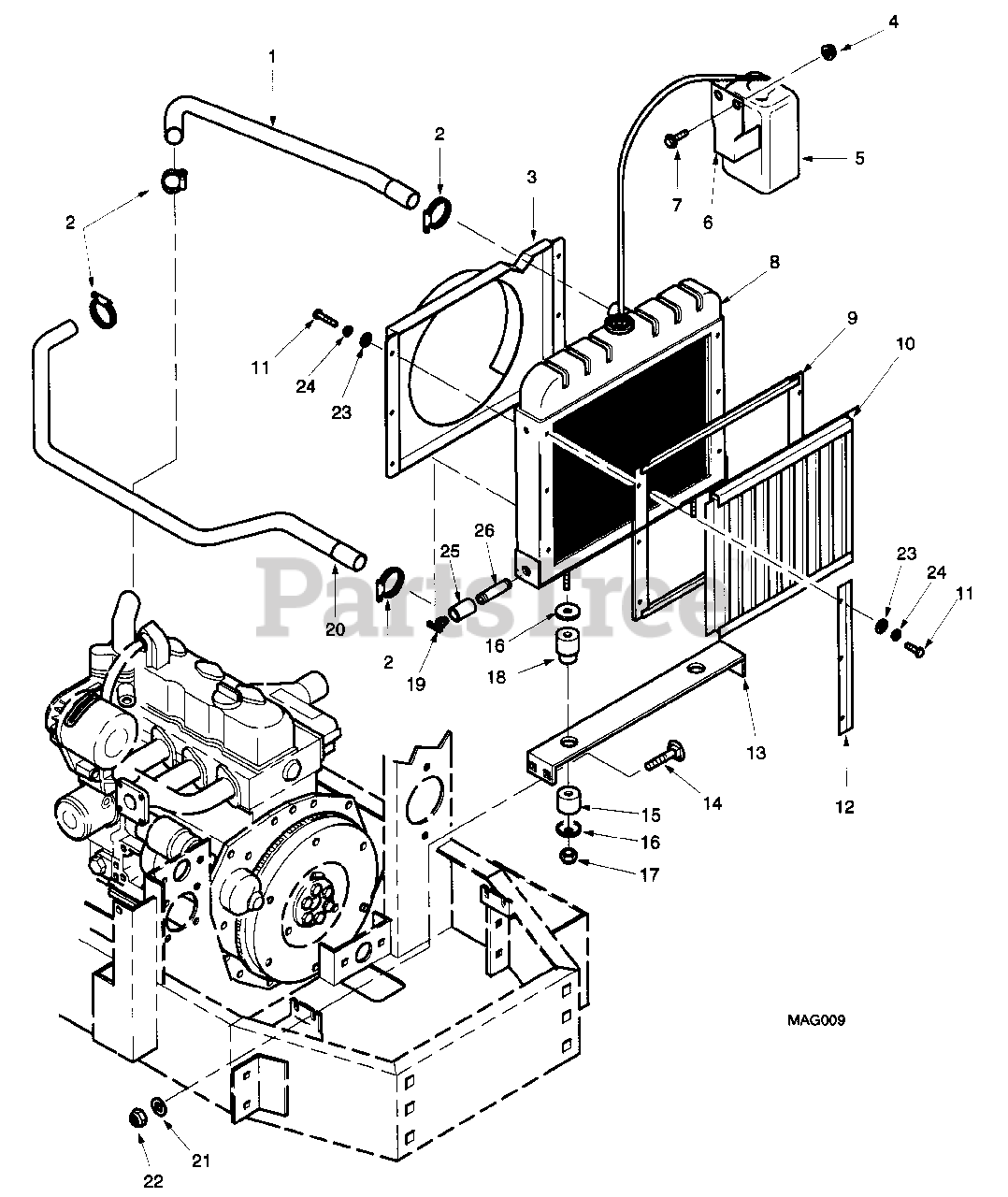

RADIATOR/OIL COOLER Parts Diagram

  • Title

1

Scag 481207

HOSE, UPPER RADIATOR

$31.99

$

Usually ships in 2-12 days

0

2

Scag 48136-06

CLAMP, HOSE

$

$

Not available

3

Scag 45783

SHROUD, FAN

$

$

Not available

4

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 12

0

5

TANK, COOLANT OVERFLOW

Note: AVAILABLE ONLY THROUGH THE ENGINE MANUFACTURER.

$

$

Not available

6

MOUNTING BRACKET, COOLANT TANK

Note: AVAILABLE ONLY THROUGH THE ENGINE MANUFACTURER.

$

$

Not available

7

Scag 04017-16

SERR. FL, HEX HEAD CPSCR, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 10

0

8

Scag 481286

RADIATOR WITH OIL COOLER

$

$

Not available

9

Scag 45784

FRAME, DEBRIS SCREEN

$

$

Not available

10

Scag 45785

SCREEN, DEBRIS

$

$

Not available

11

Scag 04001-06

BOLT, HEX HEAD, 1/4-20 X 5/8

$0.99

$

In Stock, only 3 left!

0

12

Scag 422010

SIDE RAIL, DEBRIS SCREEN

$

$

Currently unavailable

13

Scag 421992

BRACKET, RADIATOR MOUNTING

$21.99

$

Usually ships in 2-12 days

0

14

Scag 04003-11

CARRIAGE BOLT, 3/8-16 X 1-1/4

$0.99

$

In Stock, Qty 7

0

15

CUSHION, RADIATOR MOUNTING

Note: AVAILABLE ONLY THROUGH THE ENGINE MANUFACTURER.

$

$

Not available

16

WASHER, RADIATOR MOUNTING

Note: AVAILABLE ONLY THROUGH THE ENGINE MANUFACTURER.

$

$

Not available

17

Scag 04021-05

LOCKNUT, 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

CUSHION, RADIATOR MOUNTING

Note: AVAILABLE ONLY THROUGH THE ENGINE MANUFACTURER.

$

$

Not available

19

Scag 481302

DRAIN COCK

$4.99

$

Usually ships in 2-12 days

0

20

Scag 481206

HOSE, LOWER RADIATOR

$

$

Not available

21

Scag 04041-07

FLATWASHER, 3/8(.391 X .938 X .105)

$0.99

$

In Stock, Qty 16

0

22

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04040-14

FLATWASHER, 1/4(.312 X .75 X .065)

$0.99

$

In Stock, Qty 7

0

24

Scag 04030-02

LOCKWASHER, 1/4

$0.99

$

In Stock, Qty 20+

0

25

Scag 48576-03

COUPLING, 1/4 NPT

$4.49

$

Usually ships in 2-12 days

0

26

Scag 481383-01

NIPPLE, 1/4 NPT X 2.0

$2.99

$

Usually ships in 2-12 days

0
