MAG-61 (MAG-72) - Scag Magnum III Three-Wheel Riding Mower (SN: 60000 - 69999) THROTTLE LINKAGE Parts Diagram

Magnum III Three-Wheel Riding Mower

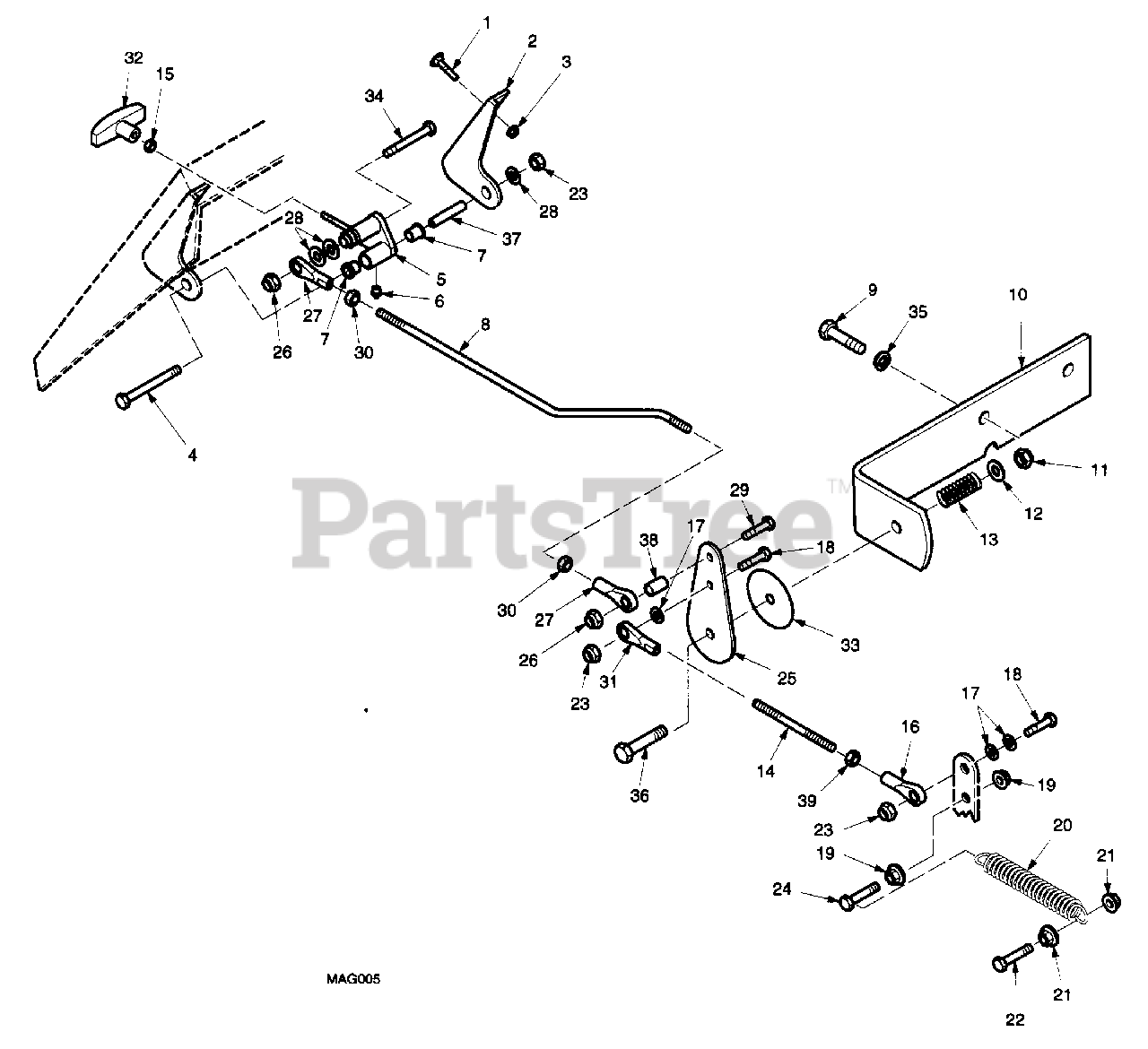

THROTTLE LINKAGE Parts Diagram

  • Title

1

Scag 04003-02

CARRIAGE BOLT, 1/4-20 X .75

$0.99

$

In Stock, Qty 20+

0

2

Scag 421776

MOUNTING BASE, THROTTLE

$

$

Not available

3

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

4

Scag 04001-13

BOLT, HEX HEAD, 5/16-18 X 2-3/4

$0.99

$

In Stock, only 1 left!

0

5

Scag 46877

LEVER, THROTTLE(INCLUDES 6, 7)

$

$

Not available

6

Scag 48114-05

GREASE FITTING

$1.49

$

In Stock, Qty 10

0

7

Scag 48100-04

BUSHING, OILITE - .50 I.D.

$0.99

$

In Stock, only 4 left!

0

8

Scag 44115

ROD, THROTTLE CONTROL

$

$

Not available

9

Scag 04002-11

BOLT, HEX HEAD, M10 - 1.25 X 30

$1.49

$

Usually ships in 2-12 days

0

10

Scag 45822

MOUNTING BRACKET, THROTTLE

$

$

Not available

11

Scag 04021-13

HEX LOCKNUT, ELASTIC STOP, 5/8-11

$1.49

$

In Stock, Qty 11

0

12

Scag 04041-10

FLATWASHER, 5/8

$1.99

$

Usually ships in 2-12 days

0

13

Scag 481244

SPRING, FRICTION CONTROL

$

$

Not available

14

Scag 04004-26

STUD, 5/16-24 X 4.50

$38.99

$

Usually ships in 2-12 days

0

15

Scag 04020-03

HEX NUT, 5/16-18

$0.99

$

In Stock, only 3 left!

0

16

Scag 481189

ROD END, 5/16-24 RH THREAD

$25.99

$

Usually ships in 2-12 days

0

17

Scag 04040-04

FLATWASHER, 5/16(.344 X .688 X .065)

$0.99

$

In Stock, Qty 20+

0

18

Scag 04001-10

BOLT, HEX HEAD, 5/16-18 X 1-1/4

$0.99

$

In Stock, Qty 20+

0

19

Scag 04019-02

SERR. FL. HEX NUT, 1/4-20

$0.99

$

In Stock, Qty 20+

0

20

Scag 481314

SPRING, THROTTLE CONTROL

$11.99

$

Usually ships in 2-12 days

0

21

Scag 04019-03

SERR. FL. HEX NUT, 5/16-18

$0.99

$

In Stock, Qty 16

0

22

Scag 04001-39

BOLT, HEX HEAD, 5/16-18 X 2-1/4

$0.99

$

In Stock, only 3 left!

0

23

Scag 04021-10

HEX LOCKNUT, ELASTIC STOP, 5/16-18

$0.99

$

In Stock, Qty 20+

0

24

Scag 04001-59

BOLT, HEX HEAD, 1/4-20 X 1-14

$0.99

$

In Stock, Qty 17

0

25

Scag 421997

LEVER, THROTTLE

$

$

Not available

26

Scag 04021-09

HEX LOCKNUT, ELASTIC STOP, 3/8-16

$0.99

$

In Stock, Qty 20+

0

27

Scag 48464

BALL JOINT, 3/8-24 RH THREAD

$23.99

$

In Stock, only 1 left!

0

28

Scag 04040-04

FLATWASHER, 5/16

$0.99

$

In Stock, Qty 20+

0

29

Scag 04001-20

BOLT, HEX HEAD, 3/8-16 X 1-1/2

$0.99

$

In Stock, Qty 17

0

30

Scag 04020-14

HEX NUT, 3/8-24

$0.99

$

In Stock, Qty 7

0

31

Scag 481188

ROD END, 5/16-24 LH THREAD

$26.99

$

Usually ships in 2-12 days

0

32

Scag 481092

KNOB, SHIFTER

$

$

Not available

33

Scag 481243

DISC, FRICTION

$

$

Not available

34

Scag 04001-51

BOLT, HEX HEAD, 3/8-16 X 3-3/4

$1.49

$

In Stock, Qty 20+

0

35

Scag 04030-05

LOCKWASHER, 7/16

$0.99

$

In Stock, Qty 14

0

36

Scag 04001-125

BOLT, HEX HEAD, 5/8-11 X 3-1/2

$7.49

$

In Stock, only 4 left!

0

37

Scag 43110

SLEEVE

$8.49

$

Usually ships in 2-12 days

0

38

Scag 43212

SLEEVE

$4.49

$

Usually ships in 2-12 days

0

39

Scag 04020-13

HEX NUT, 5/16-24

$0.99

$

Usually ships in 2-12 days

0
