MAG-61 - Scag Magnum III 61" Three-Wheel Riding Mower (SN: 70000 - 79999) Engine Deck Parts Diagram

Magnum III 61" Three-Wheel Riding Mower

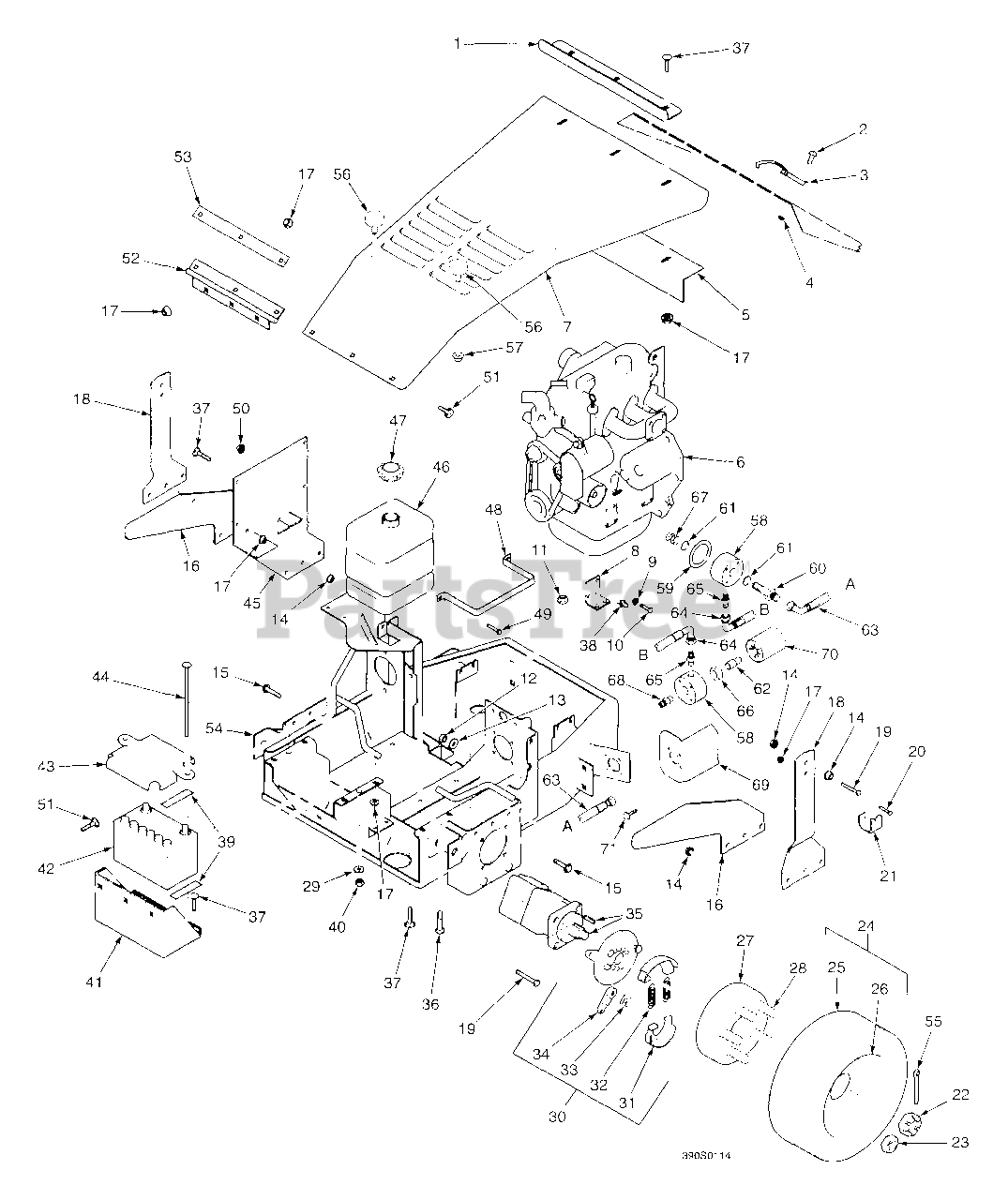

Engine Deck Parts Diagram

  • Title

1

Scag 422002

Catch, Hood Latch

$

$

Not available

2

Scag 04010-01

Screw, Round Head Washer, #10-32 x 1/2

$0.99

$

In Stock, Qty 20+

0

3

Scag 481309

Latch, Hood

$59.99

$

In Stock, only 1 left!

0

4

Scag 04020-01

Hex Nut, #10-32

$8.99

$

In Stock, Qty 20+

0

5

Scag 421801

Stiffener, Hood

$12.99

$

Usually ships in 2-12 days

0

6

Engine, Kubota, 28 HP Diesel

$

$

Not available

7

Scag 422236

Hood

$

$

Not available

8

Scag 421802

Mounting Plate, Engine

$58.99

$

Usually ships in 2-12 days

0

9

Scag 04030-05

Lockwasher, 7/16

$0.99

$

In Stock, Qty 14

0

10

Scag 04002-10

Bolt, Hex Head, M10-1.25 x 25

$0.99

$

Usually ships in 2-12 days

0

11

Scag 04021-11

Hex Locknut, Elastic Stop, 7/16-14

$0.99

$

In Stock, Qty 9

0

12

Scag 04020-07

Hex Nut, 1/2-13

$0.99

$

In Stock, only 3 left!

0

13

Scag 04030-06

Lockwasher, 1/2

$0.99

$

In Stock, only 2 left!

0

14

Scag 04019-06

Serr. Fl. Hex Nut, 1/2-13

$0.99

$

In Stock, Qty 20+

0

15

Scag 04017-38

Serr. Fl. Hex Head Capscrew, 1/2-13 x 1-1/2

$3.49

$

Usually ships in 2-12 days

0

16

Scag 421782

Stop, Cutter Deck

$25.99

$

Usually ships in 2-12 days

0

17

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 16

0

18

Scag 421806

Anchor, Deck Spring

$

$

Not available

19

Scag 04001-52

Bolt, Hex Head, 1/2-13 x 2-1/2

$1.99

$

In Stock, only 1 left!

0

20

Scag 04017-16

Serr Fl. Hex Head Capscrew, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 10

0

21

Scag 422027

Retainer, Spring

$

$

Not available

22

Scag 48680

Castle Nut, 1.0-20 UNEF

$17.99

$

In Stock, only 2 left!

0

23

Scag 04028-01

Nut, Wheel

$1.49

$

In Stock, Qty 14

0

24

Scag 481205

Wheel Assembly

Note: Includes 25, 26

$578.99

$

Usually ships in 2-12 days

0

25

Scag 481205-02

Tire, 23 x 1050 -12, 4-ply

$

$

Not available

26

Scag 481205-03

Rim

$215.99

$

Usually ships in 2-12 days

0

27

Scag 46825

Hub, Wheel

Note: Includes 28

$454.99

$

Usually ships in 2-12 days

0

28

Scag 04008-01

Bolt, Hub

$3.99

$

In Stock, Qty 20+

0

29

Scag 04040-15

Flat Washer, 5/16 (.375 x .875 x .083)

$0.99

$

In Stock, Qty 9

0

30

Scag 48461

Parking Brake Assembly

Note: Includes 31, 32, 33, 34

$318.99

$

Usually ships in 2-12 days

0

31

Scag 48461-02

Brake Pads - Pair

$149.99

$

Usually ships in 2-12 days

0

32

Scag 48461-03

Springs - Pair

$14.99

$

Usually ships in 2-12 days

0

33

Scag 48461-05

Clip

$4.99

$

Usually ships in 2-12 days

0

34

Scag 48461-04

Actuating Arm

$149.99

$

Usually ships in 2-12 days

0

35

Scag 48769

Motor, Hydraulic - White

Note: Includes 22

$2963.99

$

Usually ships in 2-12 days

0

36

Scag 04001-28

Bolt, Hex Head, 7/16-14 x 1-1/4

$0.99

$

In Stock, Qty 12

0

37

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 15

0

38

Scag 43394

Stud, Metric

$17.99

$

Usually ships in 2-12 days

0

39

Scag 48205

Pad, Rubber

$4.49

$

Usually ships in 2-12 days

0

40

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

41

Scag 421798

Battery Box

$

$

Not available

42

Scag 481177

Battery

$

$

Not available

43

Scag 421799

Hold Down, Battery

$44.99

$

Usually ships in 2-12 days

0

44

Scag 04003-20

Carriage Bolt, 5/16-18 x 10

$14.99

$

Usually ships in 2-12 days

0

45

Scag 421781

Support Bracket, Hydraulic Tank

$54.99

$

Usually ships in 2-12 days

0

46

Scag 48711

Hydraulic Tank

$386.99

$

Usually ships in 2-12 days

0

47

Scag 481164

Cap, Hydraulic Tank

$18.99

$

In Stock, only 4 left!

0

48

Scag 421288

Strap, Hydraulic Tank

$25.99

$

Usually ships in 2-12 days

0

49

Scag 04017-05

Serr Fl. Hex Head Capscrew, 1/4-20 x 3/4

$0.99

$

In Stock, Qty 20+

0

50

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 10

0

51

Scag 04003-14

Carriage Bolt, 5/16-18-1/2

$0.99

$

In Stock, Qty 8

0

52

Scag 481165

Hinge

$

$

Not available

53

Scag 421783

Plate, Hinge

$9.99

$

Usually ships in 2-12 days

0

54

Scag 45862

Engine Deck

$

$

Not available

55

Scag 04061-04

Pin, Cotter, 5/32 x 1-1/2

$

$

Currently unavailable

56

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 2 left!

0

57

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 16

0

58

Scag 481440

Adapter, Remote Oil Filter

$

$

Not available

59

Scag 481441

Gasket, Oil Filter Adapter

$3.99

$

In Stock, only 1 left!

0

60

Scag 481442

MTG Bolt, Filter Adapter

$

$

Not available

61

Scag 48603-04

O-Ring

$8.99

$

In Stock, only 2 left!

0

62

Scag 481443

Reducer, Remote Filter

$

$

Not available

63

Scag 481444

Hose Assy, Remote Filter

$98.99

$

Usually ships in 2-12 days

0

64

Scag 481445

Hose Assy, Remote Filter

$110.99

$

Usually ships in 2-12 days

0

65

Scag 481446-01

Connector, 1/2 Pipe x 3/4 JIC

$9.99

$

Usually ships in 2-12 days

0

66

Scag 481447

Nut, 7/8-14

$

$

Not available

67

Scag 481457

Spring Filter Adapter

$5.99

$

Usually ships in 2-12 days

0

68

Scag 48572-08

Tube Union, 7/8-14 JIC x O-Ring

$

$

Not available

69

Scag 422239

Guard Oil Filter

$27.99

$

Usually ships in 2-12 days

0

70

Oil Filter, Engine

$

$

Not available

71

Scag 04001-01

Bolt, 1/4-20 X 75 Hex Head

$0.99

$

In Stock, Qty 19

0
