MAG-61 - Scag Magnum III 61" Three-Wheel Riding Mower (SN: 70000 - 79999) Forward/Reverse Linkage Parts Diagram

Magnum III 61" Three-Wheel Riding Mower

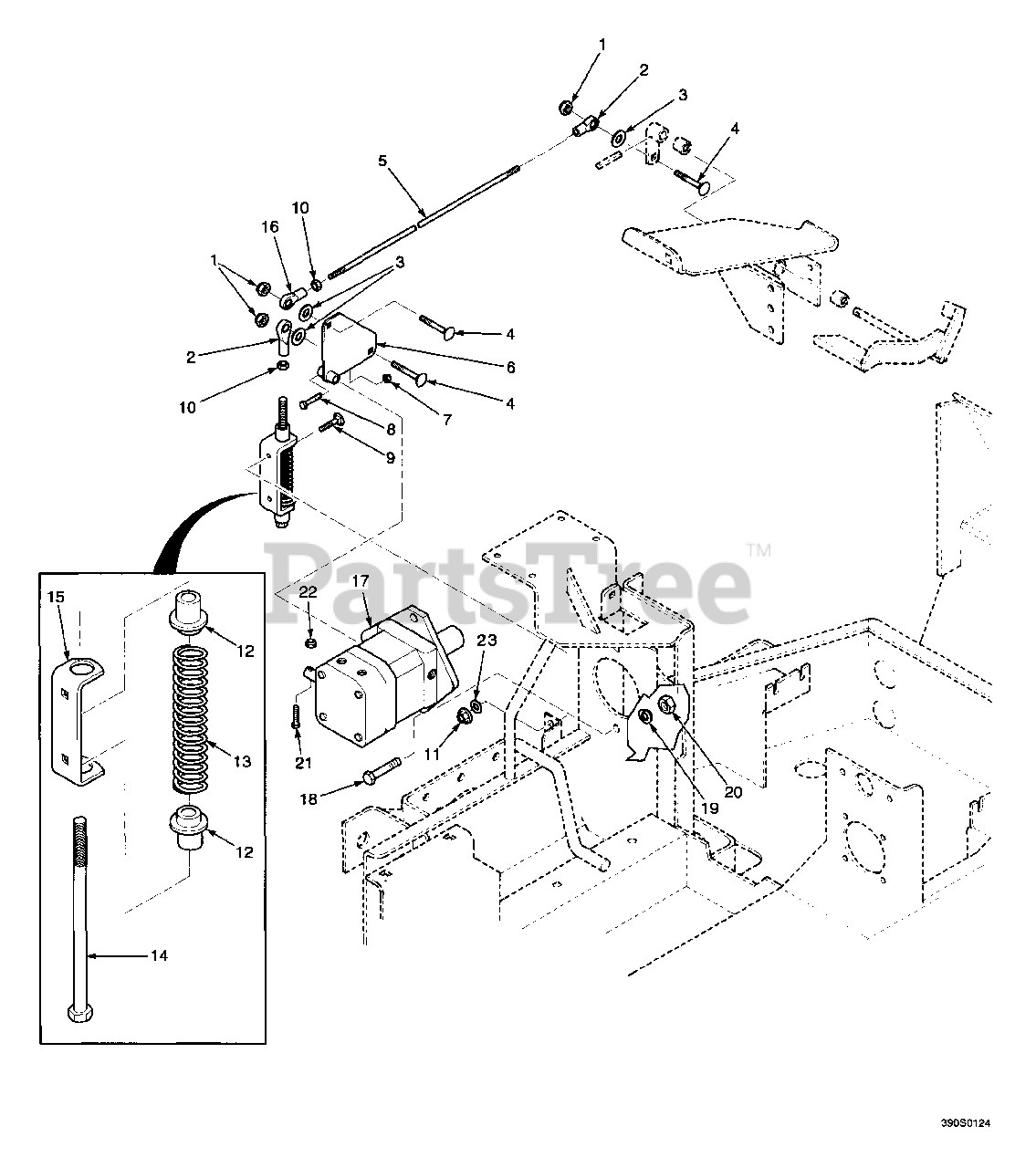

Forward/Reverse Linkage Parts Diagram

  • Title

1

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

2

Scag 48544

Ball Joint, 3/8-24 LH Thread

$27.99

$

Usually ships in 2-12 days

0

3

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

4

Scag 04003-05

Carriage Bolt, 3/8-16 x 1-1/2

$0.99

$

In Stock, Qty 11

0

5

Scag 04004-22

Rod, Transmission Control

$19.99

$

Usually ships in 2-12 days

0

6

Scag 45708

Bellcrank, Pump Control

$

$

Not available

7

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 10

0

8

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1-1/4

$0.99

$

In Stock, Qty 17

0

9

Scag 04003-04

Carriage Bolt, 5/16-18 x 1

$0.99

$

In Stock, only 4 left!

0

10

Scag 04020-14

Hex Nut, 3/8-24

$0.99

$

In Stock, Qty 7

0

11

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 16

0

12

Scag 43257

Bushing, Spring Keeper

$16.99

$

Usually ships in 2-12 days

0

13

Scag 48463

Spring, Neutral Return

$5.49

$

Usually ships in 2-12 days

0

14

Scag 48512

Bolt, Neutral Adjustment, 3/8-24 x 6-3/4

$42.99

$

Usually ships in 2-12 days

0

15

Scag 421148

Retainer, Neutral Spring

$21.99

$

Usually ships in 2-12 days

0

16

Scag 48464

Ball Joint, 3/8-24 RH Thread

$23.99

$

In Stock, only 1 left!

0

17

Scag 481102

Hydraulic Pump

$5115.99

$

Usually ships in 2-12 days

0

18

Scag 04001-71

Bolt, Hex Head, 1/2-13 x 1-1/2

$1.49

$

In Stock, only 4 left!

0

19

Scag 04030-06

Lockwasher, 1/2

$0.99

$

In Stock, only 2 left!

0

20

Scag 04020-07

Hex Nut, 1/2-13

$0.99

$

In Stock, only 3 left!

0

21

Scag 04010-11

Screw, Round Head, #10-32

$0.99

$

Usually ships in 2-12 days

0

22

Scag 04021-01

Hex Nut, Elastic Stop, #10-32

$0.99

$

In Stock, Qty 10

0

23

Scag 04040-15

Flatwasher, 5/16 (.375 x.875 x .083)

$0.99

$

In Stock, Qty 9

0
