MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Cutter Brake Linkage Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

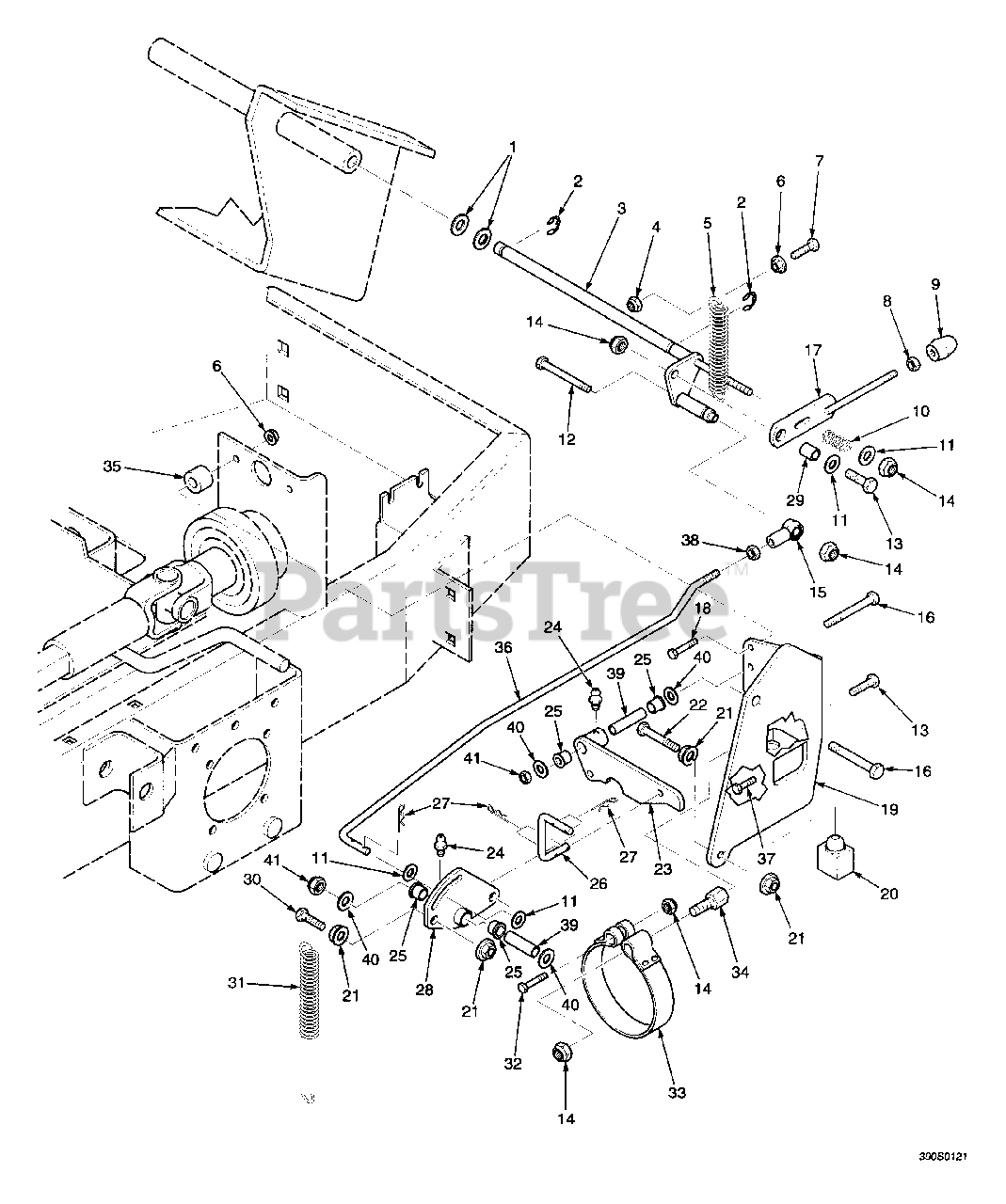

Cutter Brake Linkage Parts Diagram

  • Title

1

Scag 04041-08

Flatwasher, 3/4 (.766 x 1.250 x .060)

$0.99

$

In Stock, Qty 20+

0

Scag 04041-08S

Flatwasher, 3/4 (.766 x 1.250 x .035)

$0.99

$

In Stock, Qty 20+

0

2

Scag 04050-02

Retaining Ring - .75 Ext

$0.99

$

In Stock, Qty 10

0

3

Scag 45702

Lever, Clutch Engage

$

$

Not available

4

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

5

Scag 481163

Spring, Clutch Lever

$21.99

$

Usually ships in 2-12 days

0

6

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 16

0

7

Scag 04017-17

Serr. Fl. Hex Head Capscrew, 5/16-18 x 1

$0.99

$

Usually ships in 2-12 days

0

8

Scag 04020-04

Nut, Hex, 3/8-16

$0.99

$

In Stock, Qty 20+

0

9

Scag 48092

Grip, Clutch Lever

$5.99

$

Usually ships in 2-12 days

0

10

Scag 481244

Spring, Friction Control

$

$

Not available

11

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

12

Scag 04001-51

Bolt, Hex Head, 3/8-16 x 3-3/4

$1.49

$

In Stock, Qty 20+

0

13

Scag 04017-26

Serr. Fl. Hex Head Capscrew, 3/8-16 x 3/4

$1.49

$

Usually ships in 2-12 days

0

14

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

15

Scag 48464

Ball Joint, RH Thd, 3/8-16

$23.99

$

In Stock, only 1 left!

0

16

Scag 04001-53

Bolt, Hex Head, 5/16-18 x 2-1/2

$0.99

$

In Stock, Qty 13

0

17

Scag 45693

Lever, Clutch

$

$

Not available

18

Scag 04017-19

Serr. Fl. Hex Head Capscrew, 5/16-18 x 1-1/2

$1.49

$

Usually ships in 2-12 days

0

19

Scag 421805

Base, Brake Assembly

$89.99

$

Usually ships in 2-12 days

0

20

Scag 481474

Switch, Interlock

$106.99

$

In Stock, only 3 left!

0

21

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

22

Scag 04001-31

Bolt, Hex Head, 3/8-16 x 2-1/2

$0.99

$

In Stock, Qty 10

0

23

Scag 46875

Lever, Brake Engage

Note: Includes 24, 25

$57.99

$

Usually ships in 2-12 days

0

24

Scag 48114-05

Grease Fitting, Short

$1.49

$

In Stock, Qty 10

0

25

Scag 48100-04

Bushing, Oilite - .50 I.D.

$0.99

$

In Stock, only 4 left!

0

26

Scag 44109

Rod, Clutch Engage

$11.99

$

Usually ships in 2-12 days

0

27

Scag 04062-02

Cotter Pin, Hair (.080 x 1.19)

$0.99

$

In Stock, Qty 20+

0

28

Scag 46876

Bellcrank, Clutch Engage

Note: Includes 24, 25

$114.99

$

Usually ships in 2-12 days

0

29

Scag 43212

Sleeve

$4.49

$

Usually ships in 2-12 days

0

30

Scag 04001-20

Bolt, Hex Head, 3/8-16 x 1-1/2

$0.99

$

In Stock, Qty 17

0

31

Scag 481034

Spring, Brake

$7.99

$

Usually ships in 2-12 days

0

32

Scag 04001-26

Bolt, Hex Head, 3/8-16 x 1-1/4

$0.99

$

Usually ships in 2-12 days

0

33

Scag 481170

Brake Band

$39.99

$

Usually ships in 2-12 days

0

34

Scag 43337

Anchor, Brake

$45.99

$

Usually ships in 2-12 days

0

35

Scag 43336

Spacer, Brake

$9.99

$

Usually ships in 2-12 days

0

36

Scag 44110

Rod, Clutch Engage

$18.99

$

Usually ships in 2-12 days

0

37

Scag 04017-20

Serr. Fl. Hex Head Capscrew, 5/16-18 x 1-3/4

$1.49

$

Usually ships in 2-12 days

0

38

Scag 04020-14

Hex Nut, 3/8-24

$0.99

$

In Stock, Qty 7

0

39

Scag 43110

Sleeve, Control Lever

$8.49

$

Usually ships in 2-12 days

0

40

Scag 04040-04

Flatwasher, 5/16 (.344 x .688 x .065)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0
