MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Radiator/Oil Cooler Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

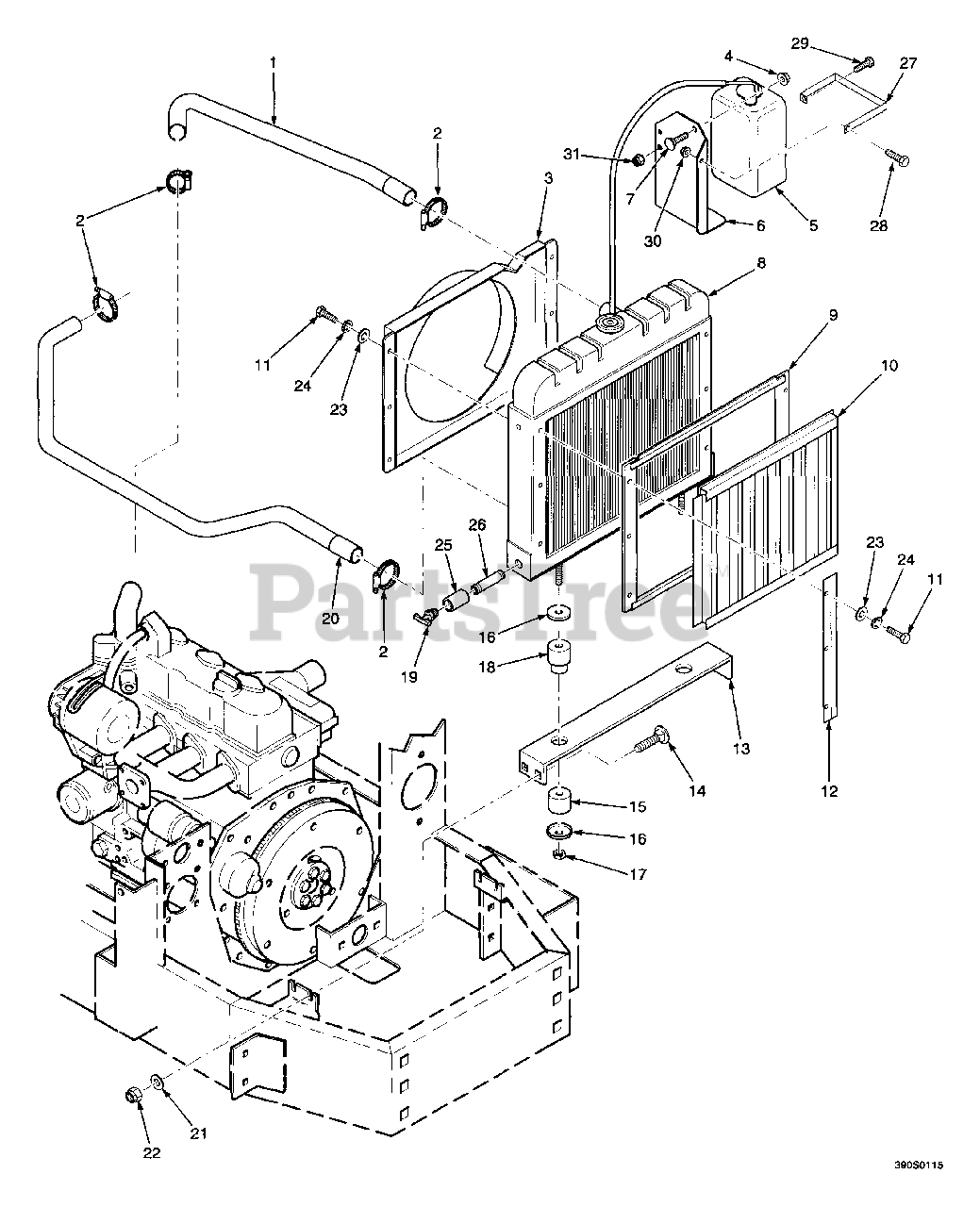

Radiator/Oil Cooler Parts Diagram

  • Title

1

Scag 481207

Hose, Upper Radiator

$31.99

$

Usually ships in 2-12 days

0

2

Scag 48136-06

Clamp, Hose

$

$

Not available

3

Scag 45783

Shroud, Fan

$

$

Not available

4

Scag 04019-03

Serr. Fl Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 16

0

5

Tank, Coolant Overflow

Note: Available only through the engine manufacturer

$

$

Not available

6

Scag 422192

Mounting Bracket, Coolant Tank

$

$

Not available

7

Scag 04003-12

Carriage Bolt, 5/16-18 x .75

$0.99

$

In Stock, Qty 15

0

8

Scag 481286

Radiator with Oil Cooler

$

$

Not available

9

Scag 45784

Frame, Debris Screen

$

$

Not available

10

Scag 45785

Screen. Debris

$

$

Not available

11

Scag 04001-06

Bolt, Hex Head, 1/4-20 X 5/8

$0.99

$

In Stock, only 3 left!

0

12

Scag 422010

Side Rail, Debris Screen

$

$

Currently unavailable

13

Scag 421992

Bracket, Radiator Mounting

$21.99

$

Usually ships in 2-12 days

0

14

Scag 04003-11

Carriage Bolt, 3/8-16 x 1-1/4

$0.99

$

In Stock, Qty 7

0

15

Cushion, Radiator Mounting

Note: Available only through the engine manufacturer

$

$

Not available

16

Washer, Radiator Mounting

Note: Available only through the engine manufacturer

$

$

Not available

17

Scag 04021-05

Locknut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

18

Cushion, Radiator Mounting

Note: Available only through the engine manufacturer

$

$

Not available

19

Scag 481302

Drain Cock

$4.99

$

Usually ships in 2-12 days

0

20

Scag 481206

Hose, Lower Radiator

$

$

Not available

21

Scag 04041-07

Flatwasher, 3/8 (.391 x .938 x 105)

$0.99

$

In Stock, Qty 18

0

22

Scag 04021-09

Hex Locknut, Elastic Stop, 3/8-16

$0.99

$

In Stock, Qty 20+

0

23

Scag 04040-14

Flatwasher, 1/4 (.312 x .75 X .065)

$0.99

$

In Stock, Qty 7

0

24

Scag 04030-02

Lockwasher, 1/4

$0.99

$

In Stock, Qty 20+

0

25

Scag 48576-03

Coupling, 1/4 NPT

$4.49

$

Usually ships in 2-12 days

0

26

Scag 481383-01

Nipple, 1/4 NPT x 2.0

$2.99

$

Usually ships in 2-12 days

0

27

Scag 422194

Strap, Coolant Bottle

$

$

Not available

28

Scag 04001-44

Bolt, Hex Head, 1/4-20 x .50

$0.99

$

In Stock, Qty 10

0

29

Scag 04001-59

Bolt, Hex Head, 1/4-20 x 1 25

$0.99

$

In Stock, Qty 16

0

30

Scag 04019-02

Serr. Fl Hex Nut, 1/4-20

$0.99

$

In Stock, Qty 20+

0

31

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 10

0
