MAG-72 - Scag Magnum III 72" Three-Wheel Riding Mower (SN: 70000 - 79999) Rider Frame Parts Diagram

Magnum III 72" Three-Wheel Riding Mower

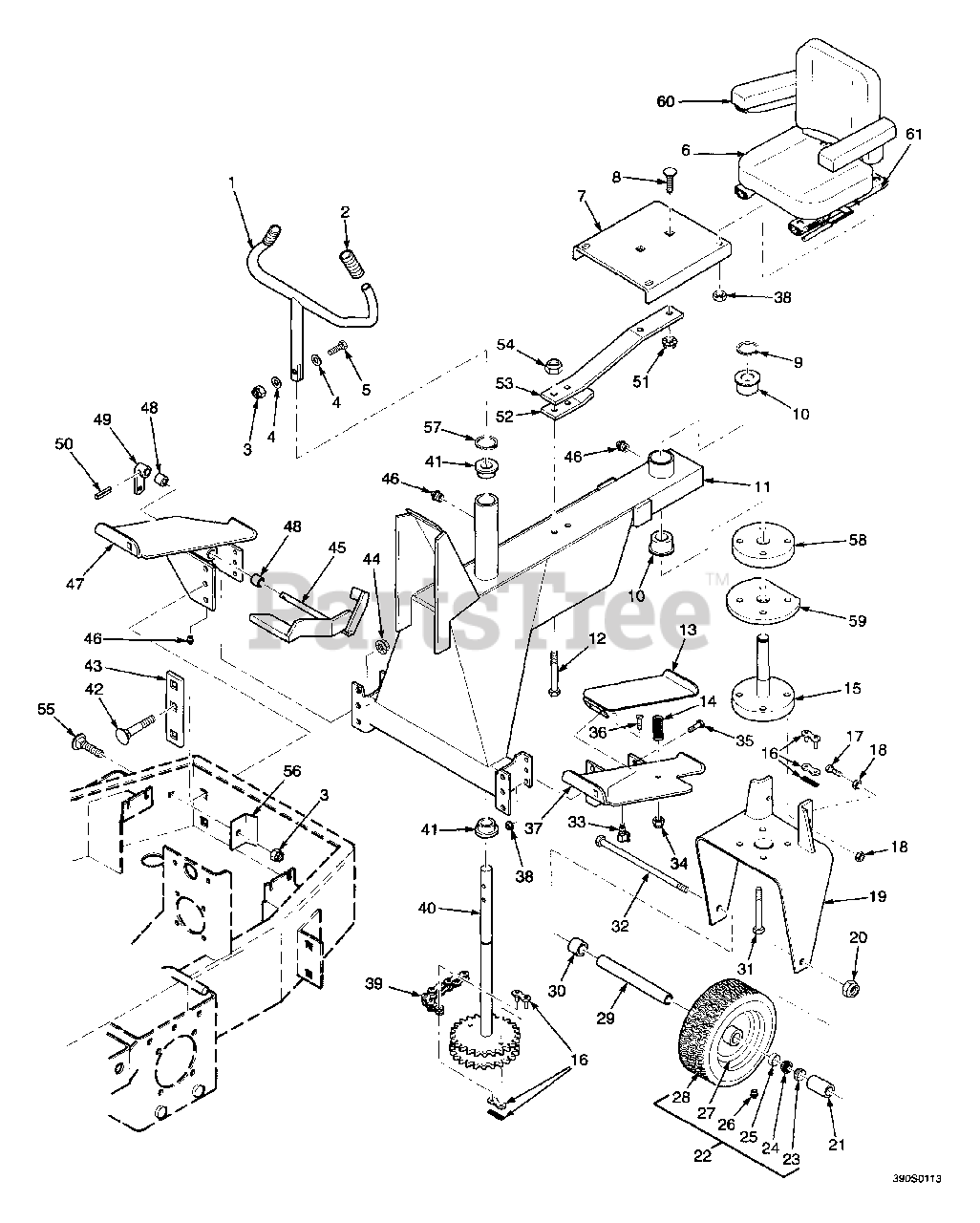

Rider Frame Parts Diagram

  • Title

1

Scag 46029

Handle, Steering

Note: Includes 2

$138.99

$

Usually ships in 2-12 days

0

2

Scag 48159

Handle Grip

$3.49

$

In Stock, Qty 11

0

3

Scag 04021-10

Hex Locknut, Elastic Stop, 5/16-18

$0.99

$

In Stock, Qty 20+

0

4

Scag 04040-15

Flatwasher, 5/16 (.375 x.875 x 083)

$0.99

$

In Stock, Qty 9

0

5

Scag 04001-12

Bolt, Hex Head, 5/16-18 x 1.75

$0.99

$

In Stock, Qty 20+

0

6

Scag 481156

Seat With Adjuster Rails

$865.99

$

Usually ships in 2-12 days

0

7

Scag 421976

Plate, Seat Mount

$55.99

$

Usually ships in 2-12 days

0

8

Scag 04003-11

Carriage Bolt, 3/8-16 x 1-1/4

$0.99

$

In Stock, Qty 7

0

9

Scag 04050-05

Retaining Ring - 1.125 Ext

$0.99

$

In Stock, Qty 20+

0

10

Scag 48100-02

Bushing, Oilite - 1-1/8 ID

$3.99

$

Usually ships in 2-12 days

0

11

Scag 46870

Frame, Steering

$

$

Not available

12

Scag 04001-83

Bolt, Hex Head, 7/16-14 x 3-1/2

$2.49

$

In Stock, only 1 left!

0

13

Scag 45606

Pedal, Foot Interlock

$145.99

$

Usually ships in 2-12 days

0

14

Scag 481056

Spring, Foot Interlock Switch

$30.99

$

Usually ships in 2-12 days

0

15

Scag 45698

Pivot, Rear Yoke

$693.99

$

Usually ships in 2-12 days

0

16

Scag 481154

Connector Link, #50 Chain

$3.49

$

Usually ships in 2-12 days

0

17

Scag 43329

Anchor Bolt, Chain

$36.99

$

Usually ships in 2-12 days

0

18

Scag 04020-12

Nut, Jam, 3/8-16

$0.99

$

In Stock, only 3 left!

0

19

Scag 45794

Yoke, Rear

$

$

Not available

20

Scag 04021-13

Hex Locknut, Elastic Stop, 5/8-11

$1.49

$

In Stock, Qty 11

0

21

Scag 43020-05

Spacer, Rear Wheel

$15.99

$

Usually ships in 2-12 days

0

22

Scag 481345

Rear Wheel Assembly

Note: Includes 23-29

$334.99

$

Usually ships in 2-12 days

0

23

Scag 48005-06

Seal, Grease
(Superseded to 481897)

$9.49

$

In Stock, only 3 left!

0

24

Scag 48005-05

Bearing Cone
(Superseded to 481896)

$22.99

$

In Stock, only 3 left!

0

25

Scag 48005-04

Bearing Cup
(Superseded to 481895)

$19.99

$

Usually ships in 2-12 days

0

26

Scag 48114-06

Grease Fitting

$3.99

$

Usually ships in 2-12 days

0

27

Scag 48005-03

Rim
(Superseded to 481894)

Note: Includes 23, 24, 25 & 26

$312.99

$

In Stock, only 1 left!

0

28

Scag 481345-02

Tire

$

$

Not available

29

Scag 43398

Sleeve, Rear Tire

$64.99

$

Usually ships in 2-12 days

0

30

Scag 43020-06

Spacer, Rear Wheel

$18.99

$

Usually ships in 2-12 days

0

31

Scag 04001-91

Bolt, Hex Head, 7/16-14 x 2-1/2

$1.49

$

Usually ships in 2-12 days

0

32

Scag 04001-115

Bolt, Hex Head, 5/8-11 x 11-1/4

$

$

Currently unavailable

33

Scag 481476

Switch, Foot Interlock

$58.99

$

In Stock, only 1 left!

0

34

Scag 04021-08

Hex Locknut, Elastic Stop, 1/4-20

$0.99

$

In Stock, Qty 10

0

35

Scag 04017-17

Serr Fl. Hex Head Capscrew, 5/16-18 x 1.00

$0.99

$

Usually ships in 2-12 days

0

36

Scag 04010-17

Screw, Flat , #10-32 x 3/4

$0.99

$

Usually ships in 2-12 days

0

37

Scag 45699

Footplate, LH

$66.99

$

Usually ships in 2-12 days

0

38

Scag 04019-03

Serr. Fl. Hex Nut, 5/16-18

$0.99

$

In Stock, Qty 16

0

39

Scag 481152

Chain, Steering - #50

$36.99

$

Usually ships in 2-12 days

0

40

Scag 45696

Shaft, Steering

$

$

Not available

41

Scag 48100-01

Bushing, Bronze - #77 ID

$8.99

$

Usually ships in 2-12 days

0

42

Scag 04003-18

Carriage Bolt, 1/2-13 x 1-3/4

$1.99

$

Usually ships in 2-12 days

0

43

Scag 421784

Pad, Reinforcement

$17.99

$

Usually ships in 2-12 days

0

44

Scag 04019-06

Serr. Fl. Hex Nut, 1/2-13

$0.99

$

In Stock, Qty 20+

0

45

Scag 45502

Foot Pedal

$123.99

$

Usually ships in 2-12 days

0

46

Scag 48114-04

Grease Fitting

$1.49

$

In Stock, Qty 20+

0

47

Scag 46880

Footplate, RH

$

$

Not available

48

Scag 48100-06

Bushing, Oilite - 3/4 ID

$1.49

$

In Stock, Qty 9

0

49

Scag 45506

Foot Pedal Arm

$45.99

$

Usually ships in 2-12 days

0

50

Scag 04065-01

Pin, Drive Lock, 3/16 x 1-1/4

$2.49

$

Usually ships in 2-12 days

0

51

Scag 04019-04

Serr. Fl. Hex Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

52

Scag 42366

Reinforcement, Spring

$50.99

$

Usually ships in 2-12 days

0

53

Scag 42026

Spring, Seat Support

$73.99

$

Usually ships in 2-12 days

0

54

Scag 04021-11

Hex Locknut, Elastic Stop, 7/16-14

$0.99

$

In Stock, Qty 9

0

55

Scag 04003-12

Carriage Bolt, 5/16-18 x 3/4

$0.99

$

In Stock, Qty 15

0

56

Scag 421988

Retainer, Bolt

$19.99

$

Usually ships in 2-12 days

0

57

Scag 04050-03

Retaining Ring, 7/8 Ext

$0.99

$

In Stock, Qty 5

0

58

Scag 421755

Guide, Top Chain

$78.99

$

Usually ships in 2-12 days

0

59

Scag 421757

Divider, Chain Spacer

$

$

Not available

60

Scag 481480

Arm rest Assembly

$

$

Not available

61

Scag 481158

Track Set, Seat

$198.99

$

Usually ships in 2-12 days

0
