Master Garden - Husqvarna Walk-Behind Mower (2001-01) HANDLE & CONTROLS Parts Diagram

Walk-Behind Mower

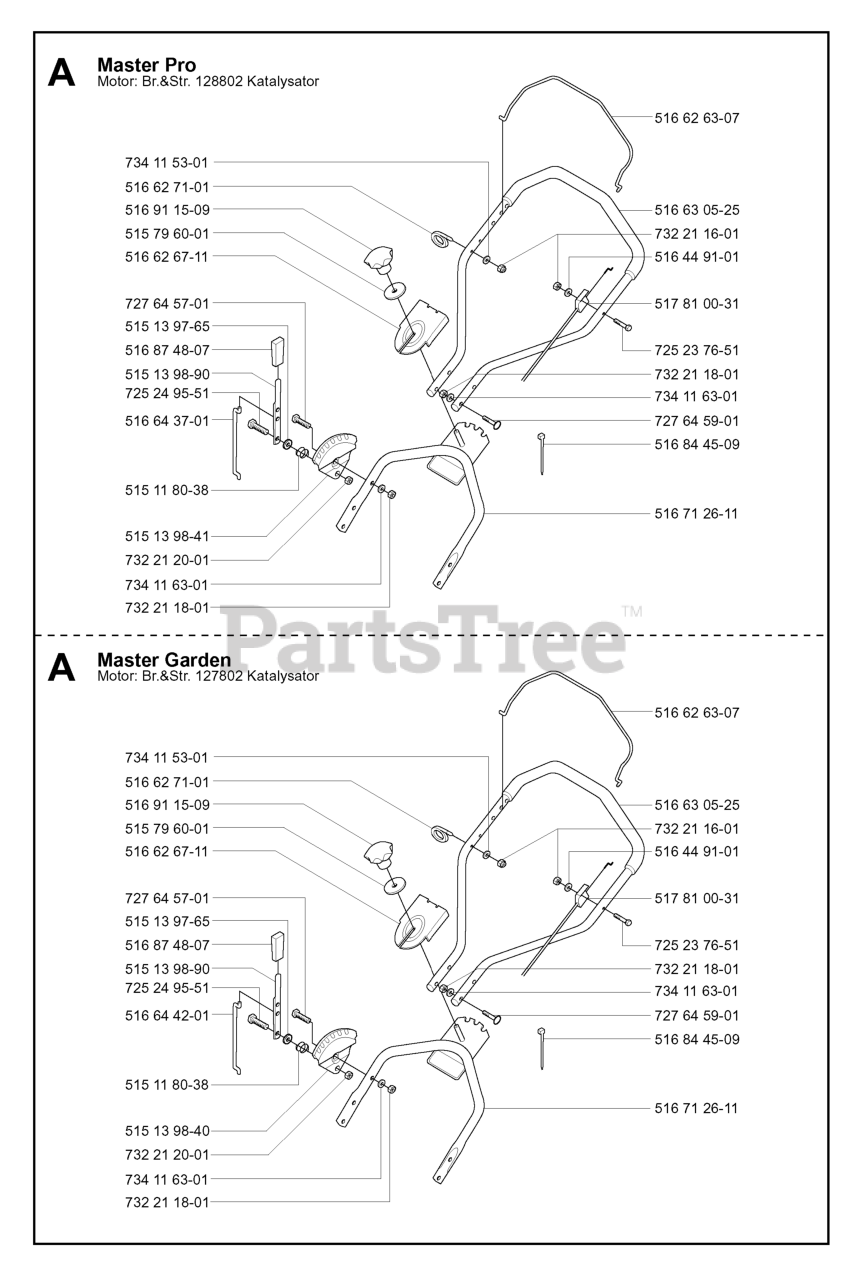

HANDLE & CONTROLS Parts Diagram

  • Title

516 84 45-09

Husqvarna 516844509

Tie-Wrap

$

$

Not available

516 71 26-11

Husqvarna 516712611

HANDLE

$

$

Not available

515 13 98-90

Husqvarna 515139890

CLUTCH ARM
(Superseded to 13989011)

$

$

Not available

727 64 57-01

Husqvarna 727645701

SCREW

$

$

Not available

734 11 63-01

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

516 62 67-11

Husqvarna 516626711

PLATE

$

$

Not available

516 91 15-09

Husqvarna 516911509

KNOB

$

$

Not available

732 21 18-01

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

516 64 42-01

Husqvarna 516644201

ROD

$

$

Not available

516 62 63-07

Husqvarna 516626307

LOOP

$

$

Not available

516 44 91-01

Husqvarna 516449101

WASHER

$

$

Not available

732 21 20-01

Husqvarna 732212001

NUT

$5.99

$

Usually ships in 3-10 days

0

516 62 71-01

Husqvarna 516627101

CABLE GUIDE
(Superseded to 513076300)

$

$

Not available

515 79 60-01

Husqvarna 515796001

WASHER

$6.99

$

Usually ships in 3-10 days

0

516 63 05-25

Husqvarna 516630525

NEEDS DESCRIPTION

$

$

Currently unavailable

515 13 98-40

Husqvarna 515139840

INDEXPLATE
(Superseded to 516805800)

$

$

Not available

727 64 59-01

Husqvarna 727645901

SCREW

$

$

Not available

732 21 16-01

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

515 13 97-65

Husqvarna 515139765

Washer

$

$

Not available

725 23 76-51

Husqvarna 725237651

BOLT FLANGE

$7.49

$

Usually ships in 3-10 days

0

517 81 00-31

Husqvarna 517810031

WIRE

$

$

Not available

734 11 53-01

Husqvarna 734115301

Washer

$

$

Not available

516 87 48-07

Husqvarna 516874807

HANDLE

$

$

Not available

725 24 95-51

Husqvarna 725249551

Screw

$

$

Not available

515 11 80-38

Husqvarna 515118038

PRESSURE SPRING

$

$

Not available
