Master Garden - Husqvarna Walk-Behind Mower (Original) CHASSIS / FRAME 2 Parts Diagram

Walk-Behind Mower

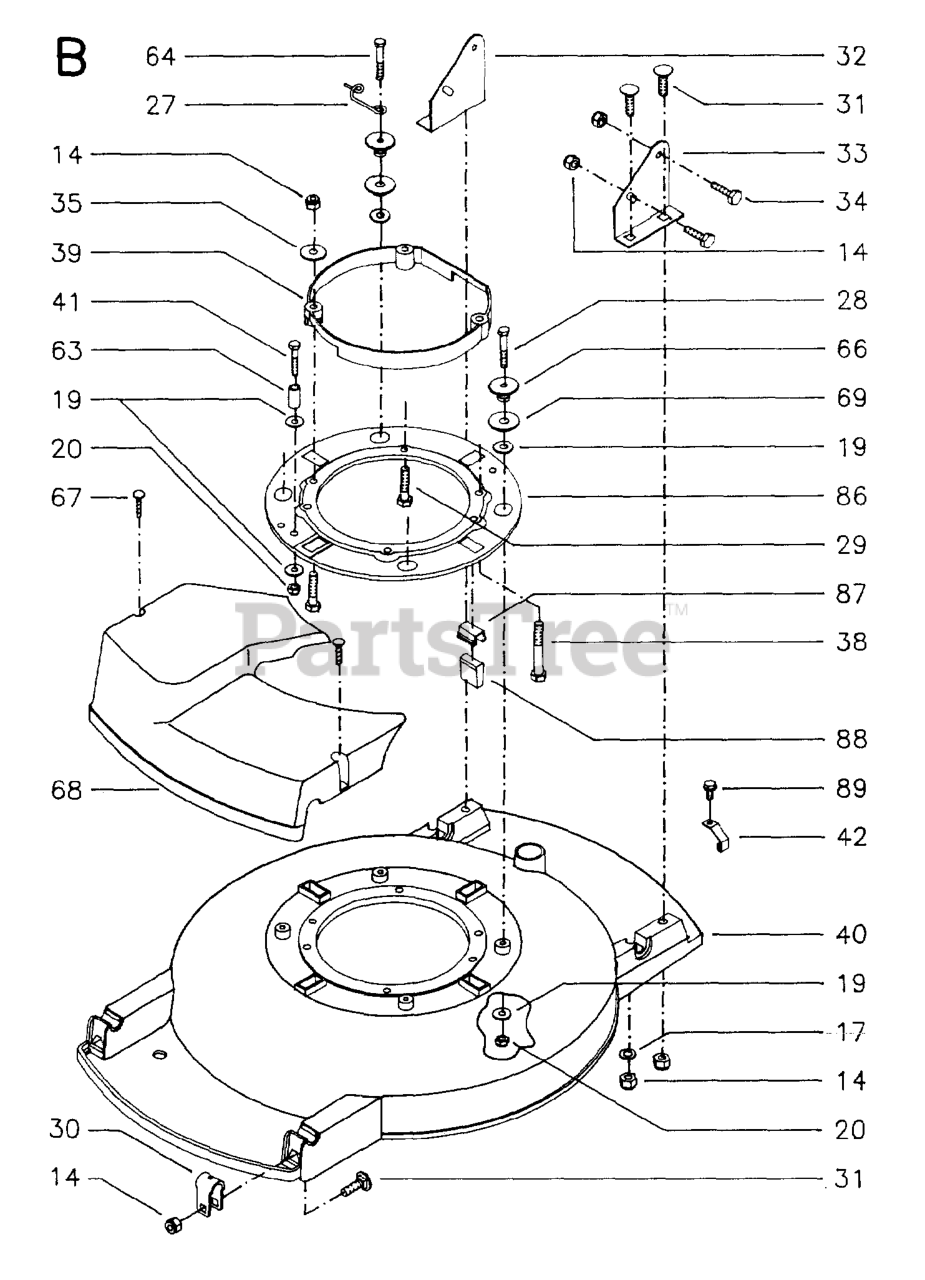

CHASSIS / FRAME 2 Parts Diagram

  • Title

89

Husqvarna 516928301

NEEDS DESCRIPTION

$

$

Currently unavailable

87

Husqvarna 516920400

CAP

$

$

Not available

64

Husqvarna 725237951

SCREW

$7.99

$

In Stock, only 1 left!

0

66

Husqvarna 516619202

NEEDS DESCRIPTION

$

$

Currently unavailable

42

Husqvarna 516612601

NEEDS DESCRIPTION

$

$

Currently unavailable

14

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

32

Husqvarna 516434601

HANDLE BRACKET

$

$

Not available

30

Husqvarna 515139855

BEARING HOLDER

$

$

Not available

28

Husqvarna 725237851

SCREW

$6.49

$

In Stock, only 2 left!

0

39

Husqvarna 516931523

RING

$

$

Not available

20

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

67

Husqvarna 729542201

SCREW

$

$

Not available

41

Husqvarna 725237651

BOLT FLANGE

$7.49

$

In Stock, only 1 left!

0

68

Husqvarna 517831607

NEEDS DESCRIPTION

$

$

Currently unavailable

35

Husqvarna 734116441

SPACER

$6.99

$

Usually ships in 3-10 days

0

69

Husqvarna 516920300

RUBBER PIECE
(Superseded to 516939800)

$

$

Not available

38

Husqvarna 515700890

SCREW

$

$

Not available

33

Husqvarna 516434701

HANDLE BRACKET

$

$

Not available

19

Husqvarna 516449101

WASHER

$

$

Not available

27

Husqvarna 516511501

SPRING

$

$

Not available

34

Husqvarna 725244951

BOLT - M8X16

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 725246351

SCREW

$5.99

$

In Stock, only 4 left!

0

40

Husqvarna 516870007

NEEDS DESCRIPTION

$

$

Currently unavailable

86

Husqvarna 516493711

ADAPTER

$

$

Not available

31

Husqvarna 727645501

SCREW

$

$

Not available

88

Husqvarna 516925600

DAMPER
(Superseded to 516940200)

$

$

Not available

17

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

63

Husqvarna 516495301

SPACER

$

$

Not available
