Master Garden - Husqvarna Walk-Behind Mower (Original) HANDLE & CONTROLS 4 Parts Diagram

Walk-Behind Mower

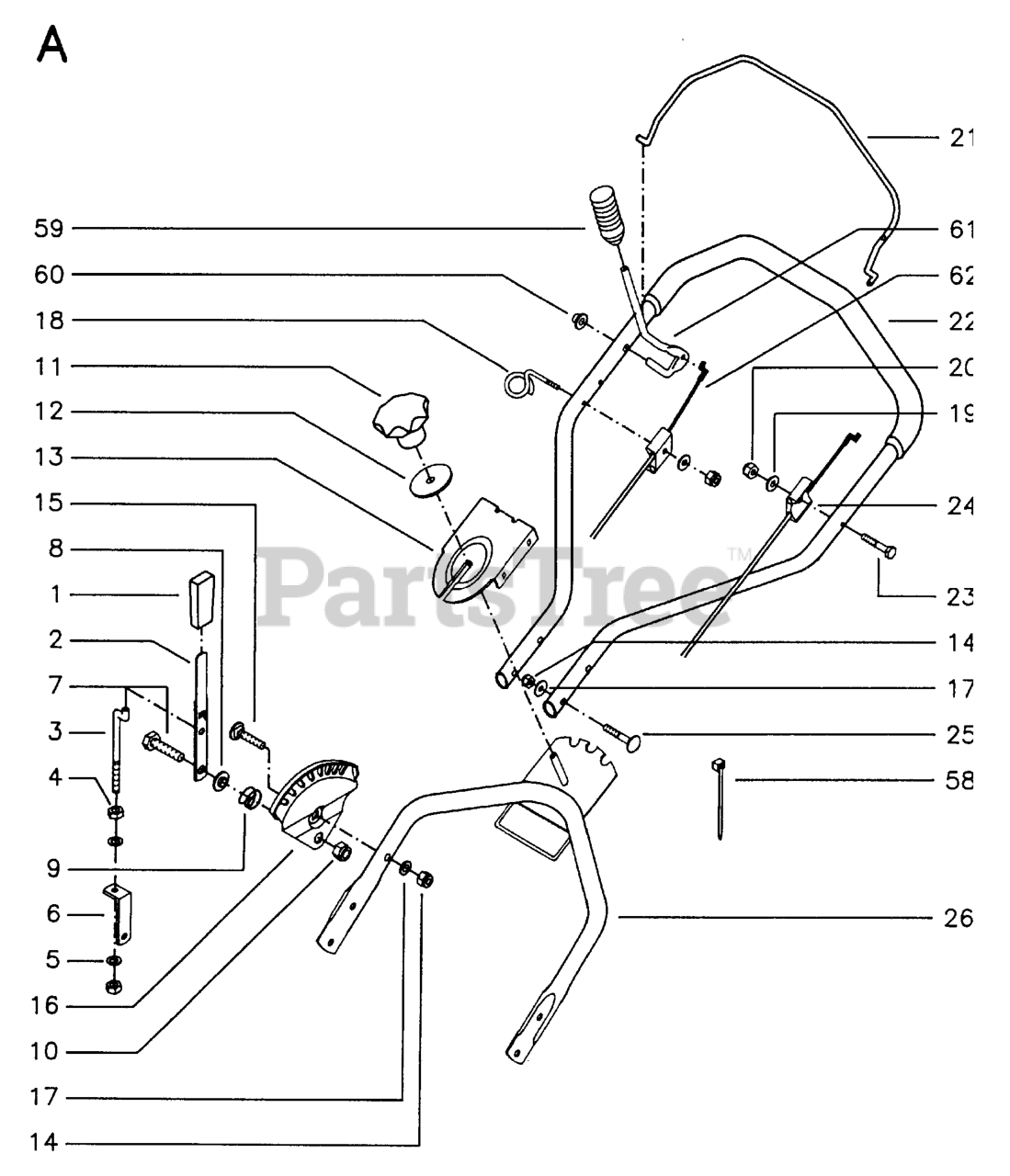

HANDLE & CONTROLS 4 Parts Diagram

  • Title

6

Husqvarna 516407701

BRACKET

$

$

Not available

61

Husqvarna 516629501

ARM

$

$

Not available

15

Husqvarna 727645701

SCREW

$

$

Not available

26

Husqvarna 516712611

HANDLE

$

$

Not available

4

Husqvarna 731231801

NUT
(Superseded to 695008078)

$

$

Not available

12

Husqvarna 515796001

WASHER

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 516911509

KNOB

$

$

Not available

7

Husqvarna 725249551

Screw

$

$

Not available

23

Husqvarna 725237651

BOLT FLANGE

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 515118038

PRESSURE SPRING

$

$

Not available

24

Husqvarna 517810031

WIRE

$

$

Not available

62

Husqvarna 517810035

NEEDS DESCRIPTION

$

$

Currently unavailable

19

Husqvarna 516449101

WASHER

$

$

Not available

13

Husqvarna 516626711

PLATE

$

$

Not available

1

Husqvarna 516874807

HANDLE

$

$

Not available

5

Husqvarna 735216450

STAR WASHER

$

$

Not available

17

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 515139765

Washer

$

$

Not available

10

Husqvarna 732212001

NUT

$5.99

$

Usually ships in 3-10 days

0

14

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

59

Husqvarna 516872407

NEEDS DESCRIPTION

$

$

Currently unavailable

60

Husqvarna 516911300

Nut

$

$

Not available

2

Husqvarna 515139890

CLUTCH ARM
(Superseded to 13989011)

$

$

Not available

3

Husqvarna 516431501

ROD

$

$

Not available

21

Husqvarna 516626307

LOOP

$

$

Not available

58

Husqvarna 516844509

Tie-Wrap

$

$

Not available

25

Husqvarna 727645901

SCREW

$

$

Not available

20

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

$4.99

$

In Stock, Qty 12

0

22

Husqvarna 516630525

NEEDS DESCRIPTION

$

$

Currently unavailable

18

Husqvarna 516623301

GUIDE

$

$

Not available

16

Husqvarna 515139840

INDEXPLATE
(Superseded to 516805800)

$

$

Not available
