Master Pro - Husqvarna Walk-Behind Mower (1998-05) FRAME Parts Diagram

Walk-Behind Mower

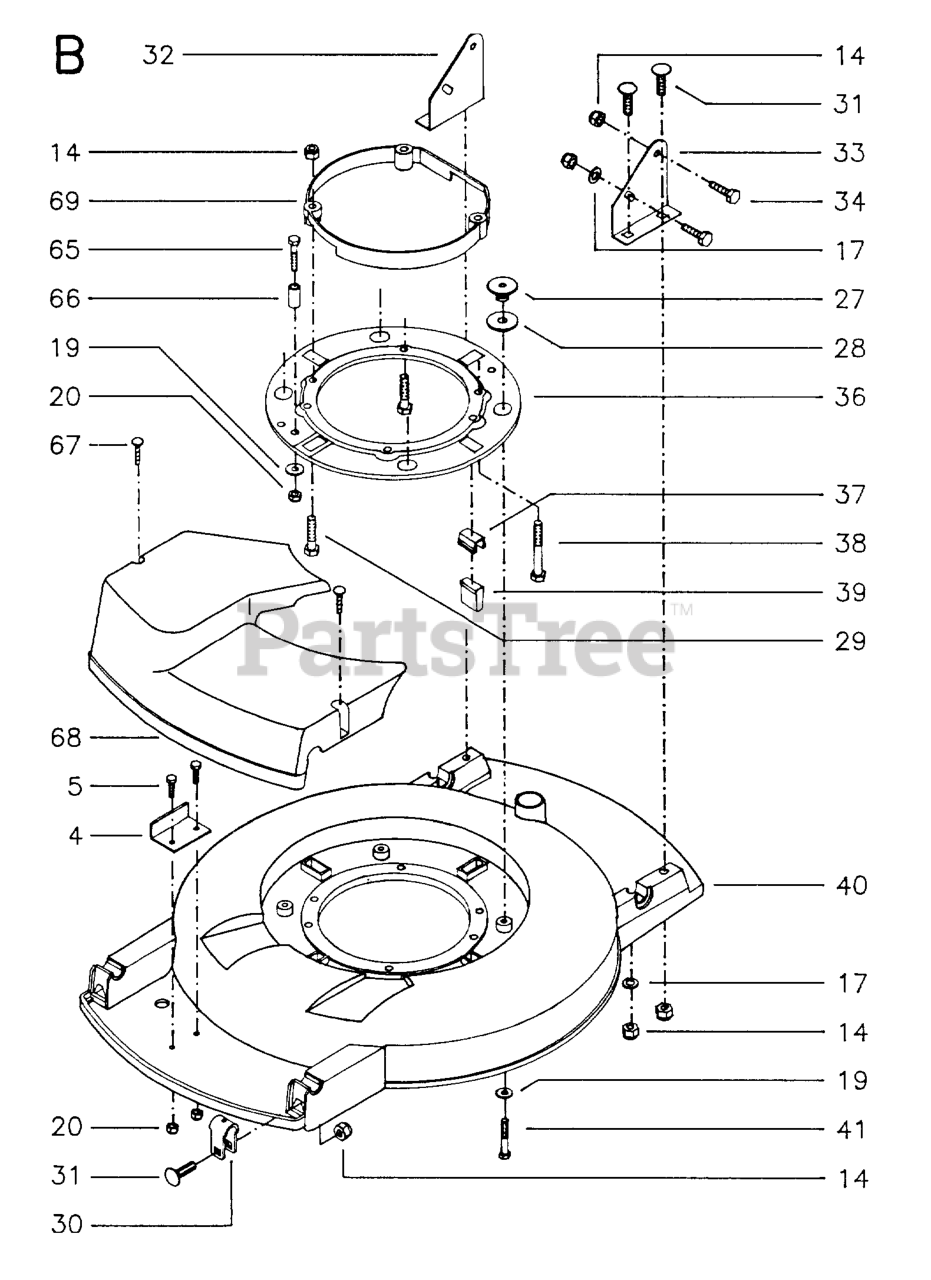

FRAME Parts Diagram

  • Title

4

Husqvarna 516643401

PLATE

$

$

Not available

67

Husqvarna 729542201

SCREW

$

$

Not available

28

Husqvarna 516939800

WASHER

$

$

Not available

65

Husqvarna 725237651

BOLT FLANGE

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

38

Husqvarna 515700890

SCREW

$

$

Not available

5

Husqvarna 725236851

Screw

$

$

Not available

69

Husqvarna 516931523

RING

$

$

Not available

68

Husqvarna 517835507

COVER

$

$

Not available

40

Husqvarna 517835207

COVER

$

$

Not available

39

Husqvarna 516940200

DAMPER

$

$

Not available

32

Husqvarna 516434601

HANDLE BRACKET

$

$

Not available

19

Husqvarna 516449101

WASHER

$

$

Not available

17

Husqvarna 734116301

WASHER - 15X7.3X1.6
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 516920400

CAP

$

$

Not available

66

Husqvarna 516495301

SPACER

$

$

Not available

27

Husqvarna 516644002

WASHER

$

$

Not available

30

Husqvarna 515139855

BEARING HOLDER

$

$

Not available

33

Husqvarna 516434701

HANDLE BRACKET

$

$

Not available

31

Husqvarna 727645501

SCREW

$

$

Not available

14

Husqvarna 732211801

LOCKNUT M8

$5.99

$

In Stock, Qty 13

0

41

Husqvarna 725237456

SCREW

$

$

Not available

36

Husqvarna 516493711

ADAPTER

$

$

Not available

29

Husqvarna 725246351

SCREW

$5.99

$

In Stock, only 4 left!

0

34

Husqvarna 725244951

BOLT - M8X16

$4.99

$

In Stock, only 2 left!

0
