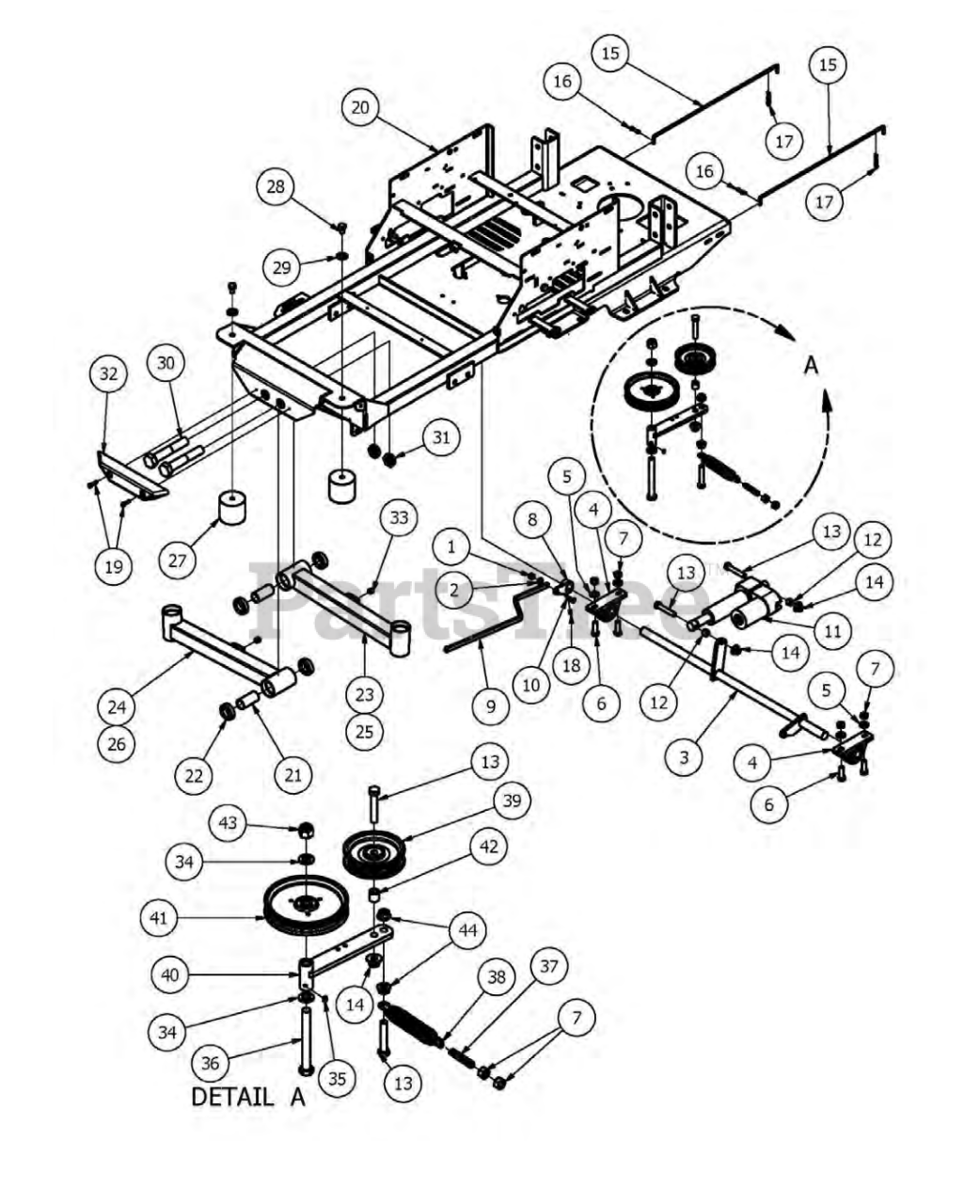

Maverick - Bad Boy Zero-Turn Mower (2016) Frame & Idler Arm Parts Diagram

Zero-Turn Mower

Frame & Idler Arm Parts Diagram

  • Title

1

Bad Boy 013-8049-00

5/16-18 Nylon Flange Nut

$0.99

$

Usually ships in 4-7 days

0

2

Bad Boy 019-6042-00

.360 ID Plastic Washer

$0.99

$

Usually ships in 4-7 days

0

3

Bad Boy 028-4020-00

Actuator Bar-ZT

$70.99

$

Usually ships in 4-7 days

0

4

Bad Boy 017-7008-00

pillow block 2bolt sealmaster

$22.99

$

Usually ships in 4-7 days

0

5

Bad Boy 019-5007-00

1/2" Lock Washer Zinc

$0.99

$

Usually ships in 4-7 days

0

6

Bad Boy 018-5006-00

1/2" x 1 1/2" Hex Bolt

$1.49

$

Usually ships in 4-7 days

0

7

Bad Boy 013-7018-00

1/2" Hex Nut

$0.99

$

In Stock, Qty 6

0

8

Bad Boy 031-7000-00

Height Indicator Lever

$

$

Not available

9

Bad Boy 028-2502-00

Height Indicator Bar

$24.99

$

Usually ships in 0 days

0

10

Bad Boy 018-2007-00

5/16" x 1" Bolt

$0.99

$

In Stock, only 2 left!

0

11

Bad Boy 035-7033-00

Actuator

$465.99

$

Usually ships in 4-7 days

0

12

Bad Boy 025-7036-00

1/2 x 1/2 Spacer

$4.99

$

In Stock, only 2 left!

0

13

Bad Boy 018-6036-00

1/2" x 2 3/4" Hex Bolt

$1.99

$

In Stock, only 2 left!

0

14

Bad Boy 013-8050-00

1/2-13 Nylon Flange Nut

$1.99

$

In Stock, Qty 20+

0

15

Bad Boy 031-0060-00

ZT Neutral level rod 2011

$15.99

$

Usually ships in 4-7 days

0

16

Bad Boy 044-2004-00

Bow Pin

$0.99

$

Usually ships in 4-7 days

0

17

Bad Boy 044-2008-00

Neutral Rod Clip

$1.49

$

In Stock, only 2 left!

0

18

Bad Boy 030-0050-00

5/16 Set Screw

$1.99

$

In Stock, Qty 20+

0

19

Bad Boy 030-7040-00

1/4 x 1 Hex Head Tek screw

$1.49

$

Usually ships in 4-7 days

0

20

Bad Boy 070-5490-00

2016 Maverick Frame

$

$

Currently unavailable

21

Bad Boy 025-0003-00

2016 Front Bearing Spacer

$14.99

$

In Stock, only 2 left!

0

22

Bad Boy 010-1050-00

Caster Bearing 2016 - 1641 Bearing

$19.99

$

In Stock, Qty 10

0

23

Bad Boy 250-2335-00

Front Arm Assembly - Long (left)

$60.99

$

Usually ships in 0 days

0

24

Bad Boy 250-2330-00

Front Arm Assembly - Long (Right)

$60.99

$

Usually ships in 0 days

0

25

Bad Boy 250-2325-00

Front Arm Assembly - Short (left) (48" Deck Only)

$

$

Not available

26

Bad Boy 250-2320-00

Front Arm Assembly - Short (Right) (48" Deck Only)

$

$

Not available

27

Bad Boy 032-9002-00

Vibration Mount- Red Dot

$75.99

$

In Stock, only 3 left!

0

28

Bad Boy 018-1055-00

1/2" x 3/4" Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

29

Bad Boy 019-5702-00

1/2" Washer (Grade 8)

$0.99

$

In Stock, only 2 left!

0

30

Bad Boy 018-0026-00

1-14 x 5.5 Hex Bolt Grade 8 Zinc Yellow

$14.99

$

In Stock, only 2 left!

0

31

Bad Boy 013-9004-00

1" Fine Thread 1/2 Nylock Nut

$3.99

$

In Stock, only 4 left!

0

32

Bad Boy 029-7040-00

Front Bumper

$33.99

$

Usually ships in 4-7 days

0

33

Bad Boy 014-3010-00

5/8 Round Insert

$1.99

$

Usually ships in 4-7 days

0

34

Bad Boy 019-6017-00

.630 ID Plastic Washer

$0.99

$

In Stock, only 4 left!

0

35

Bad Boy 024-6034-00

1/4" Press in Grease Fitting

$0.99

$

In Stock, only 2 left!

0

36

Bad Boy 018-6016-00

5/8" x 5 1/2 Hex Bolt

$3.49

$

Usually ships in 4-7 days

0

37

Bad Boy 018-2004-00

All Thread-Pump Idler Tensioner

$13.99

$

In Stock, only 4 left!

0

38

Bad Boy 034-2009-00

2009 Deck/Pump Idler Spring

$19.99

$

In Stock, Qty 15

0

39

Bad Boy 033-6001-00

4 3/4" Idler Pulley

$33.99

$

In Stock, Qty 20+

0

40

Bad Boy 039-6945-00

Deck Idler

$43.99

$

In Stock, only 2 left!

0

41

Bad Boy 033-8000-00

5-3/4 Idler Pulley 5/8 Bore

$37.99

$

In Stock, only 2 left!

0

42

Bad Boy 025-5203-00

Spacer 3/4 OD x 1/2 ID x 3/4 Length

$3.49

$

In Stock, Qty 7

0

43

Bad Boy 013-7021-00

5/8 Std NC Nylock Nut

$1.49

$

In Stock, only 2 left!

0

44

Bad Boy 013-5300-00

1/2" Flange Nut

$0.99

$

In Stock, Qty 6

0
