MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) 42 INCH TRENCHER ROCK BOOM AND MOUNTING (30 INCH DIGGING DEPTH) Parts Diagram

Maxi Sneaker Series E Trencher

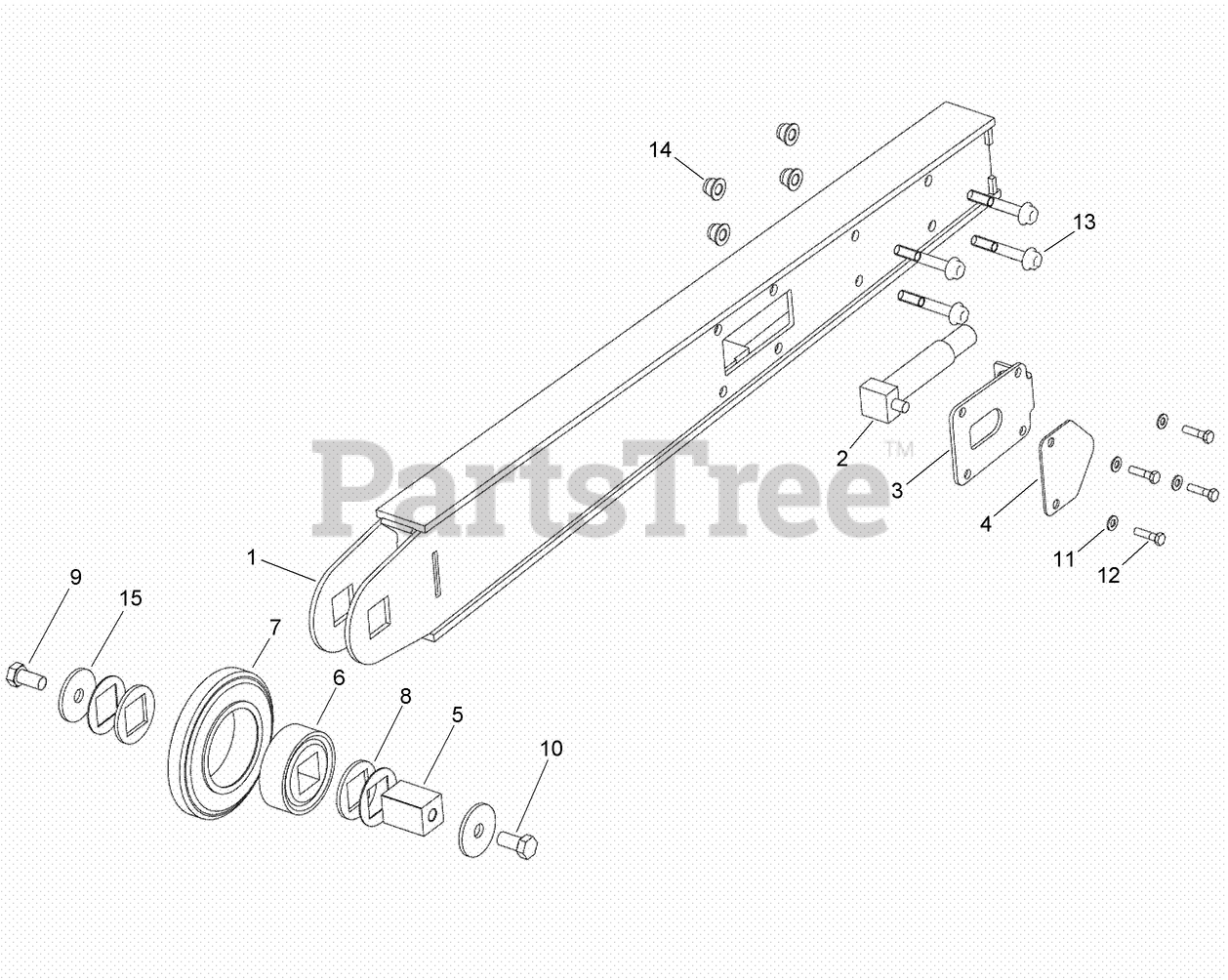

42 INCH TRENCHER ROCK BOOM AND MOUNTING (30 INCH DIGGING DEPTH) Parts Diagram

  • Title

Toro AU108164

BOOM ASSEMBLY - 42in Rock

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU108165

BOOM - 42in Rock

$

$

Not available

2

Toro AUH563254

PISTON-ADJ
(Superseded to AUH563254-03)

$175.99

$

Usually ships in 3-6 days

0

3

Toro AU107322

PLATE - Piston Keeper
(Superseded to AU107322-03)

$307.99

$

Usually ships in 3-6 days

0

4

Toro AU103950

PLATE - Cover

$64.99

$

Usually ships in 3-6 days

0

5

Toro AU107321

MOUNT-SHAFT, IDLER
(Superseded to AU107321-03)

$310.99

$

Usually ships in 3-6 days

0

6

Toro AUH747444

BEARING

$104.99

$

Usually ships in 3-6 days

0

7

Toro AU101805

WHEEL-BOOM END, IDLER
(Superseded to 127-1070)

$1282.99

$

Usually ships in 3-6 days

0

8

Toro AU100700

WASHER

$14.99

$

Usually ships in 3-6 days

0

9

Toro AU496-81025

WASHER

$27.99

$

Usually ships in 3-6 days

0

10

Toro AU426-1020

BOLT - Hex Hd .625 x 1.25 GR5 ZND

$2.49

$

Usually ships in 3-6 days

0

11

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, Qty 20+

0

13

Toro AU100353

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

14

Toro AU100528

NUT-HHF, LOCK

$3.49

$

In Stock, Qty 15

0

15

Toro AUH117598

WASHER

$28.99

$

Usually ships in 3-6 days

0
