MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) ATTACHMENT LIFT SELECTOR VALVE ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

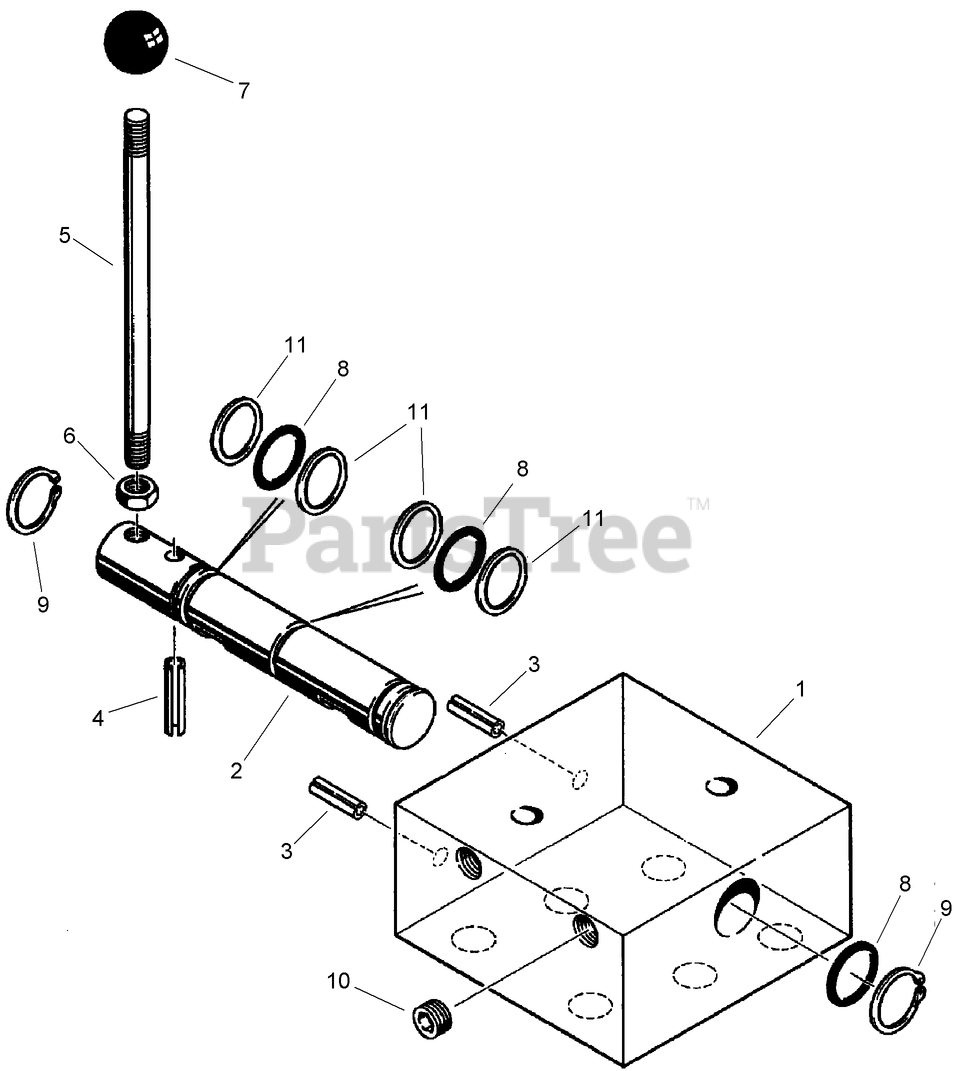

ATTACHMENT LIFT SELECTOR VALVE ASSEMBLY Parts Diagram

  • Title

Toro AUH672689

HYD CONTROL VALVE ASM
(Superseded to 127-6557)

Note: Not illustrated

$1337.99

$

Usually ships in 3-6 days

0

1

HOUSING - Valve

Note: Not serviced separately

$

$

Not available

2

SPOOL - valve

Note: Not serviced separately

$

$

Not available

3

Toro AU38-11616

PIN - Roll, 1/4 x 1 inch

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU38-11624

PIN-SPRING, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

5

Toro AUA161914

HANDLE - Valve

$53.99

$

Usually ships in 3-6 days

0

6

Toro AU425-155

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

7

Toro AUH249839

KNOB - Handle

$32.99

$

Usually ships in 3-6 days

0

8

Toro AU238-5115

O-RING - 11/16 ID x 7/8 inch Wide, Spool
(Superseded to AU129979)

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU100-1187

RING - External Retaining, No. 87, Spool

$

$

Not available

10

Toro AU221-841

PLUG
(Superseded to AU217-504)

$0.99

$

Usually ships in 3-6 days

0

11

Toro AU223614A1

RING - Backup

$6.99

$

Usually ships in 3-6 days

0
