MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) AXLE ASSEMBLY FRONT AND REAR Parts Diagram

Maxi Sneaker Series E Trencher

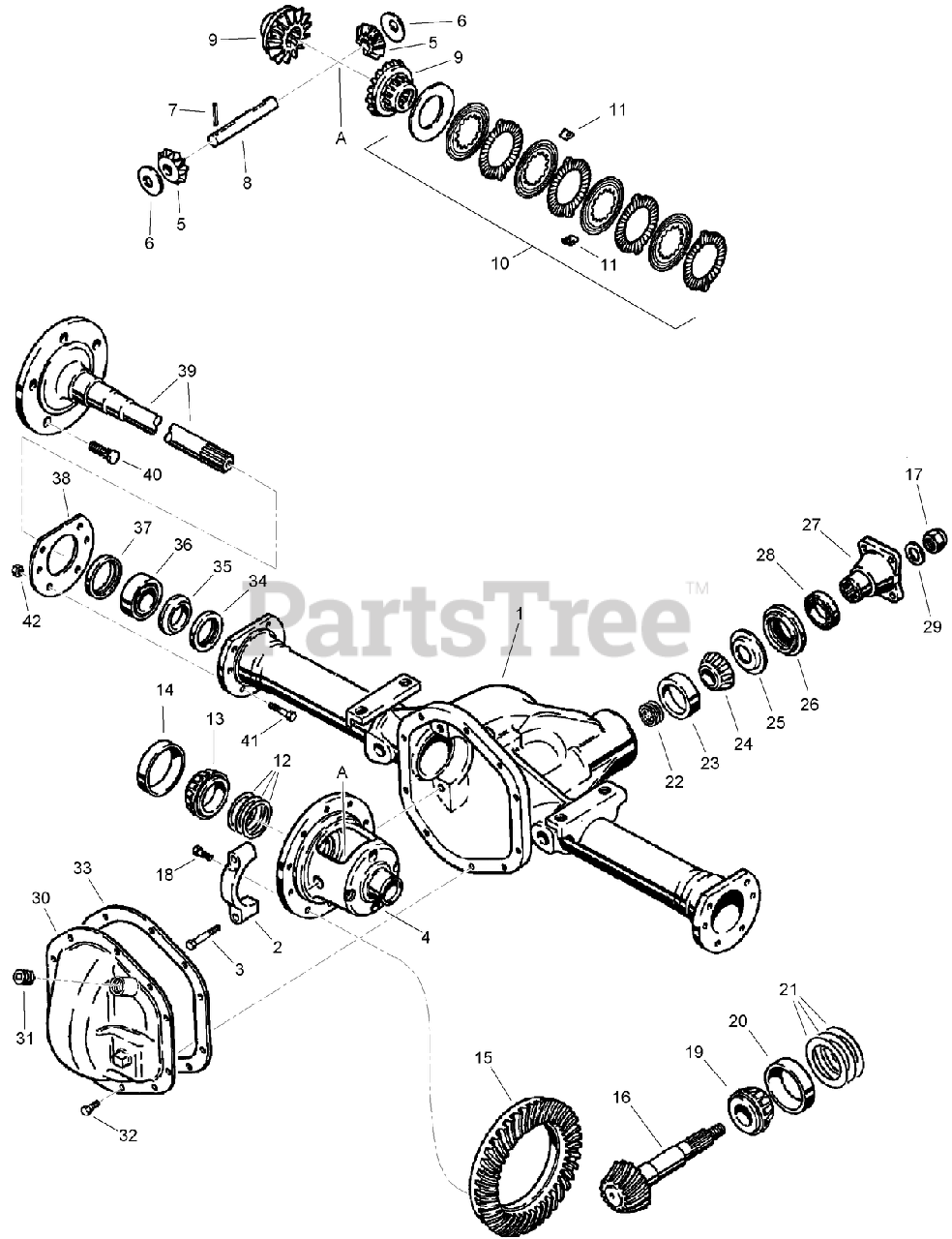

AXLE ASSEMBLY FRONT AND REAR Parts Diagram

  • Title

Toro AU110858A1

AXLE ASSEMBLY - Front And Rear
(Superseded to AU110858A1-03)

Note: Not illustrated

$11722.99

$

Usually ships in 3-6 days

0

1

HOUSING - Axle

Note: Not serviced separately

$

$

Not available

2

CAP - Differential Bearing

Note: Not serviced separately

$

$

Not available

3

Toro AU426-836

BOLT-Hex Hd 0.500 x 2.25 GR8 ZND
(Superseded to 60-9870)

$17.99

$

Usually ships in 3-6 days

0

Toro AU100862A1

CASE ASM

Note: Not illustrated

$2027.99

$

Usually ships in 3-6 days

0

4

Toro AU100863A1

CASE

$510.99

$

Usually ships in 3-6 days

0

5

GEAR - Pinion

Note: Not serviced separately

$

$

Not available

6

Toro AU127890R1

WASHER - Thrust, Pinion

$4.49

$

Usually ships in 3-6 days

0

7

Toro AU38-11624

PIN-SPRING, SLOTTED

$0.99

$

Usually ships in 3-6 days

0

8

SHAFT - Pinion

Note: Not serviced separately

$

$

Not available

9

GEAR - Side, Axle Shaft

Note: Not serviced separately

$

$

Not available

10

Toro AUH572370

DIFFERENTIAL DISC KIT (MATCHED SET)

$566.99

$

Usually ships in 3-6 days

0

11

Toro AUH226753

CLIP

$3.49

$

Usually ships in 3-6 days

0

12

Toro AUH198259

SHIM

$3.99

$

Usually ships in 3-6 days

0

12

Toro AUH198267

SHIM

$3.99

$

Usually ships in 3-6 days

0

12

Toro AUH198275

SHIM

$2.99

$

Usually ships in 3-6 days

0

12

Toro AUH198283

SHIM

$

$

Not available

13

Toro AU300426R91

BEARING-TAPER

$88.99

$

Usually ships in 3-6 days

0

14

Toro AU128237R1

CUP - Tapered Roller Bearing

$50.99

$

Usually ships in 3-6 days

0

Toro AU104364

GEAR AND PINION - Axle, Ring Gear and Pinion Shaft

Note: Not illustrated

$

$

Currently unavailable

15

GEAR - Ring, Differential Case

Note: Not serviced separately

$

$

Not available

16

SHAFT - Pinion, Input

Note: Not serviced separately

$

$

Not available

17

Toro AUH197566

NUT - Hex, Special, Yoke Retaining

$

$

Not available

18

Toro AU117383A1

BOLT

$49.99

$

Usually ships in 3-6 days

0

19

Toro AU128241R91

BEARING-TAPER

$90.99

$

Usually ships in 3-6 days

0

20

Toro AU128242R1

CUP-BEARING

$38.99

$

Usually ships in 3-6 days

0

21

Toro AUH198150

SHIM

$2.49

$

Usually ships in 3-6 days

0

21

Toro AUH198168

SHIM

$2.99

$

Usually ships in 3-6 days

0

21

Toro AUH198176

SHIM

$2.99

$

Usually ships in 3-6 days

0

22

Toro AUH198010

SHIM

$

$

Not available

22

Toro AUH198028

SHIM

$3.99

$

Usually ships in 3-6 days

0

22

Toro AUH198036

SHIM

$3.99

$

Usually ships in 3-6 days

0

22

Toro AUH198044

SHIM

$5.99

$

Usually ships in 3-6 days

0

23

Toro AU451495R1

CUP - Tapered Roller Bearing, Pinion Shaft, Outer

$87.99

$

Usually ships in 3-6 days

0

24

Toro AU128239R91

BEARING-TAPER

$72.99

$

Usually ships in 3-6 days

0

25

Toro AU220141R1

SLINGER - Oil, Pinion Shaft, Inner

$8.49

$

Usually ships in 3-6 days

0

26

Toro AUN8427

SEAL

$40.99

$

Usually ships in 3-6 days

0

27

Toro AUH197582

END-YOKE

$655.99

$

Usually ships in 3-6 days

0

28

Toro AUH196998

SLINGER

$29.99

$

Usually ships in 3-6 days

0

29

Toro AUH197574

WASHER

$2.99

$

Usually ships in 3-6 days

0

Toro AUN8428

COVER

Note: Not illustrated

$223.99

$

Usually ships in 3-6 days

0

30

COVER - Differential

Note: Not serviced separately

$

$

Not available

31

Toro AU221-887

PLUG - Square Socket 3/4 inch PT, Magnetic
(Superseded to AU221-659)

$26.99

$

Usually ships in 3-6 days

0

32

Toro AUH226555

BOLT

$2.49

$

Usually ships in 3-6 days

0

33

GASKET - Cover (service with M20704 gasket, see below)

Note: Not serviced separately

$

$

Not available

Toro AUH610709

KIT - Bearing and Seal

Note: Not illustrated

$

$

Not available

34

Toro AUH198093

SEAL

$35.99

$

Usually ships in 3-6 days

0

35

Toro AUN8429

RING - Retaining, Seal

$65.99

$

Usually ships in 3-6 days

0

36

Toro AUH599266

BEARING - Ball, Wheel

$

$

Not available

37

Toro AUH757518

SEAL - Oil, Axle Shaft, Outer

$45.99

$

Usually ships in 3-6 days

0

38

Toro AUH315127

RETAINER - Wheel Bearing

$81.99

$

Usually ships in 3-6 days

0

Toro AU139495A1

SHAFT ASSEMBLY - Axle

Note: Not illustrated

$

$

Not available

39

SHAFT - Axle

Note: Not serviced separately

$

$

Not available

40

Toro AUH171090

BOLT - Special, Wheel Retaining

$33.99

$

Usually ships in 3-6 days

0

41

Toro AUH263103

BOLT

$14.99

$

Usually ships in 3-6 days

0

42

Toro AU232-4616

NUT-HEX

$0.99

$

In Stock, Qty 8

0

Toro AUM20704

MAKER-GASKET

Note: Not illustrated

$

$

Not available

43

Toro AUH384453

BAFFLE-OIL

Note: Not illustrated

$

$

Not available
