Maxi Sneaker Series E Trencher

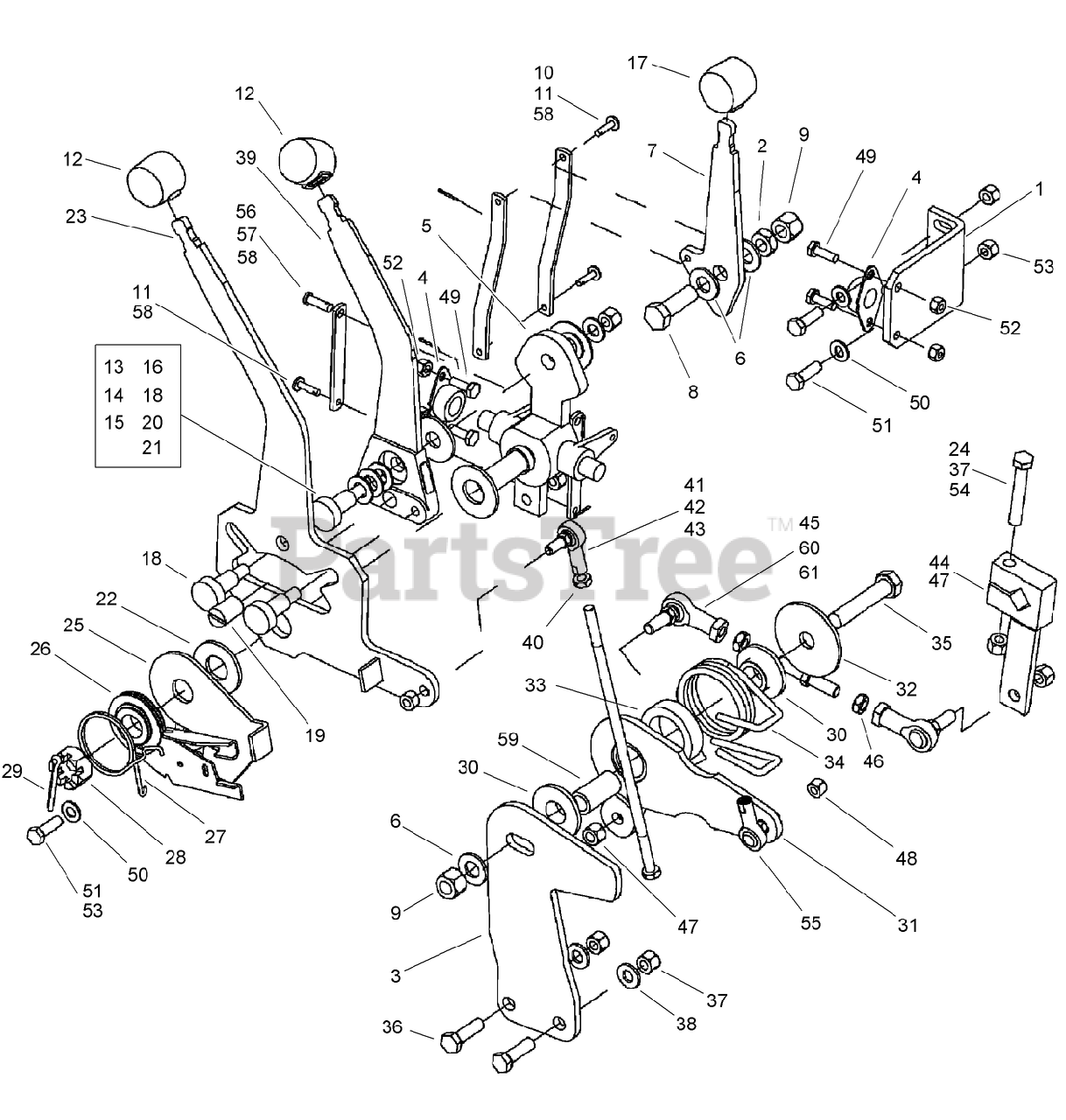

DIRECTIONAL CONTROLS Parts Diagram

  • Title

Toro AU105945

GROUND DRIVE CONTROLS REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH426163

ANGLE - Mounting

$

$

Currently unavailable

2

Toro AU425-148

NUT-JAM

$2.49

$

Usually ships in 3-6 days

0

3

Toro AU131966A2

PLATE-CENTERING

$57.99

$

Usually ships in 3-6 days

0

4

Toro AUH755785

BEARING

$19.99

$

Usually ships in 3-6 days

0

5

Toro AUH435855

PIVOT-CONTROL, STEERING

$420.99

$

Usually ships in 3-6 days

0

6

Toro AU495-11053

WASHER-0.531 x 1.062 x 0.092 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU105259

HANDLE - Plow

$

$

Currently unavailable

8

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

10

Toro AUH423046

LINK - Control Valve

$38.99

$

Usually ships in 3-6 days

0

11

Toro AUH44529

PIN-CLEVIS

$3.99

$

Usually ships in 3-6 days

0

12

Toro AUA177435

KNOB

$21.99

$

Usually ships in 3-6 days

0

13

Toro AUH429894

WASHER-FRICTION

$37.99

$

Usually ships in 3-6 days

0

14

Toro AUR14771

WASHER-BELLEVILLE

$10.99

$

Usually ships in 3-6 days

0

15

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU230-4216

NUT
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

17

Toro AUH438223

KNOB-GREEN

$

$

Not available

18

Toro AUH404822

BOLT - Shoulder
(Superseded to 1-603403)

$17.99

$

In Stock, only 2 left!

0

19

Toro AUH404731

BALL-PLUNGER

$100.99

$

Usually ships in 3-6 days

0

20

Toro AUH405035

RACE-THRUST

$8.49

$

Usually ships in 3-6 days

0

21

Toro AUH405043

BEARING-THRUST (NEEDLE)

$13.99

$

Usually ships in 3-6 days

0

22

Toro AUH433170

WASHER-SPACER

$1.99

$

Usually ships in 3-6 days

0

23

Toro AUH673413

PLATE - Handle

$

$

Not available

24

Toro AU110866A1

LEVER - Pump Control
(Superseded to AU110866A1-03)

$176.99

$

Usually ships in 3-6 days

0

25

Toro AUH436230

PLATE - Center

$149.99

$

Usually ships in 3-6 days

0

26

Toro AUH673263

NEUTRAL SWITCH MOUNTING ASM

$157.99

$

Usually ships in 3-6 days

0

27

Toro AUH436231

SPRING-CENTERING

$23.99

$

Usually ships in 3-6 days

0

28

Toro AU425-1212

NUT-SLOTTED, HEX

$3.49

$

Usually ships in 3-6 days

0

29

Toro AU432-1224

PIN - Cotter .188 x 1.50 in ZND

$

$

Not available

30

Toro AUD128616

BUSHING-INSERT, PLASTIC

$27.99

$

Usually ships in 3-6 days

0

31

Toro AU110795A1

PIVOT - Centering
(Superseded to AU110795A1-03)

$350.99

$

Usually ships in 3-6 days

0

32

Toro AU131967A1

WASHER-FLAT (SPECIAL)

$20.99

$

Usually ships in 3-6 days

0

33

Toro AU175086A1

SPACER-COLLAR

$

$

Currently unavailable

34

Toro AUH436303

SPRING

$78.99

$

Usually ships in 3-6 days

0

35

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

36

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

37

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

38

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro AU105258

HANDLE - Creep

$

$

Currently unavailable

40

Toro AU425-155

NUT-JAM

$0.99

$

Usually ships in 3-6 days

0

41

Toro AUH289652

JOINT-BALL (FEMALE)

$22.99

$

Usually ships in 3-6 days

0

42

Toro AU107334

ROD-ADUST

$47.99

$

Usually ships in 3-6 days

0

43

Toro AU103403

ROD END - Female Ball Joint LH

$

$

Currently unavailable

44

Toro AU425-156

NUT-JAM, HEX

$1.49

$

Usually ships in 3-6 days

0

45

Toro AU129-289

NUT-JAM, LH

$5.99

$

Usually ships in 3-6 days

0

46

Toro AU107344

SCREW-JACK, CONTROL

$70.99

$

Usually ships in 3-6 days

0

47

Toro AU232-4616

NUT-HEX

$0.99

$

In Stock, Qty 8

0

48

Toro AU232-4615

NUT - Prev Trq 5/16 GRC CAD Direct

$0.99

$

Usually ships in 3-6 days

0

49

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

50

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

51

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

52

Toro AU232-4114

NUT-Prev Trq 1/4 GRC PHC Direct

$0.99

$

Usually ships in 3-6 days

0

53

Toro AU232-4115

NUT-HEX

$

$

Not available

54

Toro AU426-636

BOLT - Hex Hd .375 x 2.25 GR5 ZND

$

$

Not available

55

Toro AU103404

JOINT-BALL, LH (FEMALE)

$44.99

$

Usually ships in 3-6 days

0

56

Toro AUH423053

LINK - Strg Valve

$

$

Not available

57

Toro AUH169318

PIN
(Superseded to 9321204)

$4.99

$

Usually ships in 3-6 days

0

58

Toro AU432-48

PIN - Cotter .062 x .50 in ZND
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

59

Toro AUH435694

SPACER

$43.99

$

Usually ships in 3-6 days

0

60

Toro AU139830A1

JOINT-BALL, STUD (ROD END)

$27.99

$

Usually ships in 3-6 days

0

61

Toro AUR47940

JOINT-BALL

$27.99

$

Usually ships in 3-6 days

0
