MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) DISC BRAKE CALIPER ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

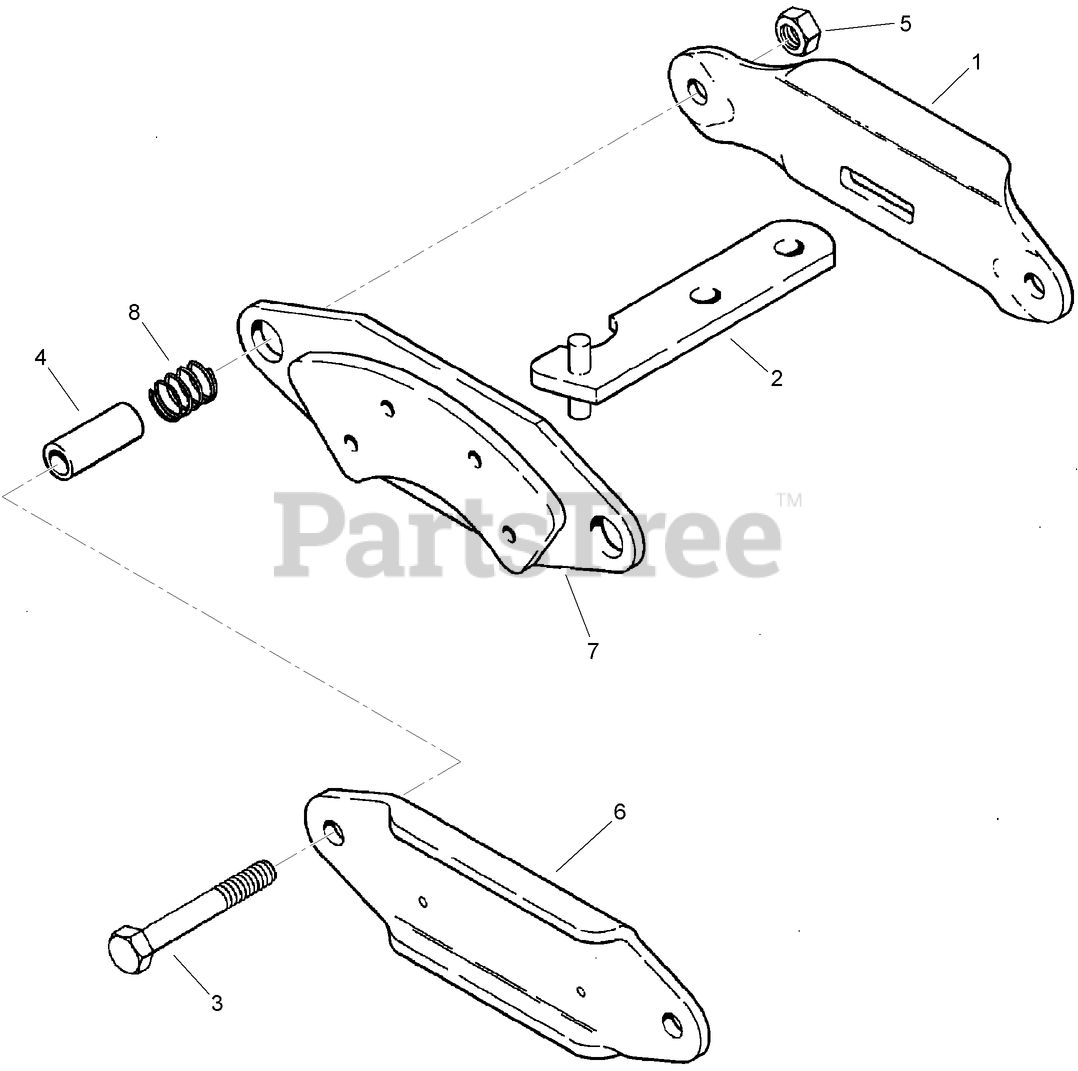

DISC BRAKE CALIPER ASSEMBLY Parts Diagram

  • Title

Toro AUH673926

CALIPER ASM

Note: Not illustrated

$435.99

$

Usually ships in 3-6 days

0

1

Toro AUH437100

BRACKET

$60.99

$

Usually ships in 3-6 days

0

2

Toro AUH437101

LEVER

$52.99

$

Usually ships in 3-6 days

0

3

Toro AU414-536

SCREW-CAP

$

$

Currently unavailable

4

Toro AU119417

SPACER-TUBE

$24.99

$

Usually ships in 3-6 days

0

5

Toro AU230-4715

NUT

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH437104

OUTSIDE HOLDER AND PAD ASM

$187.99

$

Usually ships in 3-6 days

0

7

Toro AUH437102

INSIDE HOLDER AND PAD ASM

$135.99

$

Usually ships in 3-6 days

0

8

Toro AUH437103

SPRING

$15.99

$

Usually ships in 3-6 days

0
