MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) ENGINE AND PUMP DRIVE COUPLER MOUNTING ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

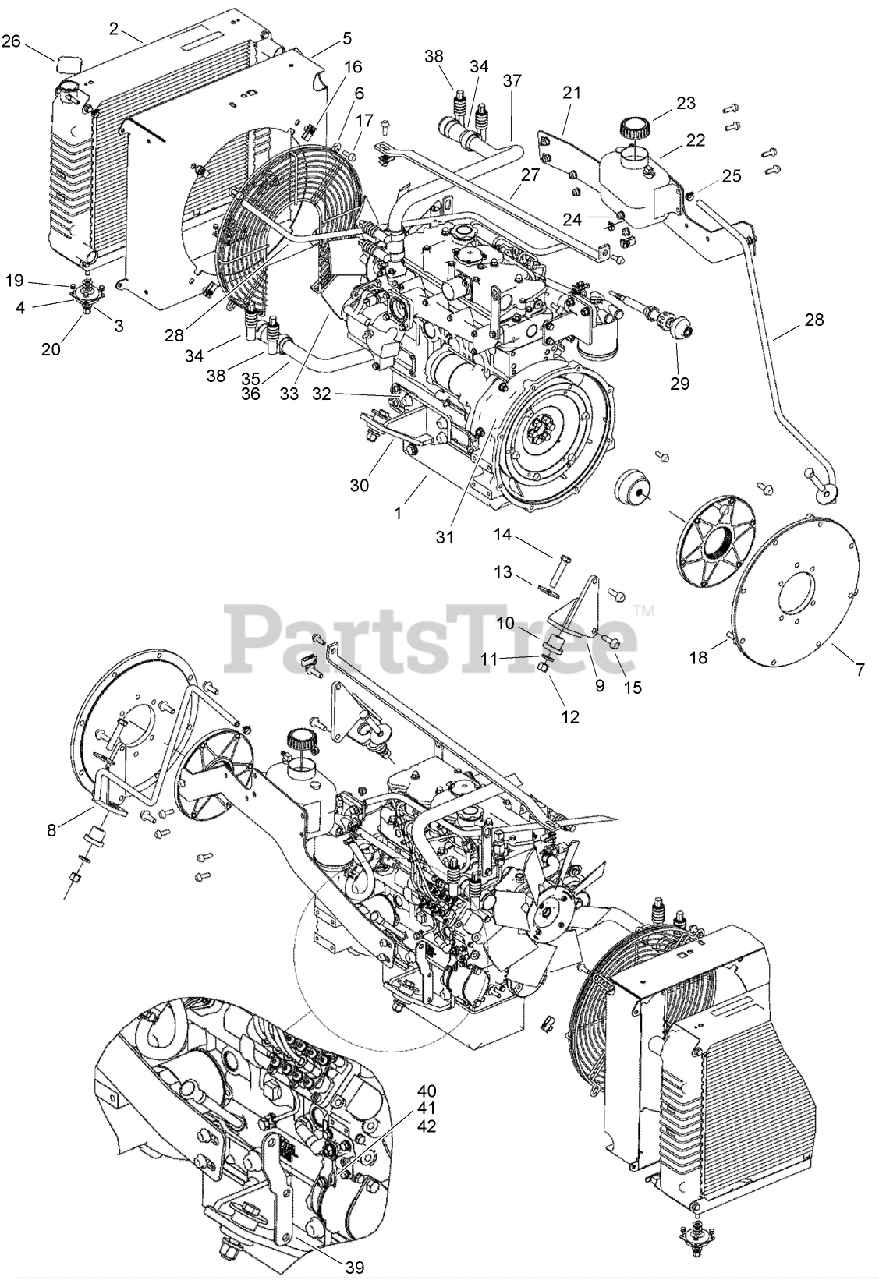

ENGINE AND PUMP DRIVE COUPLER MOUNTING ASSEMBLY Parts Diagram

  • Title

Toro AU125768

GROUP - FUEL SYSTEM REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU125494

ENGINE - CAT C1.6

$

$

Currently unavailable

2

Toro AU125546

RADIATOR

$2400.99

$

Usually ships in 3-6 days

0

3

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

4

Toro AUH433370

MOUNT-RADIATOR

$87.99

$

Usually ships in 3-6 days

0

5

Toro AU125486

SHROUD - Fan

$

$

Currently unavailable

6

Toro AU125574

GUARD-FINGER

$1825.99

$

Usually ships in 3-6 days

0

7

Toro AU125558

PUMP DRIVE COUPLER KIT

$1019.99

$

Usually ships in 3-6 days

0

8

Toro AU104924

WELDMENT - RR Motor Mount

$

$

Currently unavailable

9

Toro AU104923

WELDMENT - LR Motor Mount

$

$

Currently unavailable

10

Toro AUH426395

MOUNT-RUBBER

$25.99

$

Usually ships in 3-6 days

0

11

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

12

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU496-81018

WASHER-FLAT

$3.99

$

Usually ships in 3-6 days

0

14

Toro AU426-840

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

15

Toro AU100878

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

16

Toro AU100862

NUT-U

$4.49

$

Usually ships in 3-6 days

0

17

Toro AU100873

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

18

Toro AU100877

SCREW-HH

$17.99

$

Usually ships in 3-6 days

0

19

Toro AU151-539

RIVET

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU113804

PLATE - Overflow Bottle Bracket

$278.99

$

Usually ships in 3-6 days

0

22

Toro AU138189A1

TANK-RECOVERY, COOLANT

$86.99

$

Usually ships in 3-6 days

0

23

Toro AUA184079

CAP - Non-Vented w/Tether
(Superseded to 87-7050)

$22.99

$

In Stock, Qty 9

0

24

Toro AU100526

NUT-TORQUE, PREVAILING

$0.99

$

Usually ships in 3-6 days

0

25

Toro AUA171099

CLAMP-Hose
(Superseded to 92-2379)

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU105197

CAP-RADIATOR, 13 PSI

$50.99

$

Usually ships in 3-6 days

0

27

Toro AU107293

BAR - Radiator Support
(Superseded to AU107293-03)

$243.99

$

Usually ships in 3-6 days

0

28

Toro AU113886

HOSE - Coolant Recovery

$28.99

$

Usually ships in 3-6 days

0

29

Toro AU112937A1

CABLE-THROTTLE

$166.99

$

Usually ships in 3-6 days

0

30

Toro AU125521

WELDMENT - LF Motor Mount

$

$

Currently unavailable

31

Toro AU125520

WELDMENT - RF Motor Mount

$

$

Currently unavailable

32

Toro AU125538

SCREW, METRIC FLANGE w/BODY - M12 x 25

$

$

Currently unavailable

33

Toro AU125618

FAN

$449.99

$

Usually ships in 3-6 days

0

34

Toro AU125770

REDUCER - Straight, 1-3/8 - 1-1/8

$

$

Currently unavailable

35

Toro AU125773

TUBING - Radiator, Lower 1-1/8 OD x 16 Ga Wall

$

$

Currently unavailable

36

Toro AU125803

HOSE - Radiator, 28.58 ID x 76.2 Lg

$

$

Currently unavailable

37

Toro AU125772

TUBING - Radiator, Upper 1-1/8 OD x 16 Ga Wall

$

$

Currently unavailable

38

Toro AU21000940

CLAMP-TORQUE, CONSTANT

$29.99

$

Usually ships in 3-6 days

0

39

Toro AU126697

Bracket-Throttle Cable

$

$

Currently unavailable

40

Toro AU126701

PIN-THROTTLE

$70.99

$

Usually ships in 3-6 days

0

41

Toro AU490-1108

SCREW - PHd Type 1 #10-32 x 1/2 CST ZND
(Superseded to AU86625206)

$0.99

$

Usually ships in 3-6 days

0

42

Toro AU432-616

PIN - Cotter .094 x 1.00 in Zn

$

$

Not available
