MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) GROUND DRIVE HYDRAULIC CIRCUIT Parts Diagram

Maxi Sneaker Series E Trencher

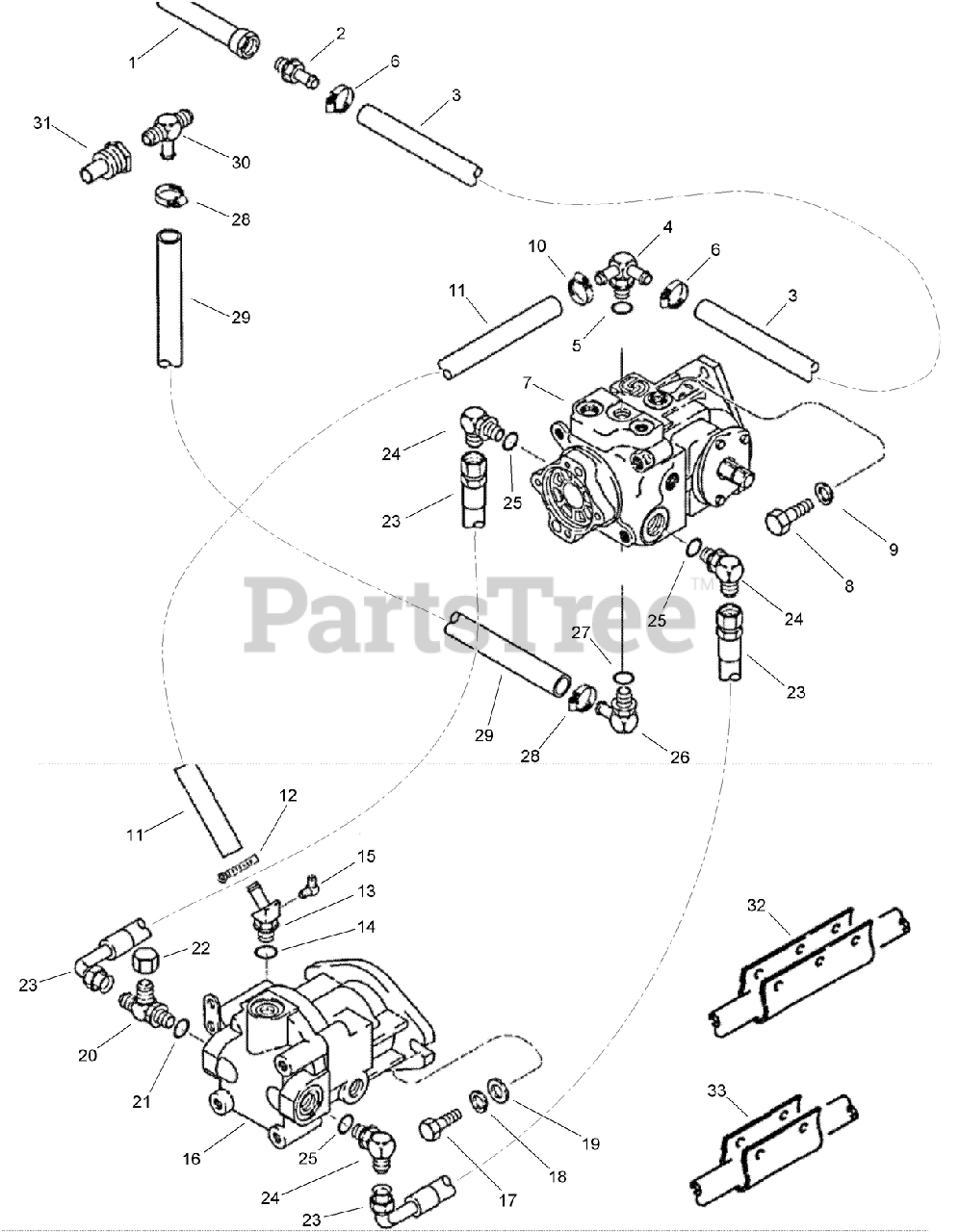

GROUND DRIVE HYDRAULIC CIRCUIT Parts Diagram

  • Title

1

Toro AUH151399

FILTER ASM

$

$

Not available

2

Toro AU217-384

FITTING-STRAIGHT

$108.99

$

Usually ships in 3-6 days

0

3

Toro AUH352237

HOSE - 368 mm (14-1/2 inch) Long (cut from H379214 bulk hose)

$

$

Currently unavailable

4

Toro AUH339762

TEE

$136.99

$

Usually ships in 3-6 days

0

5

Toro AU237-6012

O-RING - 59/64 ID x 7/64 inch Wide

$1.99

$

Usually ships in 3-6 days

0

6

Toro AU214-1412

CLAMP - Adj, 11/16 - 1-1/4 inch Dia

$1.49

$

Usually ships in 3-6 days

0

7

Toro AU239918A1

HYD VARIABLE PUMP ASM

$3406.99

$

Usually ships in 3-6 days

0

8

Toro AU426-820

BOLT-Hex Hd 1/2 x 1-1/4 GR5 ZND

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, only 2 left!

0

10

Toro AU214-1412

CLAMP - Adj, 11/16 - 1-1/4 inch Dia

$1.49

$

Usually ships in 3-6 days

0

11

Toro AUH434280

HOSE - 800 mm (31-1/2 in), Return, Steering Control Valve to Dual Pump

$101.99

$

Usually ships in 3-6 days

0

12

Toro AU214-1412

CLAMP - Adj, 11/16 - 1-1/4 inch Dia

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU109554

FITTING - 45 degree, Special

$

$

Not available

14

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.49

$

In Stock, Qty 5

0

15

Toro AU218-5283

ELBOW - 90 Degree, 9/16-18 flare x 1/4 inch PT

$5.99

$

Usually ships in 3-6 days

0

16

MOTOR ASSEMBLY - Ground Drive

Note: Not illustrated

$

$

Not available

16

MOTOR ASSEMBLY - Ground Drive

Note: Not serviced separately

$

$

Not available

17

Toro AU426-820

BOLT-Hex Hd 1/2 x 1-1/4 GR5 ZND

$1.49

$

Usually ships in 3-6 days

0

18

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, only 2 left!

0

19

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

20

Toro AU218-5185

TEE - 1-1/16-12 inch Adj O-Ring Branch x Flare x Flare

$62.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6012

O-RING - 59/64 ID x 7/64 inch Wide

$1.99

$

Usually ships in 3-6 days

0

22

Toro AU218-335

CAP

$7.49

$

Usually ships in 3-6 days

0

23

Toro AUA148749

HOSE - 660 mm (26 inch) Long, Ground Drive Pump to Ground Drive Motor

$141.99

$

Usually ships in 3-6 days

0

24

Toro AU218-5108

ELBOW-90 Adj 37FL 3/4 Tube

$34.99

$

Usually ships in 3-6 days

0

25

Toro AU237-6012

O-RING - 59/64 ID x 7/64 inch Wide

$1.99

$

Usually ships in 3-6 days

0

26

Toro AU217-362

ELBOW - 90 Degree, 3/4 Stem End x 1-5/16-12 inch Adj O-Ring

$61.99

$

Usually ships in 3-6 days

0

27

Toro AU237-6016

O-RING - 1-11/64 ID x 7/64 inch Wide

$3.99

$

Usually ships in 3-6 days

0

28

Toro AU214-1412

CLAMP - Adj, 11/16 - 1-1/4 inch Dia

$1.49

$

Usually ships in 3-6 days

0

29

Toro AUH383158

HOSE - 457 mm (18 inch) Long Ground Drive Pump to Reservoir (cut from D55911 bulk hose)

$32.99

$

Usually ships in 3-6 days

0

30

Toro AUD64786

FITTING-ELBOW, LATERAL

$175.99

$

Usually ships in 3-6 days

0

31

Toro AUH428193

INDUCER-PRESSURE

$

$

Currently unavailable

32

Toro AU123989A1

BOOT-HOSE

$62.99

$

Usually ships in 3-6 days

0

33

Toro AU107409

BOOT-HOSE

$

$

Currently unavailable

Toro AUH379214

HOSE - Bulk, 5588 mm (220 inch) Long (use for item 3)

Note: Not illustrated

$

$

Not available

Toro AUD55911

HOSE - Bulk, 19 mm (3/4) ID x 711 mm (28 inch) Long (use for item 29)
(Superseded to AU364360C2)

Note: Not illustrated

$119.99

$

Usually ships in 3-6 days

0
