MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) GROUND DRIVE PUMP ASSEMBLY END CAP, GEROTOR AND ADAPTING PARTS Parts Diagram

Maxi Sneaker Series E Trencher

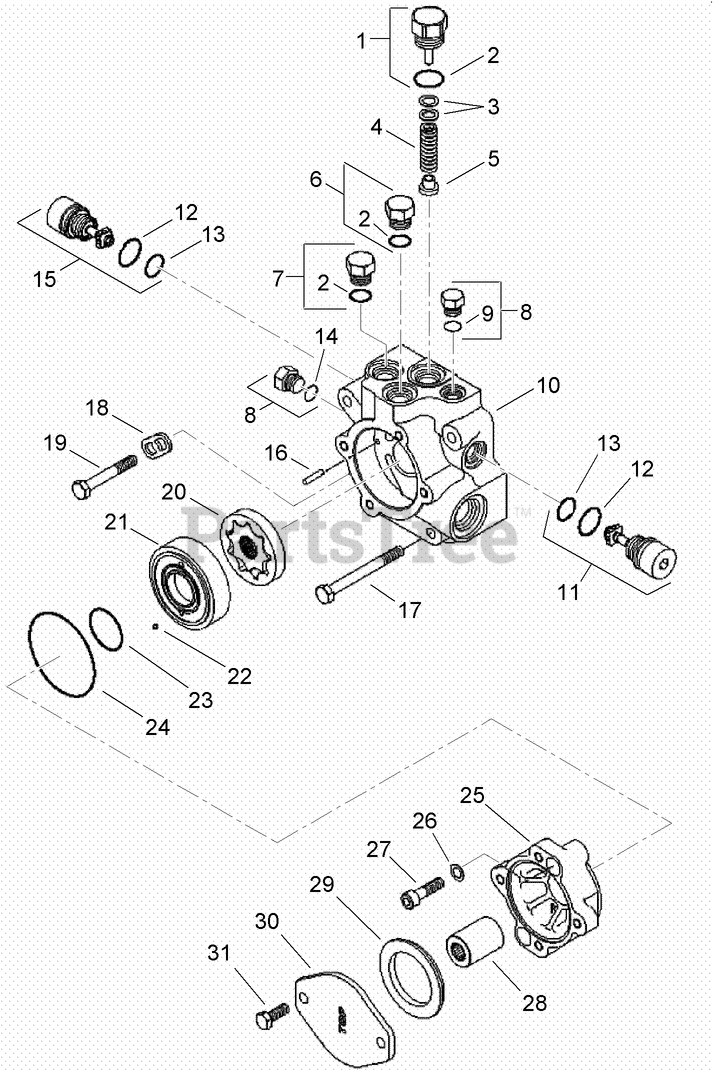

GROUND DRIVE PUMP ASSEMBLY END CAP, GEROTOR AND ADAPTING PARTS Parts Diagram

  • Title

Toro AU239918A1

HYD VARIABLE PUMP ASM

Note: Not illustrated

$3406.99

$

Usually ships in 3-6 days

0

1

Toro AU234850A1

PLUG

$

$

Not available

2

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.49

$

In Stock, Qty 5

0

3

Toro AU132377A1

KIT - Charge Relief Shim

$

$

Currently unavailable

4

Toro AU124828A1

SPRING

$

$

Currently unavailable

5

Toro AUH438300

POPPET - Charge Rel

$

$

Currently unavailable

6

Plug

Note: Not serviced separately

$

$

Not available

7

Plug

Note: Not serviced separately

$

$

Not available

8

Toro AU218-5155

PLUG-Hex Hd, ORB 3/8

$3.49

$

Usually ships in 3-6 days

0

9

O-RING

Note: Not serviced separately

$

$

Not available

10

Toro AU124839A1

CAP - Pump End

$

$

Currently unavailable

11

Toro AU258793A1

POPPET - Check Valve

$

$

Not available

12

Toro AU238-5210

O-RING - 3/4 x 1 Class 5

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

14

O-RING

Note: Not serviced separately

$

$

Not available

15

ASSEMBLY - Check Valve

Note: Not serviced separately

$

$

Not available

16

Toro AUH351445

SPRING

$

$

Not available

17

Toro AU827-10080

BOLT - M10 x 80

$1.99

$

Usually ships in 3-6 days

0

18

Toro AU100703A1

BRACKET-Lifting

$

$

Currently unavailable

19

Toro AU827-10065

BOLT - M10 x 65

$

$

Currently unavailable

20

Toro AU124842A1

SET - Gear

$

$

Not available

21

Toro AU124843A1

SPACER - Gerotor

$

$

Not available

22

Toro AU211-1006

BALL - .187 in GR24

$

$

Not available

23

Toro AU234848A1

O-RING

$15.99

$

Usually ships in 3-6 days

0

24

Toro AU234849A1

O-RING

$16.99

$

Usually ships in 3-6 days

0

25

Toro AU124844A1

ADAPTER - A Flange

$1232.99

$

Usually ships in 3-6 days

0

26

Toro AU124845A1

WASHER - Special

$4.49

$

Usually ships in 3-6 days

0

27

Toro AU862-10040

SCREW - M10 x 40

$2.99

$

Usually ships in 3-6 days

0

28

Toro AU124846A1

COUPLING

$141.99

$

Usually ships in 3-6 days

0

29

Toro AU251661A1

SEAL - A Pad
(Superseded to 107-4377)

$79.99

$

Usually ships in 3-6 days

0

30

Toro AUH438063

PLATE - Cover

$

$

Currently unavailable

31

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0
