MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) GROUND DRIVE PUMP ASSEMBLY HOUSING, INPUT SHAFT AND PISTON BLOCK Parts Diagram

Maxi Sneaker Series E Trencher

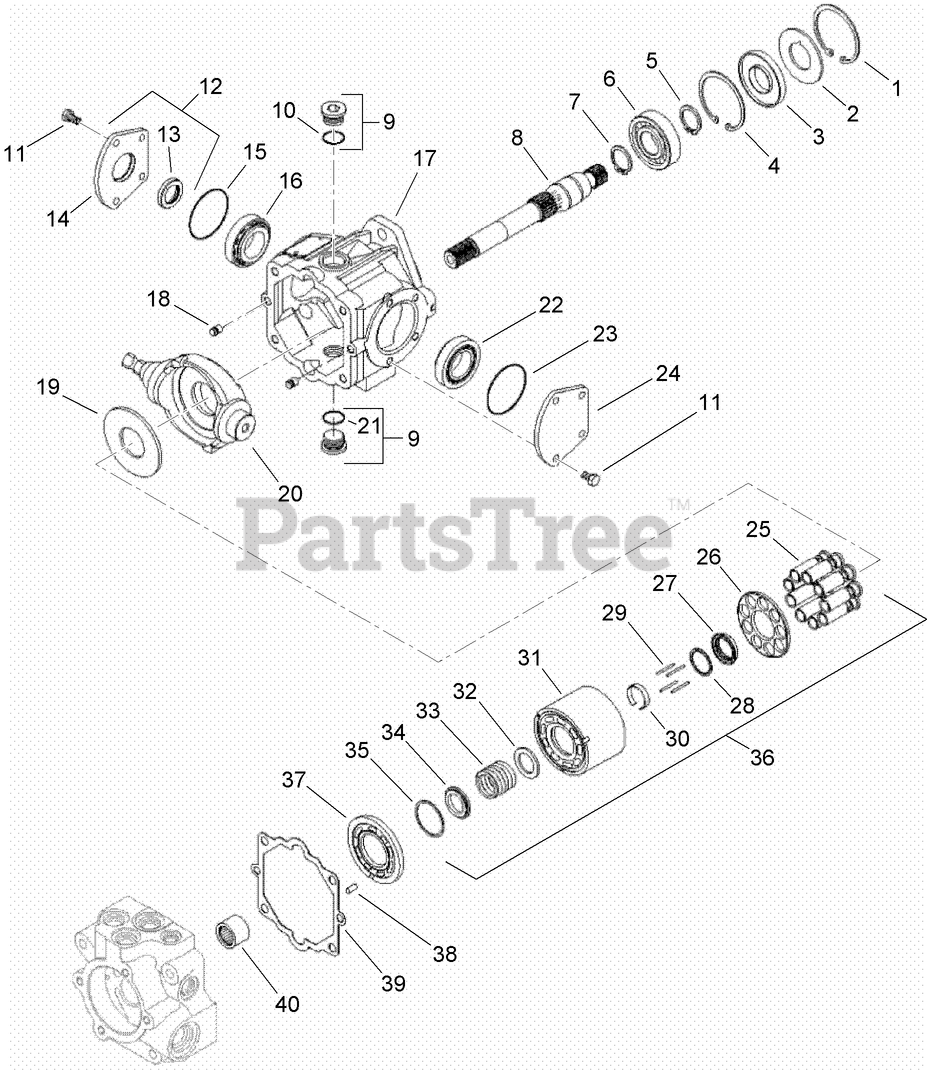

GROUND DRIVE PUMP ASSEMBLY HOUSING, INPUT SHAFT AND PISTON BLOCK Parts Diagram

  • Title

Toro AU239918A1

HYD VARIABLE PUMP ASM

Note: Not illustrated

$3755.99

$

Usually ships in 3-6 days

0

1

Toro AU103-21281

RING-RETAINING, INT
(Superseded to 32151-88)

$6.49

$

Usually ships in 3-6 days

0

2

Toro AU241589A1

WASHER-SUPPORT, SEAL

$

$

Currently unavailable

3

Toro AUN14103

SEAL-BEARING, CARRIER

$89.99

$

Usually ships in 3-6 days

0

4

RING - Retainer

Note: Not serviced separately

$

$

Not available

5

Toro AU100-11137

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

6

Toro AUA29183

BEARING

$105.99

$

Usually ships in 3-6 days

0

7

RING - Retainer

Note: Not serviced separately

$

$

Not available

8

Toro AU251656A1

SHAFT - Front 15T

$597.99

$

Usually ships in 3-6 days

0

9

Toro AU218-5212

PLUG-SOCKET HEAD

$28.99

$

Usually ships in 3-6 days

0

10

O-RING

Note: Not serviced separately

$

$

Not available

11

Toro AU627-8016

BOLT - M8 x 16, 10.9 ZND

$

$

Not available

12

ASSEMBLY - Trunnion Cover

Note: Not serviced separately

$

$

Not available

13

Toro AUH438288

SEAL - Lip

$36.99

$

Usually ships in 3-6 days

0

14

Toro AUH438311

COVER

$

$

Currently unavailable

15

O-RING

Note: Not serviced separately

$

$

Not available

16

KIT - Bearing

Note: Not serviced separately

$

$

Not available

17

Toro AU241587A1

HOUSING - Variable

$

$

Currently unavailable

18

Pin

Note: Not serviced separately

$

$

Not available

19

Toro AU100700A1

PLATE-Thrust

$

$

Currently unavailable

20

Toro AU241593A1

PLATE - Swash

$

$

Currently unavailable

21

O-RING

Note: Not serviced separately

$

$

Not available

22

Toro AU241590A1

BEARING ASSY - Cup and Cone

$

$

Currently unavailable

23

Toro AU239-5146

RING - 2.612 ID X .094

$1.99

$

Usually ships in 3-6 days

0

24

Toro AUH438310

COVER

$

$

Currently unavailable

25

ASSEMBLY - Piston

Note: Not serviced separately

$

$

Not available

26

RETAINER - Slipper

Note: Not serviced separately

$

$

Not available

27

GUIDE - Slipper Retainer

Note: Not serviced separately

$

$

Not available

28

WASHER - Special

Note: Not serviced separately

$

$

Not available

29

PIN - Slipper Hold Down

Note: Not serviced separately

$

$

Not available

30

RETAINER - Slipper Hold Down Pin

Note: Not serviced separately

$

$

Not available

31

BLOCK - Cylinder

Note: Not serviced separately

$

$

Not available

32

Washer

Note: Not serviced separately

$

$

Not available

33

SPRING - Cylinder Block

Note: Not serviced separately

$

$

Not available

34

Washer

Note: Not serviced separately

$

$

Not available

35

Ring - Retaining

Note: Not serviced separately

$

$

Not available

36

KIT - Cylinder Block

Note: Not serviced separately

$

$

Not available

37

Toro AU124841A1

PLATE - Valve - RH - CW

$

$

Not available

38

Toro AU38-11210

PIN

$

$

Not available

39

Toro AU124826A1

GASKET - End Cap

$21.99

$

Usually ships in 3-6 days

0

40

Toro AU132391A1

BEARING-Needle

$82.99

$

Usually ships in 3-6 days

0
