Maxi Sneaker Series E Trencher

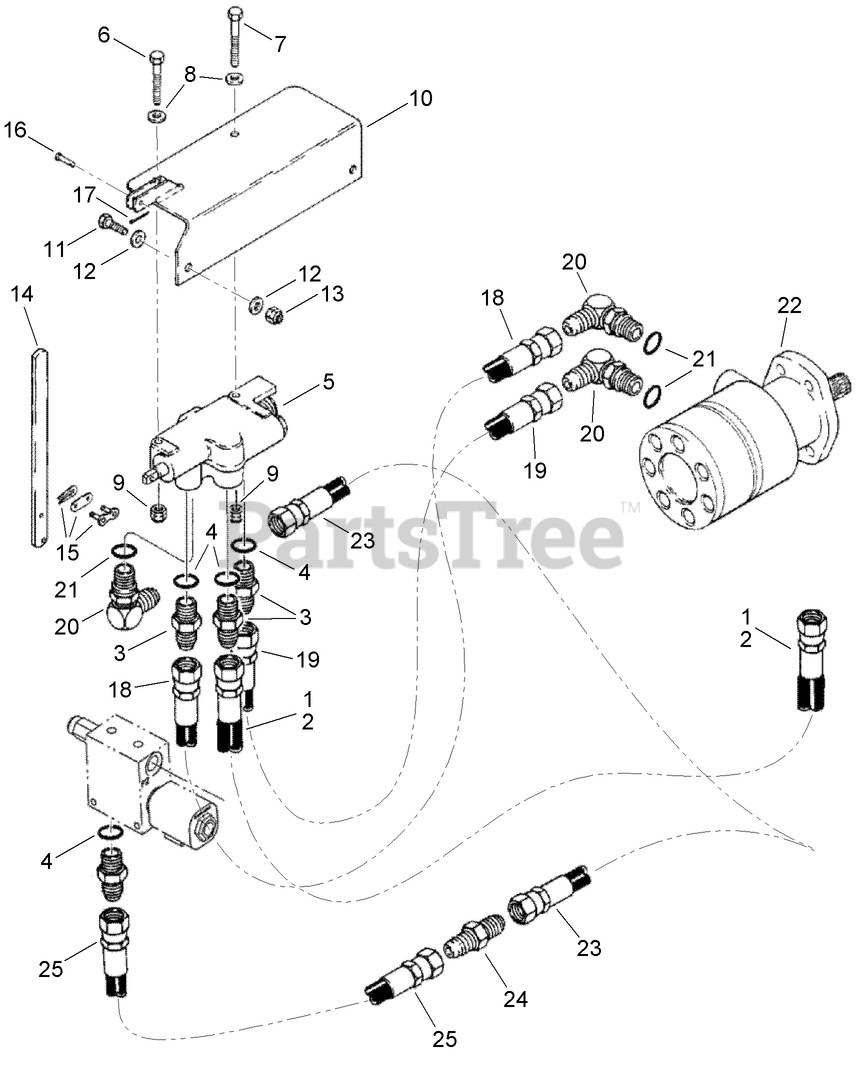

HYDRA-BORER HYDRAULIC CIRCUIT Parts Diagram

  • Title

1

Toro AUL78468

HOSE - 940 mm (37 inch) Long (940 mm) Long, Trencher Control Valve Supply from Plow Double Pump

$

$

Not available

2

Toro AUH432542

HOSE - 400 mm (15-3/4 inch) Long (400 mm) Long, Trencher Control Valve Outlet to Plow Control Valve

$100.99

$

Usually ships in 3-6 days

0

3

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$8.49

$

Usually ships in 3-6 days

0

4

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 16

0

5

Toro AU107110A1

SINGLE SPOOL VALVE ASM

$

$

Not available

6

Toro AU426-536

BOLT-Hex Hd 5/16 x 2-1/4
(Superseded to 322-11)

$1.99

$

In Stock, Qty 20+

0

7

Toro AU426-540

BOLT

$0.99

$

Usually ships in 3-6 days

0

8

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU232-4115

NUT-HEX

$

$

Not available

10

Toro AUH664730

BRACKET - Valve Mounting

$

$

Not available

11

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

14

Toro AUH377325

LEVER-VALVE
(Superseded to AUH377325-03)

$86.99

$

Usually ships in 3-6 days

0

15

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$8.49

$

In Stock, Qty 10

0

16

Toro AUH35279

PIN-CLEVIS

$52.99

$

Usually ships in 3-6 days

0

17

Toro AU432-48

PIN - Cotter .062 x .50 in ZND
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 15

0

18

Toro AUR22412

HOSE - 1270 mm (50 inch) Long, Control Valve -A- Port to Motor

$

$

Not available

19

Toro AUD20358

HOSE-Hydraulic

$175.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5107

ELBOW-90 Adj 37FL 5/8 Tube

$9.49

$

Usually ships in 3-6 days

0

21

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 16

0

22

Toro AUH673156

HYD MOTOR ASM

$2157.99

$

Usually ships in 3-6 days

0

23

Toro AUH432542

HOSE - 400 mm (15-3/4 inch) Long (400 mm) Long, Trencher Control Valve Outlet to Plow Control Valve

$100.99

$

Usually ships in 3-6 days

0

24

Toro AU218-736

FITTING-UNION

$8.99

$

Usually ships in 3-6 days

0

25

Toro AUH431809

HOSE - 5/8 x 1600

$216.99

$

Usually ships in 3-6 days

0
