MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) HYDRA-BORER MOUNTING ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

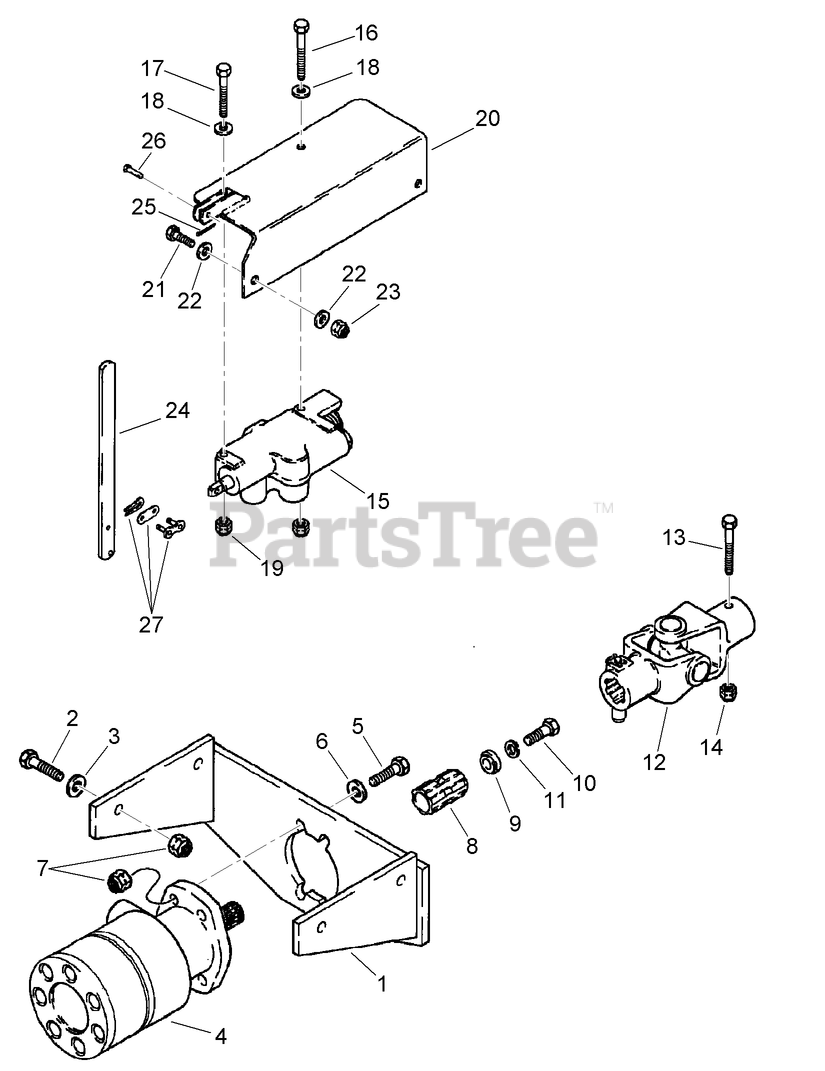

HYDRA-BORER MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro AU115704A1

MOUNT - Hydra-Borer Motor

$

$

Not available

2

Toro AU426-828

BOLT-Hex Hd 1/2 x 1-3/4 GR5 ZND
(Superseded to 121-1524)

$3.49

$

Usually ships in 3-6 days

0

3

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

4

Toro AUH673156

HYD MOTOR ASM

$1957.99

$

Usually ships in 3-6 days

0

5

Toro AU426-828

BOLT-Hex Hd 1/2 x 1-3/4 GR5 ZND
(Superseded to 121-1524)

$3.49

$

Usually ships in 3-6 days

0

6

Toro AU496-21053

WASHER-FLAT

$2.49

$

Usually ships in 3-6 days

0

7

Toro AU232-4118

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUH312314

ADAPTER

$279.99

$

Usually ships in 3-6 days

0

9

Toro AUH435886

RETAINER-ADAPTER

$69.99

$

Usually ships in 3-6 days

0

10

Toro AU414-820

BOLT-Hex Hd, 0.500 UNF x 1.25 GR5 ZND
(Superseded to 106-0378)

$4.99

$

In Stock, Qty 5

0

11

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, Qty 11

0

12

Toro AUH511113

U-JOINT ASM
(Superseded to AUH511113-03)

$357.99

$

Usually ships in 3-6 days

0

13

Toro AU424-640

BOLT-hex, 3/8 NC x 2-1/2 inch, grade 2
(Superseded to 323-47)

$5.49

$

In Stock, only 2 left!

0

14

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

15

Toro AU107110A1

SINGLE SPOOL VALVE ASM

$1807.99

$

Usually ships in 3-6 days

0

16

Toro AU426-540

BOLT

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU426-536

BOLT-Hex Hd 5/16 x 2-1/4
(Superseded to 322-11)

$1.49

$

In Stock, Qty 20+

0

18

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

19

Toro AU232-4115

NUT-HEX

$

$

Not available

20

Toro AUH664730

BRACKET - Valve Mounting

$

$

Not available

21

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

23

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

24

Toro AUH377325

LEVER-VALVE
(Superseded to AUH377325-03)

$78.99

$

Usually ships in 3-6 days

0

25

Toro AU432-48

PIN - Cotter .062 x .50 in ZND
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 6

0

26

Toro AUH35279

PIN-CLEVIS

$49.99

$

Usually ships in 3-6 days

0

27

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$7.99

$

Usually ships in 3-6 days

0
