MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) INSTRUMENT AND ELECTRICAL ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

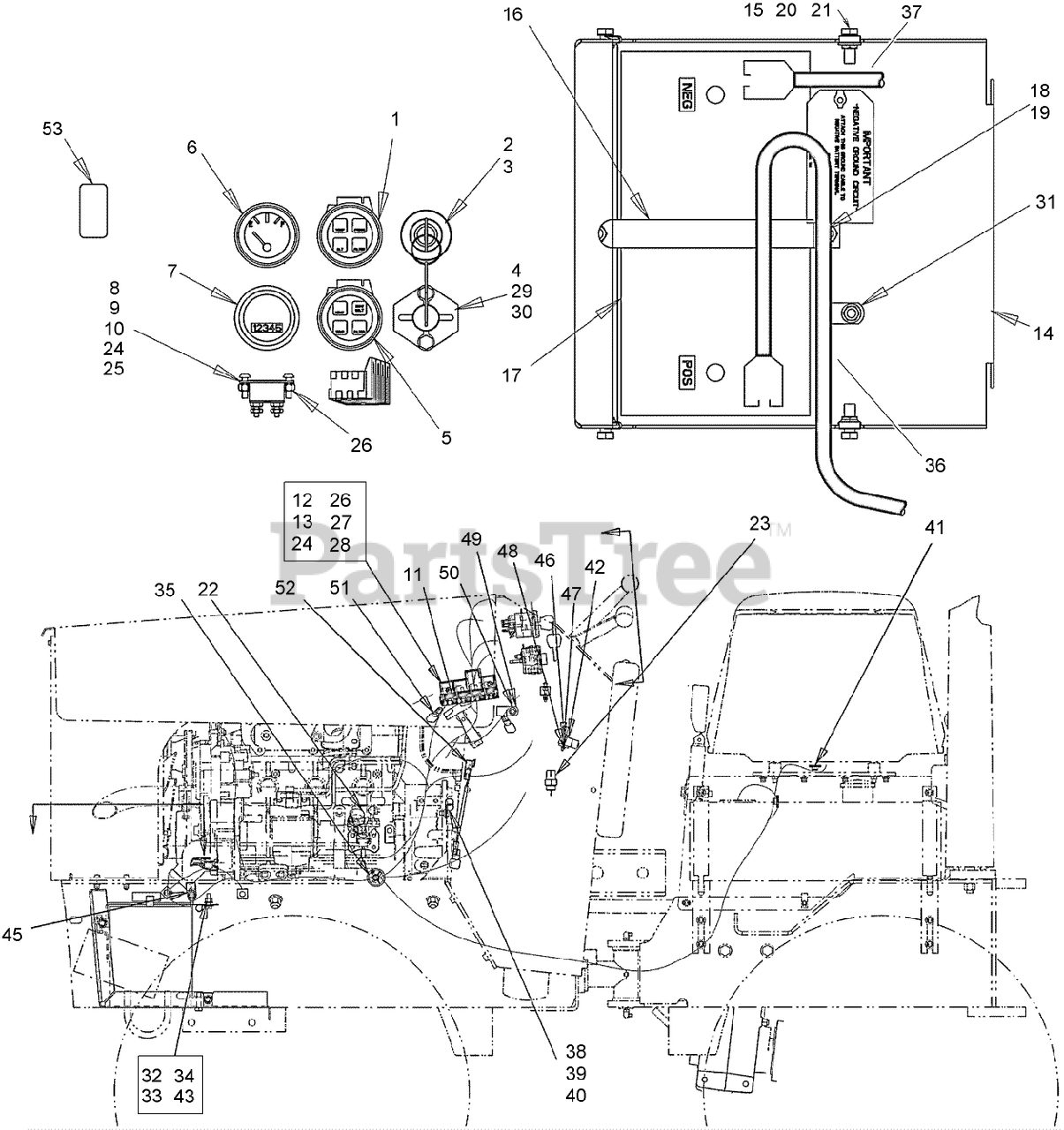

INSTRUMENT AND ELECTRICAL ASSEMBLY Parts Diagram

  • Title

Toro AU125687

INSTRUMENTS AND ELECTRICAL REF

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH437690

GAUGE - Warning

$187.99

$

Usually ships in 3-6 days

0

2

Toro AU103815

ASSEMBLY - Ignition Switch

$69.99

$

Usually ships in 3-6 days

0

3

Toro AU195-81015

WASHER-FLAT

$10.99

$

Usually ships in 3-6 days

0

4

Toro AUH35048

SWITCH-STARTER

$94.99

$

Usually ships in 3-6 days

0

5

Toro AU143128A1

CLUSTER - Hyd w/Neutral Indicator

$

$

Not available

6

Toro AUH437688

GAUGE - Fuel

$184.99

$

Usually ships in 3-6 days

0

7

Toro AU411857A1

GAUGE - Hour

$236.99

$

Usually ships in 3-6 days

0

8

Toro AUL104328

BREAKER - Circuit, 25 Amp

$53.99

$

Usually ships in 3-6 days

0

9

Toro AU493-41020

WASHER - Ext Tooth Lock 0.190 in ZND
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU225-14210

NUT - Hex, #10-32 UNF, 303 Stainless Steel

$

$

Not available

11

Toro AU110719

HARNESS - Main

$1187.99

$

Usually ships in 3-6 days

0

12

Toro AUD128310

RELAY-Power

$30.99

$

Usually ships in 3-6 days

0

13

Toro AU224787A1

RELAY - Sealed Time Delay
(Superseded to 127-8418)

$294.99

$

Usually ships in 3-6 days

0

14

Toro AUH673382

TRAY - Battery

$

$

Not available

15

Toro AU131-634

NUT-SPRING

$5.49

$

Usually ships in 3-6 days

0

16

Toro AUH436777

BRACKET - Battery Hold-Down
(Superseded to AUH436777-03)

$114.99

$

Usually ships in 3-6 days

0

17

BATTERY - 12 Volt (order from local Exide supplier)

Note: Not serviced separately

$

$

Not available

18

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

19

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

21

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

22

Toro AU292950A1

SWITCH-PRESSURE, VACUUM

$60.99

$

Usually ships in 3-6 days

0

23

Toro AUH81935

SENDER - Temperature, Reservoir Oil Warning

$

$

Not available

24

Toro AU459-11012

SCREW - Machine, 10 - 32 x 3/4 Slotted Pan Head

$

$

Not available

25

Toro AU492-11010

WASHER - Spring Lock, Split Type, No. 10

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU231-24409

NUT - Prev Trq #10 GR8 ZND Insert

$

$

Currently unavailable

27

Toro AU495-31020

WASHER - 0.203 x 0.469 x 0.049 in CST ZND
(Superseded to 3256-14)

$0.99

$

In Stock, Qty 20+

0

28

Toro AU87420999

INSERT - 10-32 Short Well Nut

$

$

Not available

29

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

30

Toro AU232-4114

NUT-Prev Trq 1/4 GRC PHC Direct

$0.99

$

Usually ships in 3-6 days

0

31

Toro AU515-23127

CLAMP - Insul, 12.7mm 3/8 in Bolt ZND

$2.49

$

Usually ships in 3-6 days

0

32

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

34

Toro AU232-4115

NUT-HEX

$

$

Not available

35

Toro AUH139634

SWITCH - Pressure, NO, Screw Terminal, Internal Ground

$102.99

$

Usually ships in 3-6 days

0

36

Toro AUD136982

CABLE - Battery, Positive

$131.99

$

Usually ships in 3-6 days

0

37

Toro AUH106096

CABLE - Battery, Negative

$70.99

$

Usually ships in 3-6 days

0

38

Toro AU515-23159

CLAMP

$1.49

$

Usually ships in 3-6 days

0

39

Toro AU614-8014

BOLT - Thd to Hd, M8 x 14 CL8.8 PHC

$1.49

$

Usually ships in 3-6 days

0

40

Toro AU892-11008

WASHER - Spring Lock Reg 8mm ZND.

$

$

Not available

41

Toro AUH439303

CLIP - Wire Harness

$5.99

$

Usually ships in 3-6 days

0

42

Toro AU86992539

SWITCH-NEUTRAL START

$248.99

$

Usually ships in 3-6 days

0

43

Toro AU102569

TAG - Important, Negative Ground Circuit

$14.99

$

Usually ships in 3-6 days

0

44

Toro AUH256990

CABLE - Ground

Note: Not illustrated

$

$

Not available

45

Toro AU493-41033

WASHER - External Tooth Lock, 5/16 ZND
(Superseded to 3255-8)

$0.99

$

In Stock, Qty 5

0

46

Toro AU102475

BOLT-U, SWITCH MTG (H435814)

$13.99

$

Usually ships in 3-6 days

0

47

Toro AU101637

SPACER-SWITCH

$2.99

$

Usually ships in 3-6 days

0

48

Toro AU193-1003

NUT - KEPS Ext T Wshr #6 - 32 UNC ZP

$0.99

$

Usually ships in 3-6 days

0

49

Toro AU515-23190

CLAMP-Insul 19.0 mm 3/8 in Bolt ZND

$1.99

$

Usually ships in 3-6 days

0

50

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

51

Toro AUL71879

DIODE - Isolation

$23.99

$

Usually ships in 3-6 days

0

52

Toro AU102470

HARNESS - Whitaker X Deutsch

$

$

Not available

53

Toro AU382892A1

BLANK-SWITCH, ROCKER
(Superseded to 99-7420)

$8.99

$

Usually ships in 3-6 days

0

54

Toro AU110720

SCHEMATIC - Electrical

Note: Not illustrated

$

$

Not available
