MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) INSTRUMENT AND MOUNTING ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

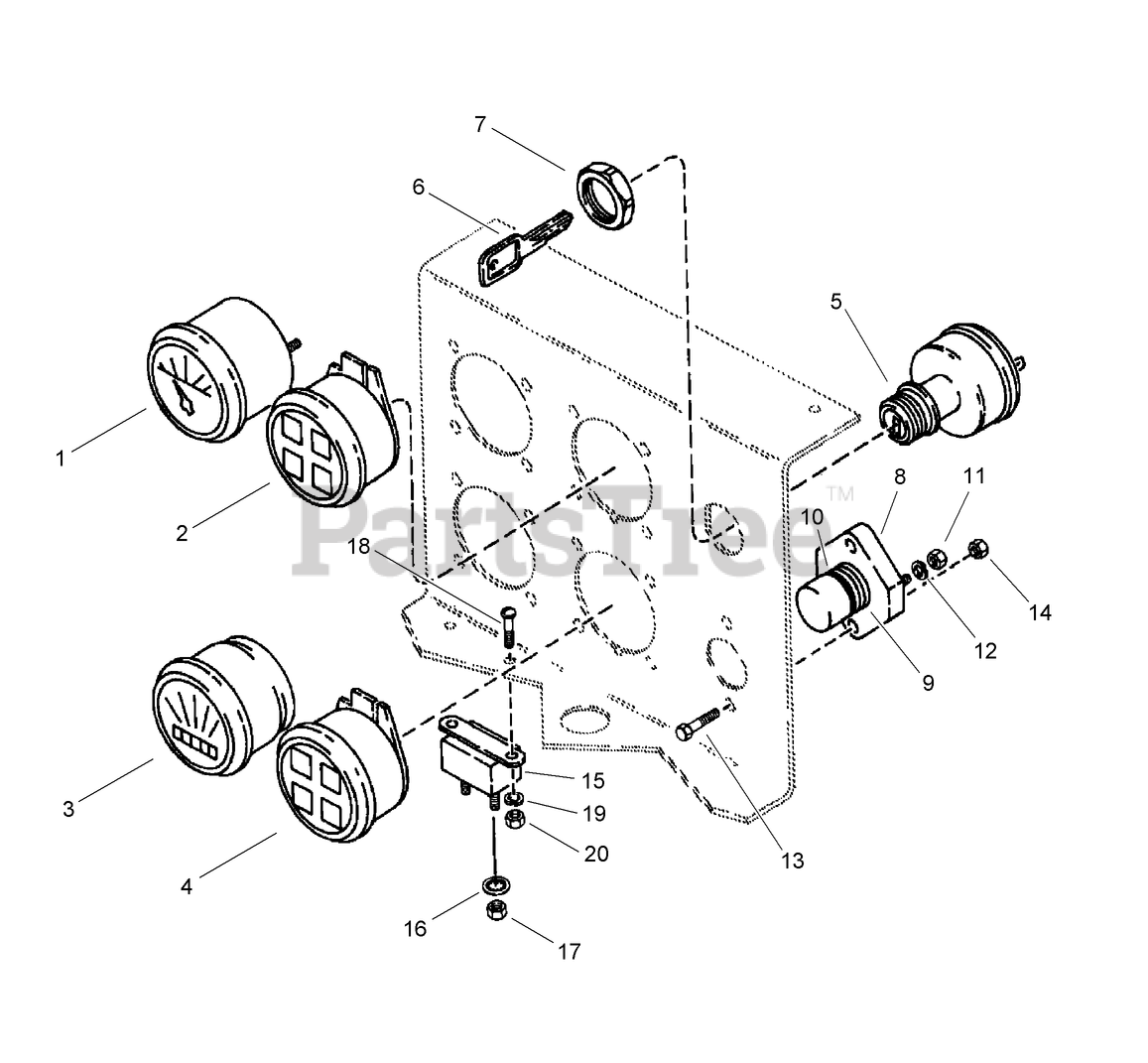

INSTRUMENT AND MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro AUH437688

GAUGE - Fuel

$184.99

$

Usually ships in 3-6 days

0

2

Toro AUH437690

GAUGE - Warning

$187.99

$

Usually ships in 3-6 days

0

3

Toro AU411857A1

GAUGE - Hour

$236.99

$

Usually ships in 3-6 days

0

4

Toro AU143128A1

CLUSTER - Hyd w/Neutral Indicator

$

$

Not available

4

Toro AU103815

ASSEMBLY - Ignition Switch (Includes Items 5, 6 and 7)

$69.99

$

Usually ships in 3-6 days

0

5

SWITCH - Ignition

Note: Not serviced separately

$

$

Not available

6

Toro AU103816

KEY - Set of Two, Ignition

$33.99

$

Usually ships in 3-6 days

0

7

NUT - Hex, Special, Key Switch Mounting

Note: Not serviced separately

$

$

Not available

7

Toro AUH35048

SWITCH-STARTER

$94.99

$

Usually ships in 3-6 days

0

8

SWITCH - Heater

Note: Not serviced separately

$

$

Not available

9

SPRING - Heater Switch

Note: Not serviced separately

$

$

Not available

10

O-RING - Switch

Note: Not serviced separately

$

$

Not available

11

Toro AU425-115

NUT - Hex, 5/16 inch NF
(Superseded to 3219-2)

$0.99

$

In Stock, Qty 20+

0

12

Toro AU492-11031

WASHER-Lock, 5/16 inch

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU426-412

BOLT

$0.99

$

Usually ships in 3-6 days

0

14

Toro AU232-4114

NUT-Prev Trq 1/4 GRC PHC Direct

$0.99

$

Usually ships in 3-6 days

0

15

Toro AUL104328

BREAKER - Circuit, 25 Amp

$53.99

$

Usually ships in 3-6 days

0

16

Toro AU493-41020

WASHER - Ext Tooth Lock 0.190 in ZND
(Superseded to 3255-17)

$0.99

$

Usually ships in 3-6 days

0

17

Toro AU225-14210

NUT - Hex, #10-32 UNF, 303 Stainless Steel

$

$

Not available

18

Toro AU459-11012

SCREW - Machine, 10 - 32 x 3/4 Slotted Pan Head

$

$

Not available

19

Toro AU492-11010

WASHER - Spring Lock, Split Type, No. 10

$0.99

$

Usually ships in 3-6 days

0

20

Toro AU225-14210

NUT - Hex, #10-32 UNF, 303 Stainless Steel

$

$

Not available

21

Toro AUN8320

BULB - Instrument Warning Lamp (as required)

Note: Not illustrated

$11.99

$

Usually ships in 3-6 days

0

22

Toro AU382892A1

BLANK-SWITCH, ROCKER
(Superseded to 99-7420)

Note: Not illustrated

$8.99

$

Usually ships in 3-6 days

0
