MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) NEUTRAL START SWITCH ASSEMBLY TRENCHER CONTROL VALVE Parts Diagram

Maxi Sneaker Series E Trencher

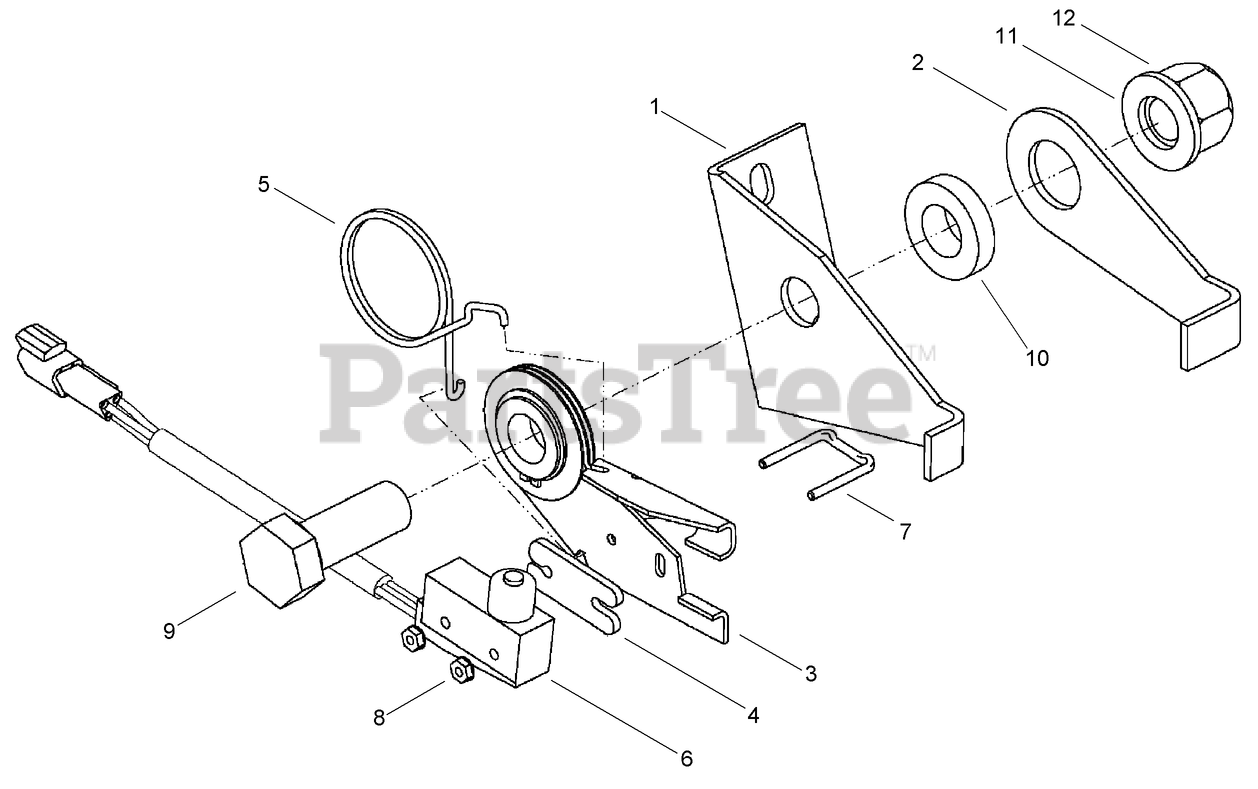

NEUTRAL START SWITCH ASSEMBLY TRENCHER CONTROL VALVE Parts Diagram

  • Title

Toro AU106402A2

NEUTRAL START SWITCH ASM

Note: Not illustrated

$

$

Not available

1

Toro AU106403A1

PLATE-MOUNTING

$51.99

$

Usually ships in 3-6 days

0

2

Toro AUH438465

PLATE-ACTUATOR

$204.99

$

Usually ships in 3-6 days

0

3

Toro AUH673263

NEUTRAL SWITCH MOUNTING ASM

$167.99

$

Usually ships in 3-6 days

0

4

Toro AU101637

SPACER-SWITCH

$2.99

$

Usually ships in 3-6 days

0

5

Toro AUH436231

SPRING-CENTERING

$25.99

$

Usually ships in 3-6 days

0

6

Toro AU86992539

SWITCH-NEUTRAL START

$248.99

$

Usually ships in 3-6 days

0

7

Toro AU102475

BOLT-U, SWITCH MTG (H435814)

$13.99

$

Usually ships in 3-6 days

0

8

Toro AU193-1003

NUT - KEPS Ext T Wshr #6 - 32 UNC ZP

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU426-1232

BOLT

$10.99

$

Usually ships in 3-6 days

0

10

Toro AUH435881

HUB-ACTUATOR

$35.99

$

Usually ships in 3-6 days

0

11

Toro AU495-11081

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU232-41112

NUT-Prev Trq 3/4 GRC CAD Direct

$2.49

$

Usually ships in 3-6 days

0
