MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW GEARBOX AND MOTOR MOUNTING ASSEMBLY P40 PLOW Parts Diagram

Maxi Sneaker Series E Trencher

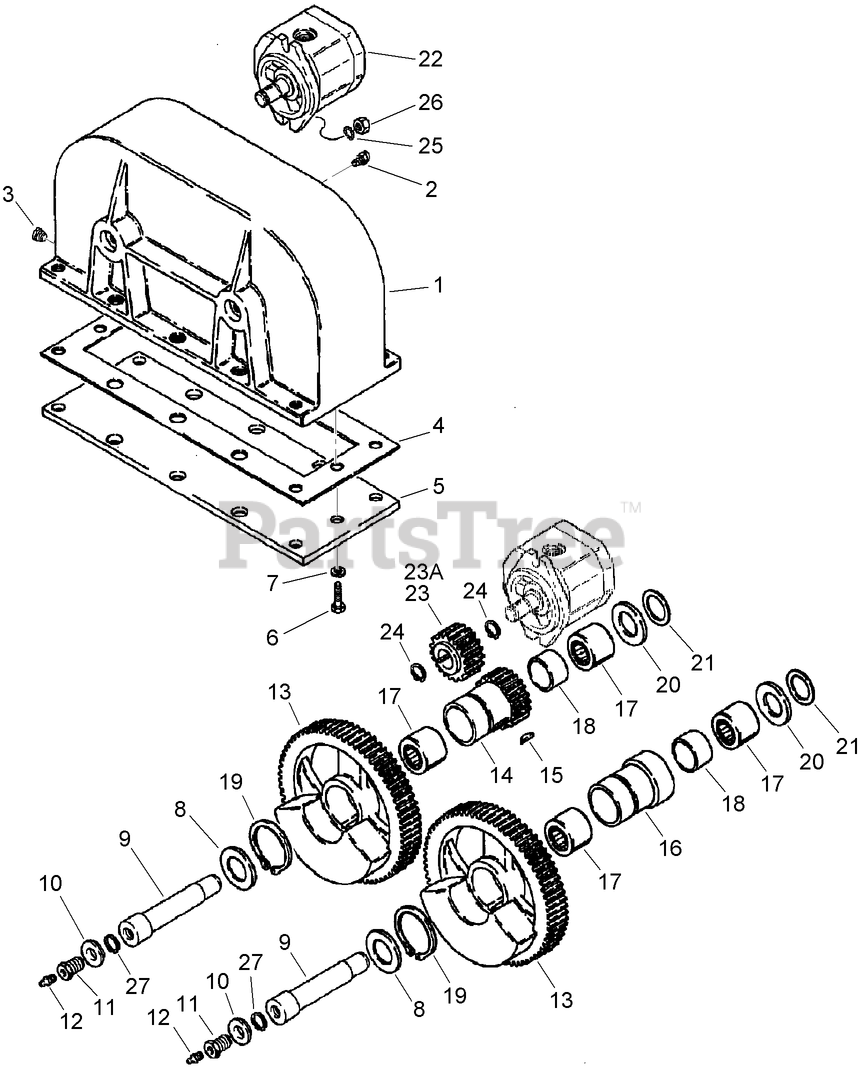

PLOW GEARBOX AND MOTOR MOUNTING ASSEMBLY P40 PLOW Parts Diagram

  • Title

Toro AUH530204

GEAR CASE ASM

Note: Not illustrated

$

$

Not available

1

Toro AUH113209

HOUSING - Gearbox
(Superseded to AUH113209-03)

$1898.99

$

Usually ships in 3-6 days

0

2

Toro AU152127H1

BREATHER - 1/8 inch PT, Gearbox Housing
(Superseded to AUL33264)

$14.99

$

Usually ships in 3-6 days

0

3

Toro AU217-430

PLUG - Hex Socket Headless, 1/8 inch PT

$1.99

$

Usually ships in 3-6 days

0

4

Toro AUH113266

GASKET-GEARBOX

$17.99

$

Usually ships in 3-6 days

0

5

Toro AUH113274

PLATE - Cover, Bottom
(Superseded to AUH113274-03)

$143.99

$

Usually ships in 3-6 days

0

6

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

8

Toro AUH159160

WASHER-THRUST

$33.99

$

Usually ships in 3-6 days

0

9

Toro AUH436788

PIN-BEARING

$251.99

$

Usually ships in 3-6 days

0

10

Toro AUH436789

WASHER-FLAT, STEPPED

$26.99

$

Usually ships in 3-6 days

0

11

Toro AUD136218

ADAPTER-LOCATING

$47.99

$

Usually ships in 3-6 days

0

12

Toro AU219-17

FITTING - STR Grease 3/16
(Superseded to 302-63)

$2.99

$

In Stock, Qty 20+

0

13

Toro AUH113217

GEAR

$2318.99

$

Usually ships in 3-6 days

0

14

Toro AUH113225

HUB-DRIVE, BEARING

$915.99

$

Usually ships in 3-6 days

0

15

Toro AUH120550

KEY-SQUARE

$27.99

$

Usually ships in 3-6 days

0

16

Toro AUH113233

HUB-BEARING

$250.99

$

Usually ships in 3-6 days

0

17

Toro AUH748210

BEARING-PITCH LINE

$80.99

$

Usually ships in 3-6 days

0

18

Toro AUH369496

SPACER

$78.99

$

Usually ships in 3-6 days

0

19

Toro AU103-11225

RING-RETAINING

$4.49

$

Usually ships in 3-6 days

0

20

Toro AUH113241

WASHER-10 GAUGE

$25.99

$

Usually ships in 3-6 days

0

21

Toro AUH357517

WASHER

$12.99

$

Usually ships in 3-6 days

0

22

Toro AU117652A1

HYD GEAR MOTOR ASM

$

$

Not available

23

Toro AUH113282

GEAR-MOUNTING, DRIVE

$342.99

$

Usually ships in 3-6 days

0

23A

Toro AU380530A1

KEY - Gear

Note: Not illustrated

$53.99

$

Usually ships in 3-6 days

0

24

Toro AU100-1168

RING - External Retaining, No. 68, External, 41/64 inch ID
(Superseded to 32151-79)

$6.49

$

Usually ships in 3-6 days

0

25

Toro AU493-41046

WASHER-TOOTHED, LOCK

$0.99

$

Usually ships in 3-6 days

0

26

Toro AU232-4117

NUT - Hex, Self-Locking, 7/16 inch NC

$0.99

$

Usually ships in 3-6 days

0

27

Toro AU100-21125

RING - Internal Retaining, No. 125, 1.388

$

$

Not available
