MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW HYDRAULIC CIRCUIT PLOW MOTOR SUPPLY AND RETURN LINES - P75 PLOW Parts Diagram

Maxi Sneaker Series E Trencher

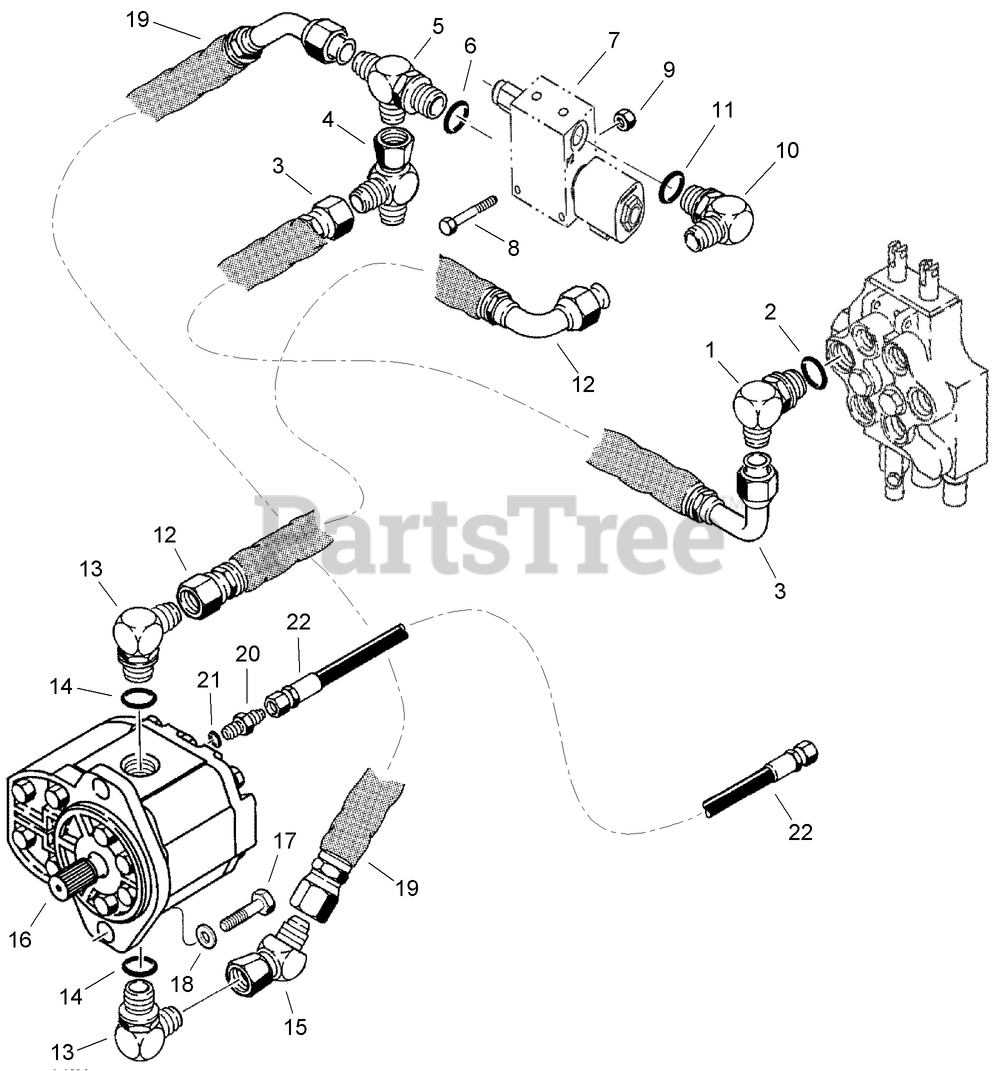

PLOW HYDRAULIC CIRCUIT PLOW MOTOR SUPPLY AND RETURN LINES - P75 PLOW Parts Diagram

  • Title

1

Toro AU218-5123

ELBOW-90 Adj 37FL 3/4 x 5/8 Tube

$12.99

$

Usually ships in 3-6 days

0

2

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 8

0

3

Toro AU183290A1

HOSE - 457 mm (18 inch) Long, Plow Lift / Swing Control Valve to Tee

$

$

Currently unavailable

4

Toro AU218-5221

FITTING-TEE

$62.99

$

Usually ships in 3-6 days

0

5

Toro AU218-5594

TEE - 1-1/16-12 Flare Branch x Flare x 7/8-14 inch Adj O-Ring

$164.99

$

Usually ships in 3-6 days

0

6

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 8

0

7

Toro AU106887

3 WAY HYD PLOW VALVE ASM

$1565.99

$

Usually ships in 3-6 days

0

8

Toro AU426-532

BOLT-Hex Hd 0.312 x 2.00 GR8 ZND

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU232-4115

NUT-HEX

$

$

Not available

10

Toro AU218-5123

ELBOW-90 Adj 37FL 3/4 x 5/8 Tube

$12.99

$

Usually ships in 3-6 days

0

11

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.99

$

In Stock, Qty 8

0

12

Toro AU183287A1

HOSE - 1143 mm (45 inch) Long, Control Valve to Upper Port of Plow Motor

$

$

Not available

13

Toro AU218-5118

ELBOW

$56.99

$

Usually ships in 3-6 days

0

14

Toro AU237-6016

O-RING - 1-11/64 ID x 7/64 inch Wide

$4.49

$

Usually ships in 3-6 days

0

15

Toro AU218-5175

ELBOW-45 Deg 12MJ x 12FJ

$

$

Not available

16

Toro AU142714A1

MOTOR ASSEMBLY - Plow

$2254.99

$

Usually ships in 3-6 days

0

17

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

18

Toro AUH274894

WASHER

$2.49

$

Usually ships in 3-6 days

0

19

Toro AU183288A1

HOSE - 1143 mm (45 inch) Long, Plow Motor to Control Valve

$

$

Not available

20

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6006

O-RING

$2.49

$

Usually ships in 3-6 days

0

22

Toro AUH362418

ASSEMBLY - Hose

$127.99

$

Usually ships in 3-6 days

0
