MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW MOTOR ASSEMBLY P75 PLOW Parts Diagram

Maxi Sneaker Series E Trencher

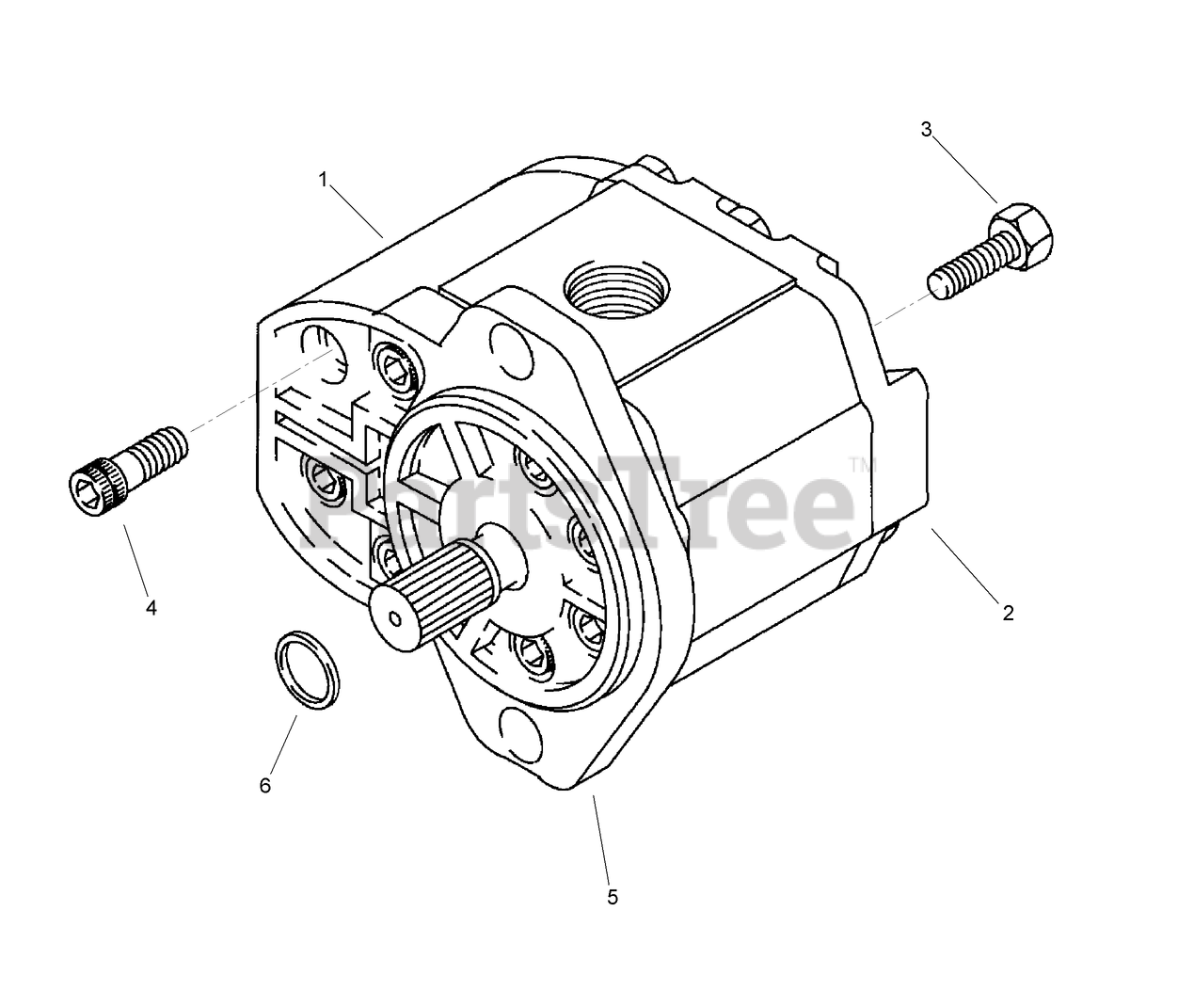

PLOW MOTOR ASSEMBLY P75 PLOW Parts Diagram

  • Title

Toro AU142714A1

MOTOR ASSEMBLY - Plow

Note: Not illustrated

$2044.99

$

Usually ships in 3-6 days

0

1

HOUSING - Plow Motor

Note: Not serviced separately

$

$

Not available

2

COVER - Plow Motor

Note: Not serviced separately

$

$

Not available

3

Toro AU614-10030

BOLT-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro AU864-10030

SCREW-Soc Hd, M10 x 30 Class 8.8 ZND
(Superseded to AU862-10030)

$1.49

$

Usually ships in 3-6 days

0

5

FLANGE - Mounting, Plow Motor

Note: Not serviced separately

$

$

Not available

6

Toro AU221174A1

SEAL - 25 x 42 x 6 mm, Shaft

$

$

Not available

Toro AU141151A1

KIT - Seal Replacement, includes three (3) O-rings, one (1) retaining ring, one (1) sealing ring, and one (1) 221174A1 shaft seal

Note: Not illustrated

$

$

Not available
