Maxi Sneaker Series E Trencher

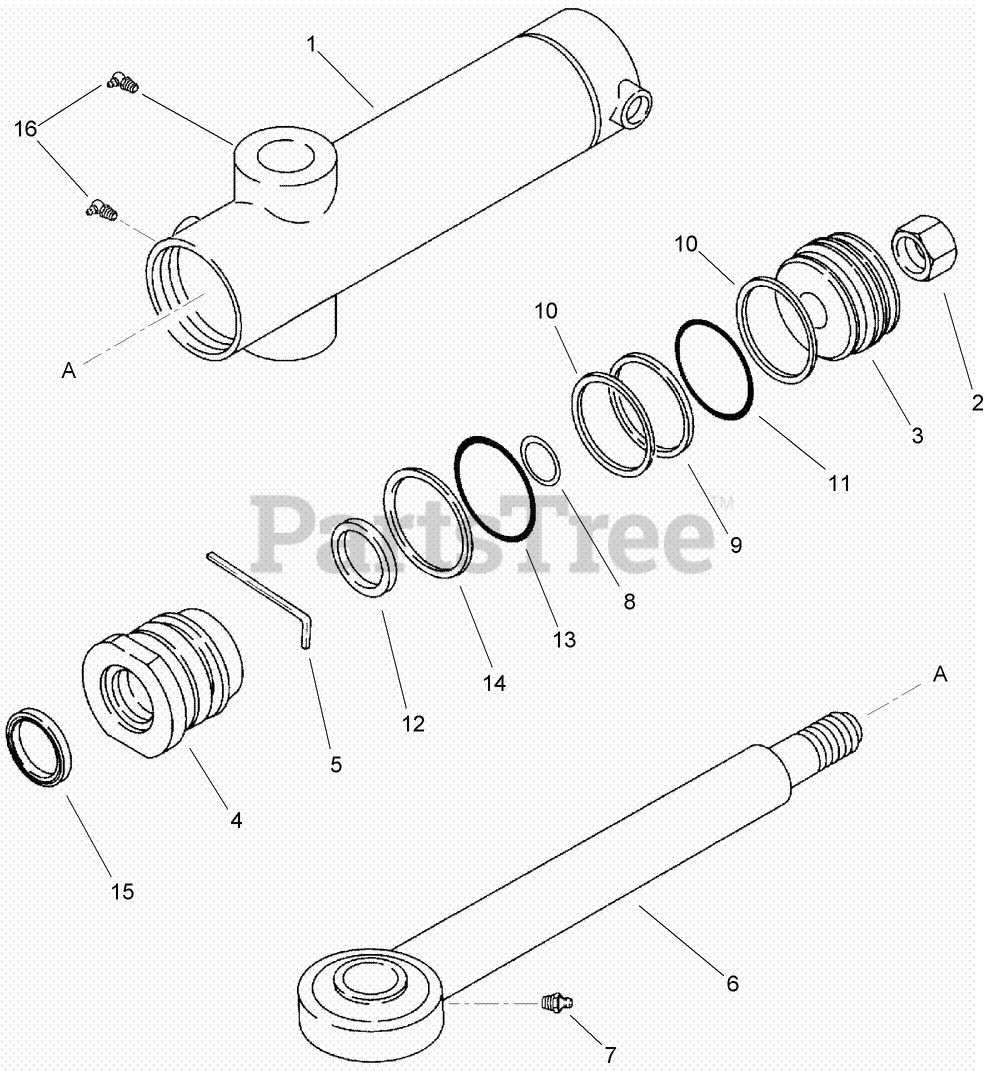

PLOW SWING CYCLINDER ASSEMBLY P75 PLOW Parts Diagram

  • Title

Toro AU230679A1

CYLINDER ASSEMBLY - 51 (2) ID x 143 mm (5-5/8 inch) Stroke, Plow Swing

Note: Not illustrated

$1386.99

$

Usually ships in 3-6 days

0

1

Toro AU244121A1

TUBE - Cylinder

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU231-41310

NUT - Hex, Self-Locking, 5/8 inch NC

Note: Not illustrated

$

$

Currently unavailable

3

Toro AU110501A1

PISTON - Cylinder

Note: Not illustrated

$

$

Currently unavailable

4

Toro AU108641C1

GLAND - Cylinder

Note: Not illustrated

$

$

Currently unavailable

5

Toro AU461180R1

RING - Retaining

Note: Not illustrated

$

$

Currently unavailable

6

Toro AU140227A1

ROD - Piston

Note: Not illustrated

$909.99

$

Usually ships in 3-6 days

0

7

Toro AU219-20

FITTING-grease, straight, 1/4-28 special threads x 1/2 inch

Note: Not illustrated

$2.49

$

Usually ships in 3-6 days

0

Toro AU110510A1

KIT - Seal Replacement

Note: Not illustrated

$140.99

$

Usually ships in 3-6 days

0

8

SEAL - Rod, Small

Note: Not serviced separately

$

$

Not available

8

SEAL - Rod, Small

Note: Not illustrated

$

$

Not available

9

SEAL - Piston

Note: Not illustrated

$

$

Not available

9

SEAL - Piston

Note: Not serviced separately

$

$

Not available

10

RING - Wear, Piston

Note: Not serviced separately

$

$

Not available

10

RING - Wear, Piston

Note: Not illustrated

$

$

Not available

11

O-RING - Piston Seal

Note: Not illustrated

$

$

Not available

11

O-RING - Piston Seal

Note: Not serviced separately

$

$

Not available

12

SEAL - U-Cup, Gland

Note: Not serviced separately

$

$

Not available

12

SEAL - U-Cup, Gland

Note: Not illustrated

$

$

Not available

13

Toro AU238-6326

O-RING - 1-5/8 ID x 3/16 inch Wide, Gland

Note: Not illustrated

$

$

Currently unavailable

14

Toro AU381293R1

RING - Backup, Gland O-Ring

Note: Not illustrated

$

$

Currently unavailable

15

Toro AU532773R1

WIPER - Piston Rod

Note: Not illustrated

$

$

Currently unavailable

16

Toro AU219-57

FITTING - Grease, 90 Degree, 1/4-28 Taper x 3/4 inch

Note: Not illustrated

$1.99

$

Usually ships in 3-6 days

0
