MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) PLOW SWING TOWER, LIFT ARM AND SKID SHOE ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

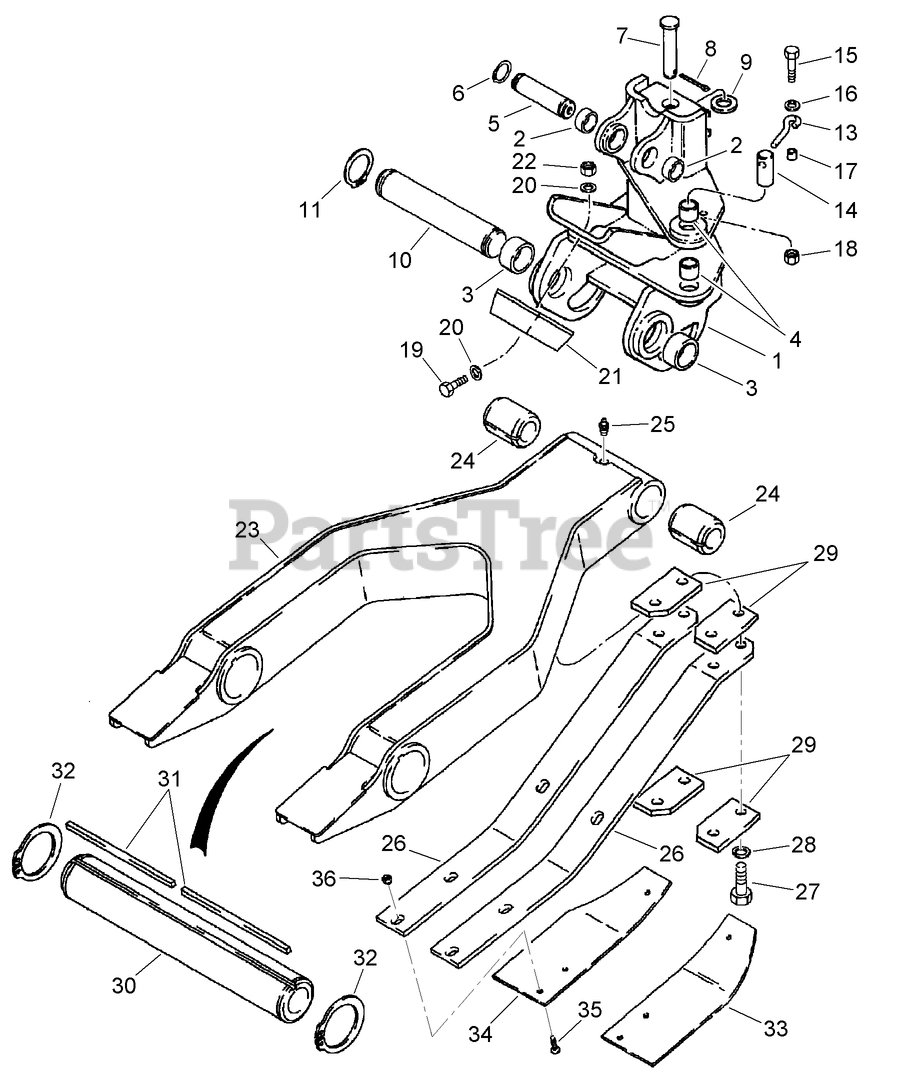

PLOW SWING TOWER, LIFT ARM AND SKID SHOE ASSEMBLY Parts Diagram

  • Title

1

Toro AU142208A2

TOWER - Plow Swing

$

$

Not available

2

Toro AUD36333

BUSHING-plow swing tower, upper pivot

$112.99

$

Usually ships in 3-6 days

0

3

Toro AUD33024

BUSHING-25 mm (1 inch) long, plow swing tower, lower pivot

$74.99

$

Usually ships in 3-6 days

0

4

Toro AUD51608

BUSHING-arm, 25 mm (1 inch) ID, plow swing tower, swing cylinder pivot

$86.99

$

Usually ships in 3-6 days

0

5

Toro AUD32933

PIN-pivot, swing tower, small

$176.99

$

Usually ships in 3-6 days

0

6

Toro AU103-16125

RING-RETAINING
(Superseded to 32151-77)

$4.99

$

In Stock, only 1 left!

0

7

Toro AUH65011

PIN-CLEVIS

$138.99

$

Usually ships in 3-6 days

0

8

Toro AU432-1632

PIN-Cotter 0.25 x 2.00 in ZN
(Superseded to 3272-33)

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU195-81015

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

10

Toro AUD45523

PIN-pivot, 10-7/8 inch long, swing tower, large

$450.99

$

Usually ships in 3-6 days

0

11

Toro AU103-16200

RING-RETAINING, EXTERNAL

$4.99

$

Usually ships in 3-6 days

0

13

Toro AUH313981

PIN-RETAINER

$62.99

$

Usually ships in 3-6 days

0

14

Toro AU127396A1

PIN-pivot

$174.99

$

Usually ships in 3-6 days

0

15

Toro AU426-528

BOLT-hex, 5/16 NC x 1-3/4 inch

$0.99

$

Usually ships in 3-6 days

0

16

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

17

Toro AUH53959

SPACER-13 mm (1/2 inch) long

$

$

Not available

18

Toro AU232-4115

NUT-HEX

$

$

Not available

19

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

20

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

21

Toro AUD90990

BUMPER
(Superseded to 136-3998)

$131.99

$

Usually ships in 3-6 days

0

22

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

23

Toro AU120729A1

ARM-plow lift

$

$

Not available

24

Toro AU248445A1

BUSHING-ARM, PLOW

$128.99

$

Usually ships in 3-6 days

0

25

Toro AU219-89

FITTING-grease, 45 degree, 1/8 PT self-tap x 25/32 inch

$3.99

$

Usually ships in 3-6 days

0

26

Toro AU127336A1

SHOE-skid, plow

$1070.99

$

Usually ships in 3-6 days

0

27

Toro AU426-828

BOLT-Hex Hd 1/2 x 1-3/4 GR5 ZND
(Superseded to 121-1524)

$3.49

$

Usually ships in 3-6 days

0

28

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, only 2 left!

0

29

Toro AU367436A1

PLATE-skid shoe support

$22.99

$

Usually ships in 3-6 days

0

30

Toro AU120745A1

PIN-pivot, rear

$1147.99

$

Usually ships in 3-6 days

0

31

Toro AU120746A1

KEY-square, 9.5 x 250 mm, plow pivot pin, rear

$333.99

$

Usually ships in 3-6 days

0

32

Toro AU103-11300

RING-external retaining, No. 300, rear plow pivot pin retaining

$4.99

$

Usually ships in 3-6 days

0

33

Toro AUH149666

PLATE-skid shoe, right-hand

$190.99

$

Usually ships in 3-6 days

0

34

Toro AUH149674

PLATE-skid shoe, left-hand

$167.99

$

Usually ships in 3-6 days

0

35

Toro AU164-152

BOLT-hex socket head, 3/8 NF x 1 inch, grade 8
(Superseded to AU362-43816)

$0.99

$

Usually ships in 3-6 days

0

36

Toro AU131-1326

NUT-hex jam, self-locking, 3/8 inch NF
(Superseded to AU425-156)

$1.49

$

Usually ships in 3-6 days
