MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) REEL CARRIER ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

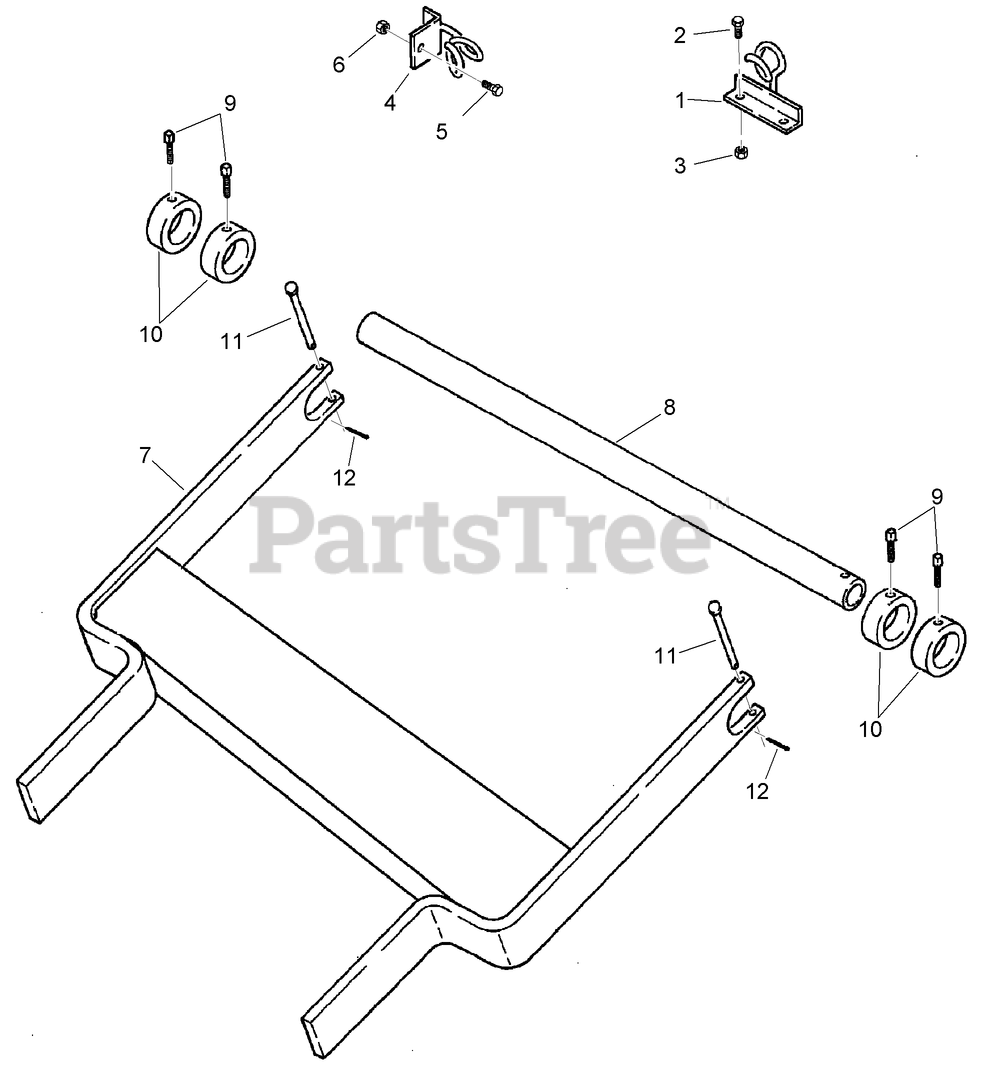

REEL CARRIER ASSEMBLY Parts Diagram

  • Title

Toro AU108744

ASSEMBLY - Reel Carrier

Note: Not illustrated

$

$

Currently unavailable

1

Toro AU118079A1

GUIDE - Cable, Front, Mounts to Hood

$

$

Not available

2

Toro AU426-512

BOLT

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU230-4215

NUT-Prev Trq 5/16 GRA CAD NONDIR

$1.99

$

Usually ships in 3-6 days

0

4

Toro AUH633081

GUIDE - Cable, Rear, Mounts to ROPS
(Superseded to AUH633081-03)

$170.99

$

Usually ships in 3-6 days

0

5

Toro AU426-612

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU230-4216

NUT
(Superseded to 603773)

$2.99

$

In Stock, Qty 20+

0

7

Toro AU108703

WELDMENT - Reel Carrier
(Superseded to 131-2125)

$969.99

$

Usually ships in 3-6 days

0

8

Toro AUH350363

PIPE - Reel Carrier
(Superseded to AUH350363-03)

$129.99

$

Usually ships in 3-6 days

0

9

Toro AU485-13816

SCREW - Set, Square Head, 3/8 NC x 1 inch, Cup Point
(Superseded to AU85-13816)

$0.99

$

Usually ships in 3-6 days

0

10

Toro AUH350355

COLLAR - Stop

$56.99

$

Usually ships in 3-6 days

0

11

Toro AUH230243

PIN-CLEVIS

$35.99

$

Usually ships in 3-6 days

0

12

Toro AU432-812

PIN-Cotter, 1/8 x 3/4 inch

$

$

Not available
