MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) STEERING AND ATTACHMENT LIFT CONTROL VALVE ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

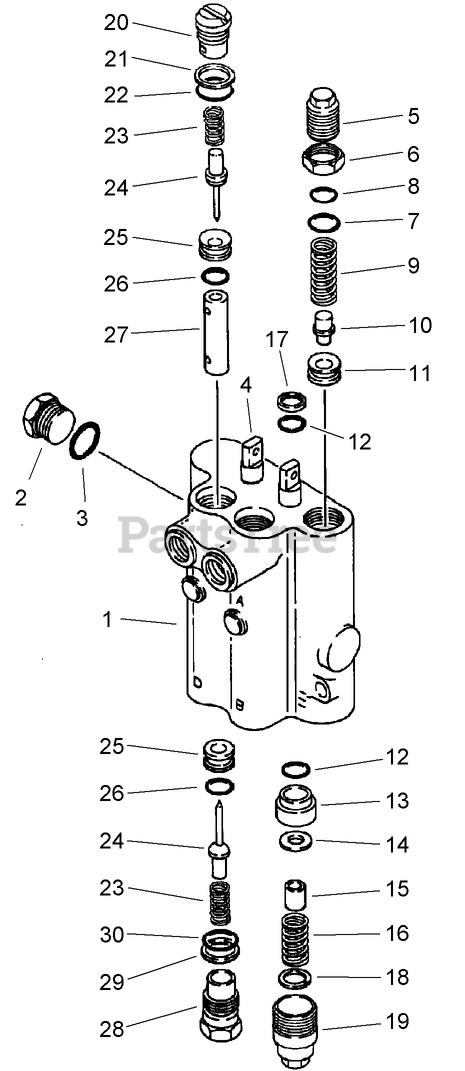

STEERING AND ATTACHMENT LIFT CONTROL VALVE ASSEMBLY Parts Diagram

  • Title

Toro AU407213A1

HYD STEERING VALVE ASM

Note: Not illustrated

$2572.99

$

Usually ships in 3-6 days

0

1

BODY - Valve

Note: Not serviced separately

$

$

Not available

1

Toro AUN9862

PLUG ASSEMBLY - Hex, 3/4 inch NF, Valve Body
(Superseded to 127-6239)

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

2

PLUG - Special, Valve Body

Note: Not serviced separately

$

$

Not available

3

Toro AU238-5114

O-RING
(Superseded to 60-5720)

$2.99

$

Usually ships in 3-6 days

0

4

SPOOL - Steering Control Valve

Note: Not serviced separately

$

$

Not available

4

Toro AU1971406C1

PLUG ASSEMBLY - Main Relief Valve

Note: Not illustrated

$

$

Not available

5

PLUG - Relief Valve

Note: Not serviced separately

$

$

Not available

6

Toro AU218-1278

NUT-LOCK, FTG

$

$

Not available

7

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUF12267

SHIM - 0.3 mm (.010 inch) Thick, Relief Valve
(Superseded to 58-6480)

$2.49

$

Usually ships in 3-6 days

0

8

Toro AUH746149

SHIM - 0.4 mm (.015 inch) Thick, Relief Valve

$1.49

$

Usually ships in 3-6 days

0

8

Toro AUH220798

SHIM - 0.9 mm (.035 inch) Thick, Relief Valve

$2.49

$

Usually ships in 3-6 days

0

9

Toro AU365228A1

SPRING - Valve

$

$

Currently unavailable

10

Toro AUH220962

POPPET - Valve

$222.99

$

Usually ships in 3-6 days

0

11

SEAT - Relief Valve

Note: Not serviced separately

$

$

Not available

12

Toro AUH438995

O-RING - Special
(Superseded to 58-6450)

$3.49

$

In Stock, only 2 left!

0

13

Toro AU674775R1

BUSHING - Spool

$

$

Currently unavailable

14

Toro AUN9256

WASHER - Flat, Special

$

$

Not available

15

Toro AUH438994

SPACER - Spacer

$

$

Currently unavailable

16

Toro AU674490R1

SPRING - Centering
(Superseded to 99-3531)

$44.99

$

Usually ships in 3-6 days

0

17

Toro AUH435703

SEAL - Wiper, Spool

$6.99

$

Usually ships in 3-6 days

0

18

Toro AUN9257

RING-RETAINING

$

$

Not available

19

Toro AUN9253

CAP - Valve Body, Valve Body
(Superseded to 58-6420)

$61.99

$

Usually ships in 3-6 days

0

19

Toro AUH636977

PLUG ASSEMBLY - Load Check, Seat Retaining
(Superseded to 99-3526)

Note: Not illustrated

$59.99

$

Usually ships in 3-6 days

0

20

PLUG - Seat Retaining

Note: Not serviced separately

$

$

Not available

21

Toro AUG32626

RING - Backup, Plug O-Ring

$

$

Not available

22

Toro AU238-6114

O-RING - 5/8 ID x 3/32 inch Wide

$0.99

$

Usually ships in 3-6 days

0

23

Toro AUH364182

LOCK-SPRING
(Superseded to 69-1810)

$10.99

$

Usually ships in 3-6 days

0

24

Toro AUF88777

POPPET
(Superseded to 58-6290)

$73.99

$

Usually ships in 3-6 days

0

24

Toro AUH636951

SEAT ASSEMBLY - Poppet
(Superseded to 58-6330)

Note: Not illustrated

$61.99

$

Usually ships in 3-6 days

0

25

SEAT - Poppet

Note: Not serviced separately

$

$

Not available

26

Toro AU238-5014

O-RING
(Superseded to AU130282)

$0.99

$

Usually ships in 3-6 days

0

27

Toro AUN14695

PLUNGER - Valve, Valve

$50.99

$

Usually ships in 3-6 days

0

27

Toro AUH636969

PLUG ASSEMBLY - Load Check, Lower Port

Note: Not illustrated

$76.99

$

Usually ships in 3-6 days

0

28

PLUG - Lower Port

Note: Not serviced separately

$

$

Not available

29

Toro AUG32626

RING - Backup, Plug O-Ring

$

$

Not available

30

Toro AU238-6114

O-RING - 5/8 ID x 3/32 inch Wide

$0.99

$

Usually ships in 3-6 days

0
