MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) STEERING HYDRAULIC CIRCUIT Parts Diagram

Maxi Sneaker Series E Trencher

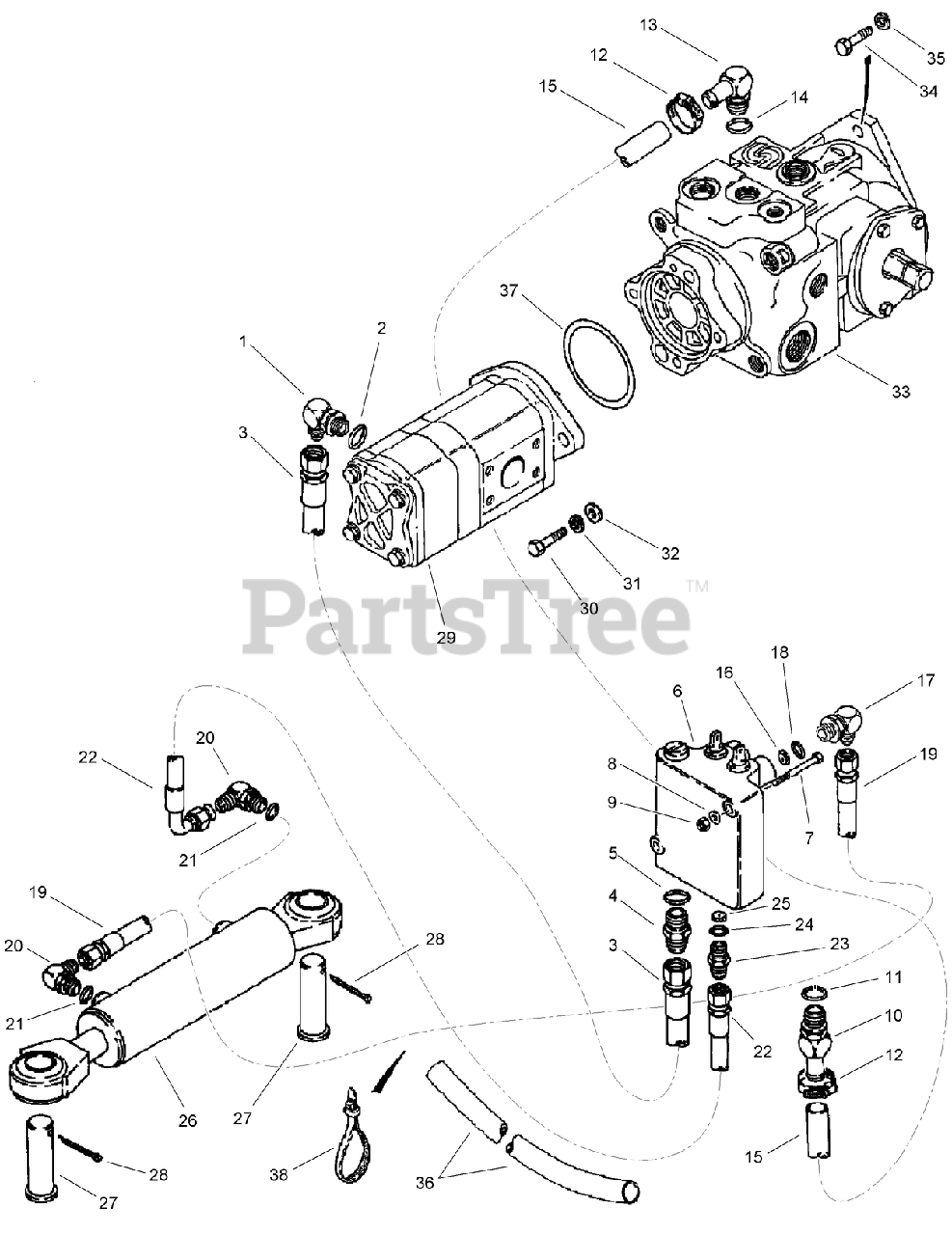

STEERING HYDRAULIC CIRCUIT Parts Diagram

  • Title

1

Toro AU218-5121

ELBOW-90 Deg, 1/2 to 5/8

$21.99

$

Usually ships in 3-6 days

0

2

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.49

$

In Stock, Qty 6

0

3

Toro AUH174672

HOSE - 610 mm (24 inch) Long, Pump to Steering Control Valve

$

$

Not available

4

Toro AU218-5059

CONNECTOR-Str Thd 1/2, 37FL-ORB 1/2

$4.99

$

Usually ships in 3-6 days

0

5

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU407213A1

HYD STEERING VALVE ASM

$2333.99

$

Usually ships in 3-6 days

0

7

Toro AU426-432

BOLT-1/4-20 x 2

$0.99

$

Usually ships in 3-6 days

0

8

Toro AUH426767

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

9

Toro AU232-4114

NUT-Prev Trq 1/4 GRC PHC Direct

$0.99

$

Usually ships in 3-6 days

0

10

Toro AU217-396

ADAPTER - Straight, 3/4 Stem End x 3/4-16 inch Adj O-Ring

$96.99

$

Usually ships in 3-6 days

0

11

Toro AU237-6008

O-RING
(Superseded to AU128825)

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU214-1412

CLAMP - Adj, 11/16 - 1-1/4 inch Dia

$1.49

$

Usually ships in 3-6 days

0

13

Toro AU217-351

ELBOW - 90 Degree, 3/4 Stem End x 1-1/16-12 inch Adj O-Ring Boss

$63.99

$

Usually ships in 3-6 days

0

14

Toro AU237-6012

O-RING - 59/64 ID x 7/64 inch Wide

$1.99

$

Usually ships in 3-6 days

0

15

Toro AUH434280

HOSE - 800 mm (31-1/2 in), Return, Steering Control Valve to Dual Pump

$101.99

$

Usually ships in 3-6 days

0

16

Toro AUH746875

PLATE-ORIFICE

$22.99

$

Usually ships in 3-6 days

0

17

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

18

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

19

Toro AUH172965

HOSE - 940 mm (37 inch) Long, Valve to Steering Cylinder, Rod End

$108.99

$

Usually ships in 3-6 days

0

20

Toro AU218-5105

ELBOW-90 DEG (ADJUSTABLE 37 DEG)

$3.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

22

Toro AUH249029

HOSE - 737 mm (29in) Long, Valve to Steering Cylinder, Closed End

$79.99

$

Usually ships in 3-6 days

0

23

Toro AU218-5057

CONNECTOR-Str Thd 3/8, 37FL-ORB 3/8

$4.49

$

Usually ships in 3-6 days

0

24

Toro AU237-6006

O-RING

$1.99

$

Usually ships in 3-6 days

0

25

Toro AUH206235

ORIFICE - 0.0520 inch, Restrictor, Steering Cylinder Rod End Circuit
(Superseded to AUH433173)

$32.99

$

Usually ships in 3-6 days

0

26

Toro AU86992252

CYLINDER ASSEMBLY - 60 (2-3/8in) ID x 127 mm (5in) Stroke, Steering
(Superseded to AU125471)

$1704.99

$

Usually ships in 3-6 days

0

27

Toro AUH67272

PIN-CLEVIS

$69.99

$

Usually ships in 3-6 days

0

28

Toro AU432-1628

PIN-COTTER

$2.99

$

Usually ships in 3-6 days

0

29

Toro AU188947A1

PUMP ASSEMBLY - Dual
(Superseded to 137-4680)

$2025.99

$

Usually ships in 3-6 days

0

30

Toro AU426-620

BOLT
(Superseded to 323-44)

$5.49

$

In Stock, Qty 11

0

31

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

32

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

33

Toro AU239918A1

HYD VARIABLE PUMP ASM

$3406.99

$

Usually ships in 3-6 days

0

34

Toro AU426-820

BOLT-Hex Hd 1/2 x 1-1/4 GR5 ZND

$1.49

$

Usually ships in 3-6 days

0

35

Toro AU492-11050

WASHER-Spring Lock Reg 1/2 ZND
(Superseded to 325-37)

$6.99

$

In Stock, only 2 left!

0

36

Toro AUD131789

SLEEVE - Hose Retaining, Protective, Hose

$7.49

$

Usually ships in 3-6 days

0

37

Toro AU238-5152

O-RING

$1.49

$

Usually ships in 3-6 days

0

38

Toro AUL18337

STRAP - Tie, 15 inch, Nylon, Retaining
(Superseded to AUL18331)

$2.49

$

Usually ships in 3-6 days

0
