MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) THROTTLE CONTROL CABLE AND REMOTE BATTERY POST MOUNTING ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

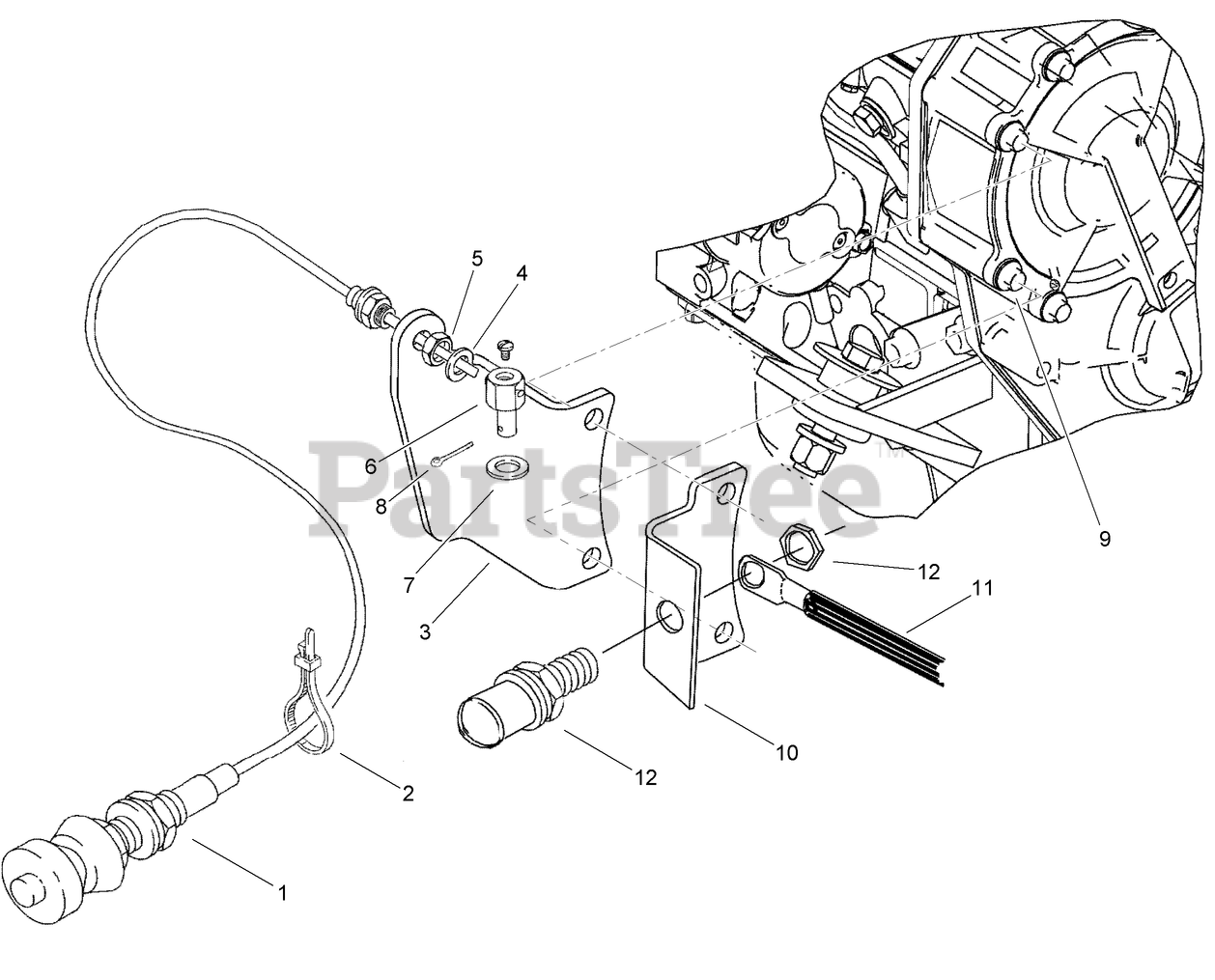

THROTTLE CONTROL CABLE AND REMOTE BATTERY POST MOUNTING ASSEMBLY Parts Diagram

  • Title

1

Toro AU112937A1

CABLE-THROTTLE

$184.99

$

Usually ships in 3-6 days

0

2

Toro AUL18337

STRAP - Tie, 15 inch, Nylon, Retaining
(Superseded to AUL18331)

$2.49

$

Usually ships in 3-6 days

0

3

Toro AU105083

BRACKET - Mounting, Cable

$

$

Currently unavailable

4

Toro AU496-21041

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU425-156

NUT-JAM, HEX

$1.49

$

Usually ships in 3-6 days

0

6

Toro AUH327494

SWIVEL

$101.99

$

Usually ships in 3-6 days

0

7

Toro AU495-11028

WASHER-FLAT

$

$

Not available

8

Toro AU432-616

PIN - Cotter .094 x 1.00 in Zn

$

$

Not available

9

Toro AU100326

SCREW, METRIC FLANGE w/BODY - M8 x 80 (used with optional remote battery post)

$

$

Currently unavailable

9

Toro AU111049

KIT - Remote Battery Post

$

$

Currently unavailable

9

Toro AU100327

SCREW, METRIC FLANGE w/BODY - M8 x 90 (used with optional remote battery post kit AU111049)

$5.99

$

Usually ships in 3-6 days

0

10

Toro AU110357

PLATE - Remote Battery Post Mounting (used with optional remote battery post kit AU111049)

$

$

Currently unavailable

11

Toro AU366009A1

CABLE - Starter

$151.99

$

Usually ships in 3-6 days

0

12

Toro AU105186

POST - Remote Battery (used with optional remote battery post kit AU111049)

$89.99

$

Usually ships in 3-6 days

0
