MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) TIRE AND WHEEL ASSEMBLY DUAL TIRE AND WHEEL Parts Diagram

Maxi Sneaker Series E Trencher

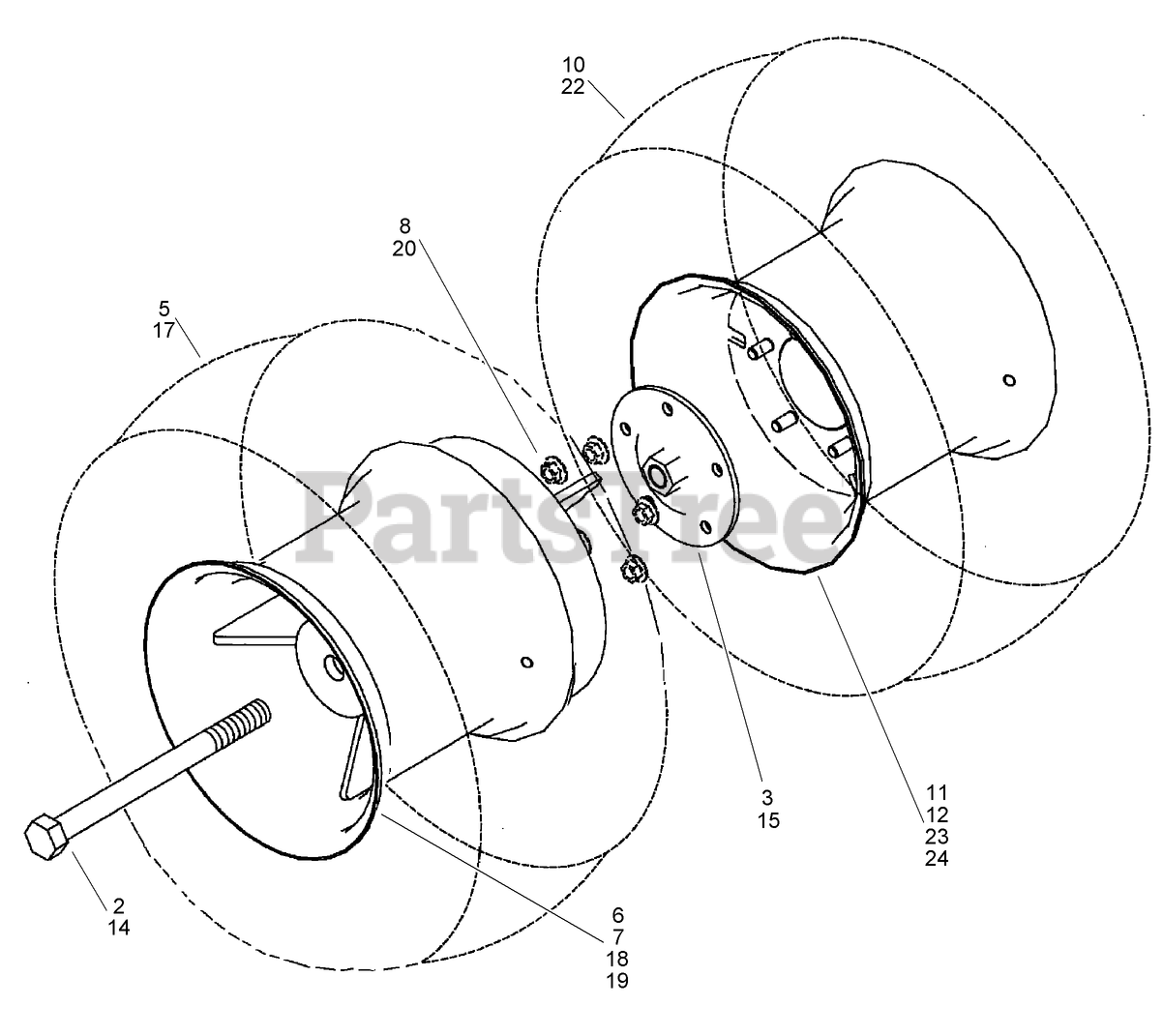

TIRE AND WHEEL ASSEMBLY DUAL TIRE AND WHEEL Parts Diagram

  • Title

Toro AU246186A1

ASSEMBLY - Dual Wheel, 23 x 10.50 x 12

Note: Not illustrated

$

$

Not available

1

Toro AUH830927

KIT - Dual Wheel Attach, 23 inch

Note: Not illustrated

$

$

Currently unavailable

2

Toro AU426-16160

SCREW-HH

$37.99

$

Usually ships in 3-6 days

0

3

Toro AU115949

PLATE-RETAINER
(Superseded to AU115949-03)

$319.99

$

Usually ships in 3-6 days

0

4

Toro AU246184A1

ASSEMBLY - Tire and Wheel

Note: Not illustrated

$

$

Currently unavailable

5

TIRE - 23 x 10.50 x 12 Galaxy (purchase locally)

Note: Not serviced separately

$

$

Not available

6

Toro AU222288A1

WHEEL-DUAL

$642.99

$

Usually ships in 3-6 days

0

7

Toro AUH261917

STEM - Valve, Tire Inflation
(Superseded to AUT57461)

$10.99

$

Usually ships in 3-6 days

0

8

Toro AU131-918

NUT

$1.49

$

Usually ships in 3-6 days

0

9

Toro AU223687A1

ASSY - Tire and Wheel

Note: Not illustrated

$

$

Not available

10

TIRE - 23 x 10.50 x 12 Galaxy (purchase locally)

Note: Not serviced separately

$

$

Not available

11

Toro AU113388A1

WHEEL - Rim, 8.50 x 12 inch, Used with 10.50 x 12 Tire

$

$

Not available

12

Toro AUT57461

STEM-Valve

$10.99

$

Usually ships in 3-6 days

0

Toro AU246185A1

ASSEMBLY - Dual Wheel, 26 x 12 x 12

Note: Not illustrated

$

$

Not available

13

Toro AUH830984

KIT - Dual Wheel Attach, 26 inch

Note: Not illustrated

$

$

Currently unavailable

14

Toro AU426-16192

SCREW-HH

$51.99

$

Usually ships in 3-6 days

0

15

Toro AU115949

PLATE-RETAINER
(Superseded to AU115949-03)

$319.99

$

Usually ships in 3-6 days

0

16

Toro AU246183A1

ASSEMBLY - Tire and Wheel

Note: Not illustrated

$

$

Not available

17

TIRE - 26 x 12 x 12 Galaxy (purchase locally)

Note: Not serviced separately

$

$

Not available

18

Toro AU222287A1

WHEEL-DUAL

$741.99

$

Usually ships in 3-6 days

0

19

Toro AUH261917

STEM - Valve, Tire Inflation
(Superseded to AUT57461)

$10.99

$

Usually ships in 3-6 days

0

20

Toro AU131-918

NUT

$1.49

$

Usually ships in 3-6 days

0

21

Toro AU223685A1

ASSY - Tire and Wheel

Note: Not illustrated

$

$

Not available

22

TIRE - 26 x 12 x 12 Galaxy (purchase locally)

Note: Not serviced separately

$

$

Not available

23

Toro AU122169A1

WHEEL - Rim, Used with 26 x 12 x 12 Tire

$457.99

$

Usually ships in 3-6 days

0

24

Toro AUT57461

STEM-Valve

$10.99

$

Usually ships in 3-6 days

0
