MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) TRENCHER CONTROL VALVE MOUNTING AND DRIVE CIRCUIT Parts Diagram

Maxi Sneaker Series E Trencher

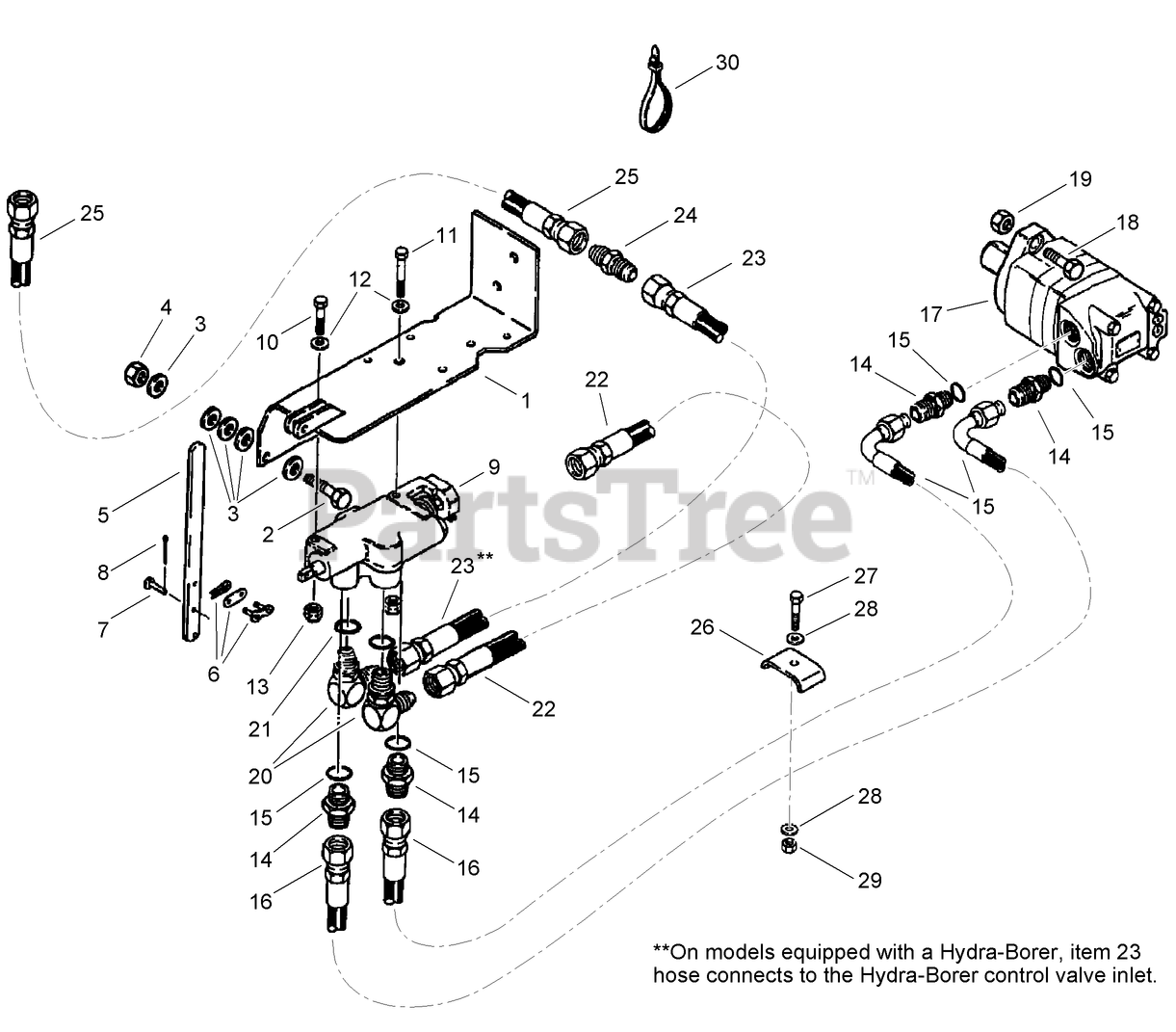

TRENCHER CONTROL VALVE MOUNTING AND DRIVE CIRCUIT Parts Diagram

  • Title

1

Toro AU179579A1

BRACKET - Switch and Valve Mounting

$

$

Not available

2

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

3

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

4

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU179581A1

LEVER-VALVE

$

$

Currently unavailable

6

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$7.99

$

In Stock, only 2 left!

0

7

Toro AUH35279

PIN-CLEVIS

$49.99

$

Usually ships in 3-6 days

0

8

Toro AU432-48

PIN - Cotter .062 x .50 in ZND
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 6

0

9

Toro AUH544718

HYD VALVE ASM

$3752.99

$

Usually ships in 3-6 days

0

10

Toro AU426-536

BOLT-Hex Hd 5/16 x 2-1/4
(Superseded to 322-11)

$1.49

$

In Stock, Qty 20+

0

11

Toro AU426-540

BOLT

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

13

Toro AU232-4115

NUT-HEX

$

$

Not available

14

Toro AU218-5062

CONNECTOR-Str Thd 5/8, 37FL-ORB 5/8

$7.99

$

Usually ships in 3-6 days

0

15

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.49

$

In Stock, only 1 left!

0

16

Toro AUH432609

HOSE - 2100 mm (82-11/16 inch) Long, 2100 mm Long, Control Valve to Trencher Drive Motor

$190.99

$

Usually ships in 3-6 days

0

17

Toro AU188974A1

HYD MOTOR ASM

$2153.99

$

Usually ships in 3-6 days

0

18

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

19

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

20

Toro AU218-5107

ELBOW-90 Adj 37FL 5/8 Tube

$8.99

$

Usually ships in 3-6 days

0

21

Toro AU237-6010

O-RING
(Superseded to 237-80)

$6.49

$

In Stock, only 1 left!

0

22

Toro AUL78468

HOSE - 940 mm (37 inch) Long (940 mm) Long, Trencher Control Valve Supply from Plow Double Pump

$

$

Not available

23

Toro AUH432542

HOSE - 400 mm (15-3/4 inch) Long (400 mm) Long, Trencher Control Valve Outlet to Plow Control Valve

$93.99

$

Usually ships in 3-6 days

0

24

Toro AU218-736

FITTING-UNION

$8.49

$

Usually ships in 3-6 days

0

25

Toro AUH431809

HOSE - 5/8 x 1600

$196.99

$

Usually ships in 3-6 days

0

26

Toro AUH46888

CLAMP

$35.99

$

Usually ships in 3-6 days

0

27

Toro AU426-528

BOLT-hex, 5/16 NC x 1-3/4 inch

$0.99

$

Usually ships in 3-6 days

0

28

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

29

Toro AU232-4115

NUT-HEX

$

$

Not available

30

Toro AUL18337

STRAP - Tie, 15 inch, Nylon, Retaining
(Superseded to AUL18331)

$2.49

$

Usually ships in 3-6 days

0
