MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) TRENCHER FRAME, DRIVE LINE AND MOUNTING ASSEMBLY Parts Diagram

Maxi Sneaker Series E Trencher

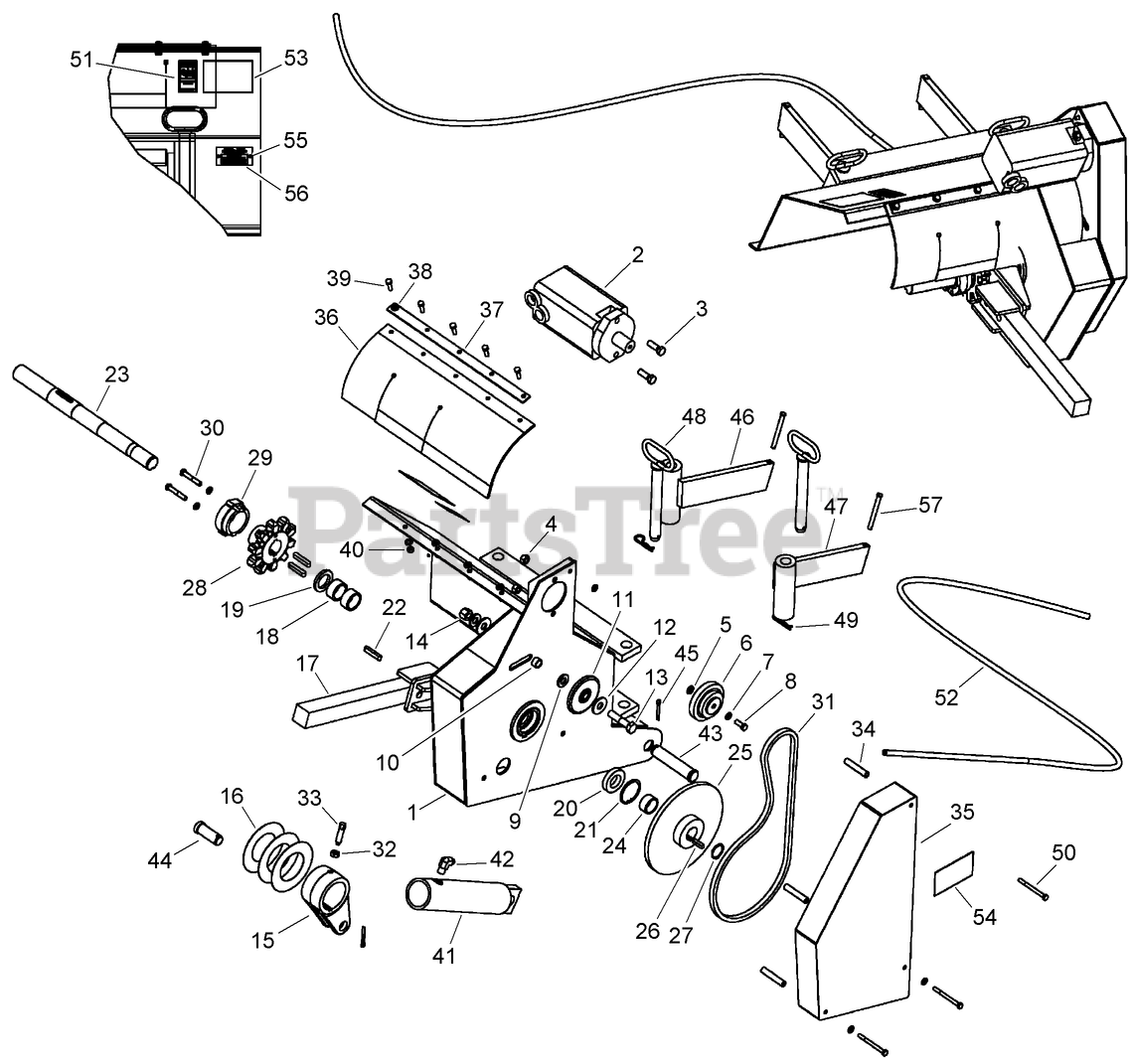

TRENCHER FRAME, DRIVE LINE AND MOUNTING ASSEMBLY Parts Diagram

  • Title

Toro AU106833

TRENCHER GROUP

Note: Not illustrated

$

$

Currently unavailable

1

Toro AUH660142

FRAME - Trencher

$

$

Not available

2

Toro AU188974A1

HYD MOTOR ASM

$2153.99

$

Usually ships in 3-6 days

0

3

Toro AU426-824

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

4

Toro AU230-4218

NUT-LOCK, HEX

$3.49

$

Usually ships in 3-6 days

0

5

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

6

Toro AUH660217

SPROCKET-DRIVE

$523.99

$

Usually ships in 3-6 days

0

7

Toro AU492-11038

WASHER-Spring Lock, Reg 3/8 ZND
(Superseded to 3253-21)

$0.99

$

In Stock, Qty 14

0

8

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

9

Toro AUH426809

WASHER-FLAT

$23.99

$

Usually ships in 3-6 days

0

10

Toro AUH114140

SPACER-SPROCKET, IDLER

$41.99

$

Usually ships in 3-6 days

0

11

Toro AU541857R92

IDLER BEARING AND SPROCKET ASM

$137.99

$

Usually ships in 3-6 days

0

12

Toro AU495-21069

WASHER-FLAT

$1.99

$

Usually ships in 3-6 days

0

13

Toro AU426-1044

BOLT-hex, 5/8 NC x 2-3/4 inch, grade 8
(Superseded to 110-4614)

$5.49

$

Usually ships in 3-6 days

0

14

Toro AU230-42110

NUT-HEX, CENTER LOCK

$3.99

$

Usually ships in 3-6 days

0

15

Toro AUH413492

CRANK-BOOM CYLINDER

$

$

Not available

16

Toro AUH261834

SHIM

$31.99

$

Usually ships in 3-6 days

0

17

Toro AU106541

MOUNT-BOOM
(Superseded to AU106541-03)

$3606.99

$

Usually ships in 3-6 days

0

18

Toro AUF7356

BEARING-NEEDLE

$51.99

$

Usually ships in 3-6 days

0

19

Toro AUH758854

SEAL-OIL

$24.99

$

Usually ships in 3-6 days

0

20

Toro AU38742

BEARING

$109.99

$

Usually ships in 3-6 days

0

21

Toro AU100-21244

RING - Internal Retaining, No. 244, Bearing Retaining

$46.99

$

Usually ships in 3-6 days

0

22

Toro AUH413625

KEY

$107.99

$

Usually ships in 3-6 days

0

23

Toro AU106634

SHAFT-DRIVE, TRENCHER

$707.99

$

Usually ships in 3-6 days

0

24

Toro AUH415562

SPACER

$46.99

$

Usually ships in 3-6 days

0

25

Toro AUH415554

SPROCKET-HEADSHAFT
(Superseded to AUH415554-03)

$729.99

$

Usually ships in 3-6 days

0

26

Toro AUH415604

KEY

$15.99

$

Usually ships in 3-6 days

0

27

Toro AU100-11137

RING-RETAINING

$2.49

$

Usually ships in 3-6 days

0

28

Toro AUH69773

SPROCKET

$249.99

$

Usually ships in 3-6 days

0

29

Toro AUH69930

HUB

$343.99

$

Usually ships in 3-6 days

0

30

Toro AU426-636

BOLT - Hex Hd .375 x 2.25 GR5 ZND

$

$

Not available

31

Toro AUH758862

CHAIN-68P

$156.99

$

Usually ships in 3-6 days

0

32

Toro AU425-158

NUT

$1.49

$

Usually ships in 3-6 days

0

33

Toro AUH33746

SCREW-SET, DOG POINT

$43.99

$

Usually ships in 3-6 days

0

34

Toro AUH413302

SPACER

$54.99

$

Usually ships in 3-6 days

0

35

Toro AUH660191

COVER - Chain
(Superseded to 127-1038)

$357.99

$

Usually ships in 3-6 days

0

36

Toro AUH426718

FLAP-DIRT

$279.99

$

Usually ships in 3-6 days

0

37

Toro AUH314237

STRIP-BACK

$27.99

$

Usually ships in 3-6 days

0

38

Toro AU495-11034

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

39

Toro AU426-516

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

40

Toro AU230-4215

NUT-Prev Trq 5/16 GRA CAD NONDIR

$1.99

$

Usually ships in 3-6 days

0

41

Toro AUH504076

HYD CYLINDER ASM

$2044.99

$

Usually ships in 3-6 days

0

42

Toro AU218-1053

ELBOW - 90, 37FL 3/8 Tube x 3/8 NPFT

$12.99

$

Usually ships in 3-6 days

0

43

Toro AUH257048

PIN

$148.99

$

Usually ships in 3-6 days

0

44

Toro AUH65011

PIN-CLEVIS

$138.99

$

Usually ships in 3-6 days

0

45

Toro AU432-1628

PIN-COTTER

$2.99

$

Usually ships in 3-6 days

0

46

Toro AUH660175

ARM - RH Mounting
(Superseded to AUH660175-03)

$379.99

$

Usually ships in 3-6 days

0

47

Toro AUH660183

ARM - LH Mounting
(Superseded to AUH660183-03)

$413.99

$

Usually ships in 3-6 days

0

48

Toro AUH660209

PIN - Mounting

$295.99

$

Usually ships in 3-6 days

0

49

Toro AUH32292

PIN-Hair

$1.49

$

Usually ships in 3-6 days

0

50

Toro AU426-556

BOLT

$0.99

$

Usually ships in 3-6 days

0

51

Toro AU103837

DECAL - Utility Contact Hazard

$2.49

$

Usually ships in 3-6 days

0

52

Toro AUH433468

HOSE - 2250 mm (88-5/8 inch) Long, Lower Right-hand Port of Selector Valve to Rod End of Trencher Lift Cylinder

$

$

Not available

53

Toro AUH438908

DECAL-Danger, Sharp Parts (small)

$15.99

$

Usually ships in 3-6 days

0

54

Toro AU321-3258

DECAL - Warning, Moving Chains

$

$

Not available

55

Toro AU104193

TACK-FASTENER, STEEL

$2.49

$

Usually ships in 3-6 days

0

56

Toro AU100572

PLATE - Serial Number

$

$

Currently unavailable

57

Toro AUH230243

PIN-CLEVIS

$35.99

$

Usually ships in 3-6 days

0
