MaxiSneaker - Toro Maxi Sneaker Series E Trencher (2011) TRENCHER NEUTRAL START SWITCH ASSEMBLY HARNESS, MOUNTING AND CONTROLS Parts Diagram

Maxi Sneaker Series E Trencher

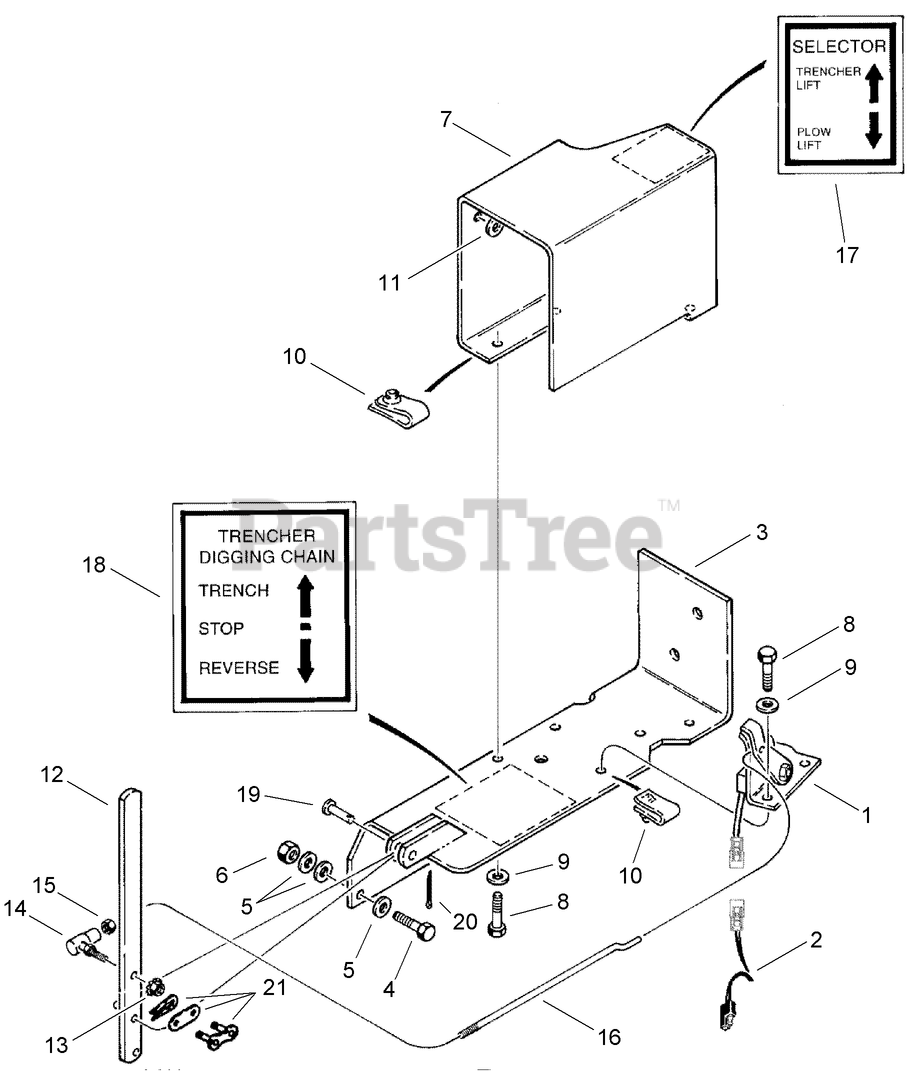

TRENCHER NEUTRAL START SWITCH ASSEMBLY HARNESS, MOUNTING AND CONTROLS Parts Diagram

  • Title

1

Toro AU106402A1

SWITCH ASSEMBLY - Neutral Start
(Superseded to AU106402A2)

$

$

Not available

2

Toro AU102472

HARNESS - Trencher Neutral Start Switch (connect to main wiring harness)

$31.99

$

Usually ships in 3-6 days

0

3

Toro AU179579A1

BRACKET - Switch and Valve Mounting

$

$

Not available

4

Toro AU426-616

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

5

Toro AU495-11041

WASHER-0.406 x 0.812 x 0.065 in CST ZND

$0.99

$

Usually ships in 3-6 days

0

6

Toro AU232-4116

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

7

Toro AU179582A1

COVER - Neutral Start Switch

$

$

Not available

8

Toro AU426-520

BOLT-Hex, 5/16 NC x 1-1/4 inch
(Superseded to 322-47)

$2.49

$

In Stock, Qty 20+

0

9

Toro AU496-11034

WASHER-FLAT
(Superseded to 94-6936)

$0.99

$

Usually ships in 3-6 days

0

10

Toro AUH346650

NUT-U TYPE

$2.49

$

Usually ships in 3-6 days

0

11

Toro AU495-21038

WASHER - Flat, 3/8 x 7/8 x 3/32 inch

$0.99

$

Usually ships in 3-6 days

0

12

Toro AU179581A1

LEVER-VALVE

$

$

Currently unavailable

13

Toro AU193-1000

NUT-KEPS Ext T Washer #10-32 UNF ZP

$2.49

$

Usually ships in 3-6 days

0

14

Toro AUL12437

JOINT-Ball

$8.49

$

Usually ships in 3-6 days

0

15

Toro AU225-14210

NUT - Hex, #10-32 UNF, 303 Stainless Steel

$

$

Not available

16

Toro AU179590A1

ROD-SWITCH, NEUTRAL

$52.99

$

Usually ships in 3-6 days

0

17

Toro AUH419119

DECAL - Selector, Trencher Lift/Plow Lift

$21.99

$

Usually ships in 3-6 days

0

18

Toro AUH419101

DECAL - Trencher Digging Chain, Trench/Stop/Reverse

$19.99

$

Usually ships in 3-6 days

0

19

Toro AUH35279

PIN-CLEVIS

$49.99

$

Usually ships in 3-6 days

0

20

Toro AU432-48

PIN - Cotter .062 x .50 in ZND
(Superseded to 3272-1)

$0.99

$

In Stock, Qty 10

0

21

Toro AU241-1315

LINK-#50, CONNECT (SINGLE PITCH)
(Superseded to 116-6897)

$7.99

$

Usually ships in 3-6 days

0
