MB-580 - Echo Mister / Blower (SN: D02026001001 - D02026999999) Fan Case, Lower Tank Parts Diagram

Mister / Blower

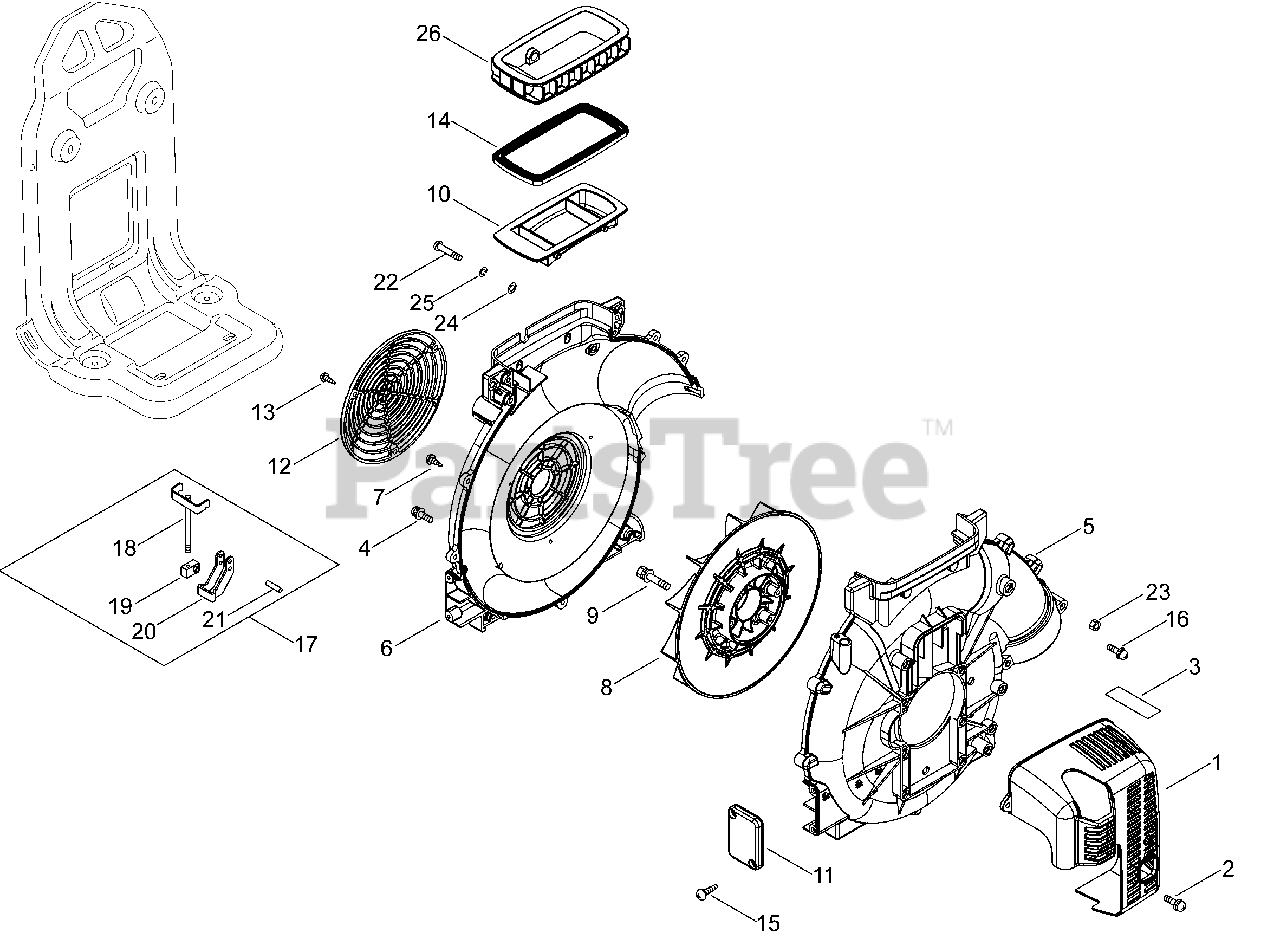

Fan Case, Lower Tank Parts Diagram

  • Title

1

Echo A190000500

COVER, ENGINE

$65.99

$

Usually ships in 2-4 days

0

2

Echo 90029205020

SCREW 5×20

$2.99

$

Usually ships in 2-4 days

0

3

Echo X505002310

LABEL, CAUTION - HOT

$2.49

$

Usually ships in 2-4 days

0

4

Echo 90029205014

SCREW 5×14 SUS

$2.99

$

Usually ships in 2-4 days

0

5

Echo E103001021

CASE, FAN

$134.99

$

Usually ships in 2-4 days

0

6

Echo 20010507714

COVER, FAN

$106.99

$

Usually ships in 2-4 days

0

7

Echo 90028605025

SCREW 5×25 SUS

$2.99

$

Usually ships in 2-4 days

0

8

Echo 20000506210

FAN

$119.99

$

Usually ships in 2-4 days

0

9

Echo 90014805035

BOLT 5×35

$0.99

$

Usually ships in 2-4 days

0

10

Echo E109000050

HOLDER, TANK - LOWER

$8.99

$

Usually ships in 2-4 days

0

11

Echo E109000060

PLUG, FAN CASE

$

$

Not available

12

Echo 20012409860

GUARD, DEBRIS
(Superseded to 20012409861)

$5.49

$

Usually ships in 2-4 days

0

13

Echo 90028605016

SCREW 5×16 SUS

$0.99

$

Usually ships in 2-4 days

0

14

Echo 27001806210

GASKET, LOWER TANK

$10.99

$

Usually ships in 2-4 days

0

15

Echo 90028605016

SCREW 5×16 SUS

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90029205014

SCREW 5×14 SUS

$2.99

$

Usually ships in 2-4 days

0

17

Echo 25090206310

RETAINER ASSY, CHEMICAL TANK

Note: Includes Items 18-21

$142.99

$

Usually ships in 2-4 days

0

18

Echo 25091506310

BOLT

$50.99

$

Usually ships in 2-4 days

0

19

Echo 25093006210

CONNECTOR, BRACKET

$9.49

$

Usually ships in 2-4 days

0

20

Echo 25093206210

RETAINER, CHEMICAL TANK

$48.99

$

Usually ships in 2-4 days

0

21

Echo V625000010

PIN 7

$3.99

$

Usually ships in 2-4 days

0

22

Echo 21042504110

BOLT 5

$2.49

$

Usually ships in 2-4 days

0

23

Echo 90056250005

NUT, LOCK M5

$1.49

$

In Stock, Qty 5

0

24

Echo 90060400005

WASHER SS 5mm

$0.99

$

In Stock, Qty 20+

0

25

Echo 90060900005

WASHER, SPRING 5 SUS

$0.99

$

Usually ships in 2-4 days

0

26

Echo 27001006212

TANK, LOWER

$58.99

$

Usually ships in 2-4 days

0
