MC 2255 - Jonsered Brushcutter (2008-07) IGNITION SYSTEM CLUTCH Parts Diagram

Brushcutter

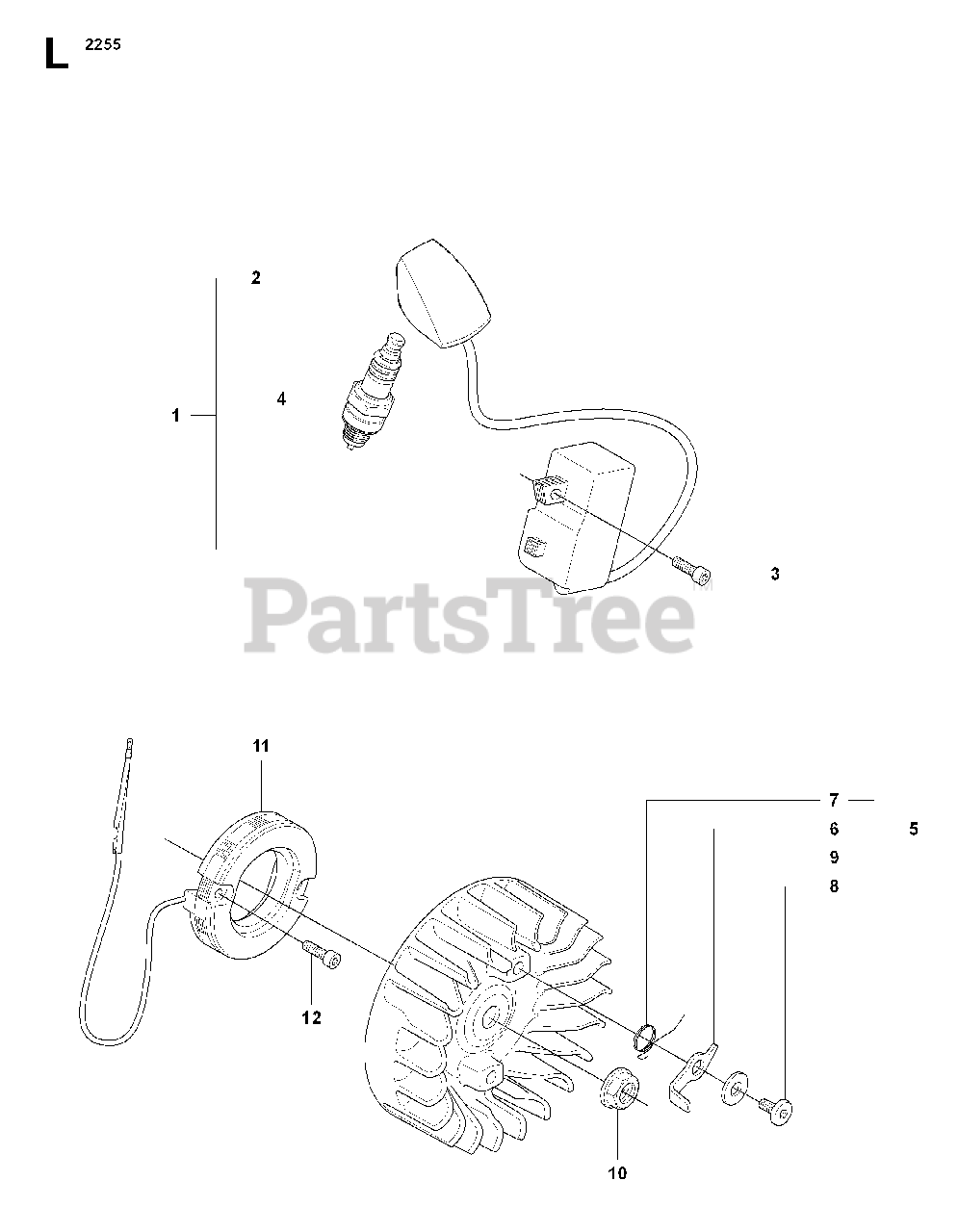

IGNITION SYSTEM CLUTCH Parts Diagram

  • Title

1

Jonsered 540055501

No Description Available

Note: BC2255

$

$

Not available

1

Jonsered 540055601

No Description Available

Note: FC2255 FC2255W

$

$

Not available

2

Jonsered 544307001

No Description Available

Note: . 1

$

$

Not available

3

Jonsered 503202516

SCREW

$3.49

$

Usually ships in 3-10 days

0

4

Jonsered 503235111

BPMR7A NGK SPARK PLUG

Note: NGK BPMR

$3.99

$

In Stock, Qty 20+

0

5

Jonsered 537240501

FLYWHEEL ASSY

Note: BC2255 FC2255

$113.99

$

Usually ships in 3-10 days

0

5

Jonsered 537240502

FLYWHEEL ASSY

Note: FC2255W

$

$

Not available

6

Jonsered 503812401

STARTER PAWL

Note: . 5

$5.99

$

Usually ships in 3-10 days

0

7

Jonsered 503812901

SPRING
(Superseded to 503812902)

Note: . 5

$3.49

$

Usually ships in 3-10 days

0

8

Jonsered 501819903

PIN, STARTER CATCH

Note: . 5

$5.99

$

In Stock, only 3 left!

0

9

Jonsered 503230042

WASHER

Note: . 5

$3.49

$

In Stock, only 2 left!

0

10

Jonsered 503220401

NUT W/ WASHER

$5.49

$

In Stock, Qty 5

0

11

Jonsered 537256302

GENERATOR STARTER

Note: FC2255W

$96.99

$

Usually ships in 3-10 days

0

12

Jonsered 544444301

SCREW

Note: FC2255W

$

$

Not available
