MC10000 (9809-0) - Generac Portable Generator Generator Cradle Drawing No. 92562 Parts Diagram

Portable Generator

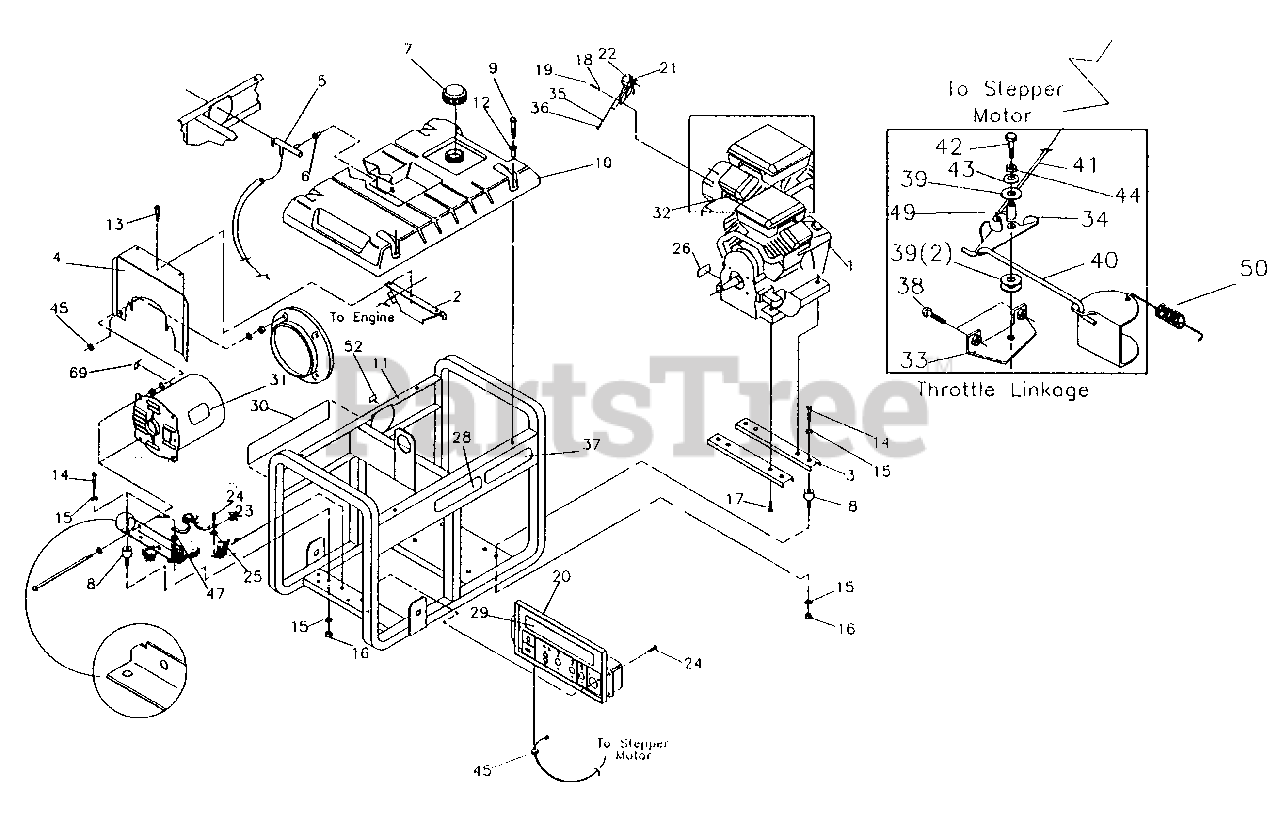

Generator Cradle Drawing No. 92562 Parts Diagram

  • Title

1

NSP

ENGINE, GENERAC POWER SYSTEMS

$

$

Not available

2

Briggs & Stratton 93074

SHIELD, HEAT ENGINE

$

$

Currently unavailable

3

Briggs & Stratton 77304

SUPPORT, ENGINE

$

$

Not available

4

Briggs & Stratton 90916

SHIELD, HEAT-STATOR

$

$

Currently unavailable

5

Briggs & Stratton 80270

VALVE, FUEL SHUT-OFF
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299

BUSHING, FUEL VALVE
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 90878

CAP, FUEL TANK
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

8

Briggs & Stratton 35097

MOUNTS, VIBRATION
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 78831B

CAPSCREW
(Superseded to 78831BGS)

$

$

Not available

10

Briggs & Stratton 93615

TANK, FUEL
(Superseded to 93615GS)

$

$

Not available

11

Briggs & Stratton 92558

CRADLE
(Superseded to 92558GS)

$799.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83465

GROMMET, FUEL TANK MOUNTING
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

13

Briggs & Stratton 56892

CRIMPTITE
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23152

CAPSCREW
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

WASHER

$

$

Not available

16

Briggs & Stratton 22241

NUT

$

$

Not available

17

Briggs & Stratton 75246

SELF-TAPPING
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22129

WASHER
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 39253

CAPSCREW
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 92557

ASSY, CONTROL PANEL

$

$

Not available

21

Briggs & Stratton 92102

ASY, STEPPER MOTOR

$

$

Currently unavailable

22

Briggs & Stratton 95350

ASSY, GROUND WIRE
(Superseded to 200107GS)

$31.99

$

Usually ships in 2-12 days

0

23

18553621

CAPSCREW

$

$

Not available

24

Briggs & Stratton 86292

WASHER
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

DECAL, ENGINE
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79661N

DECAL, GROUND
(Superseded to 79661NGS)

$2.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 92982

DECAL, DANGER
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 92563

DECAL, CONTROL PANEL
(Superseded to 92563GS)

$39.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 93016

DECAL, SIDE PANEL

$

$

Not available

31

Briggs & Stratton 78817

DECAL, DATA PLATE
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 77816

DECAL, CAUTION HOT MUFFLER
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 95349

PLATE, ADJUSTING
(Superseded to 95349GS)

$7.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 95348

BELL CRANK
(Superseded to 95348GS)

$7.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 70005

LOCK WASHER
(Superseded to 70005GS)

$2.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 43146

CAPSCREW
(Superseded to 43146GS)

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 93826

START INST DECAL
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 74041

PHILLIPS HEAD SCREW

$

$

Currently unavailable

39

Briggs & Stratton 96716

NYLON WASHER
(Superseded to 96716GS)

$2.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 95921

STEPPER MOTOR-TO-BELL-CRANK LINKAGE
(Superseded to 95921GS)

$12.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 95920

BELL CRANK-TO-THROTTLE LINKAGE
(Superseded to 95920GS)

$16.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 33141

WASHER
(Superseded to 33141GS)

$3.49

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 51713

FLAT WASHER
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 49226

LOCK WASHER
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 62265

RUBBER GROMMET
(Superseded to 62265GS)

$8.49

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 22261

SHAKEPROOF WASHER
(Superseded to 22261GS)

$3.49

$

In Stock, only 2 left!

0

49

Briggs & Stratton 96378

SPACER
(Superseded to 96378GS)

$7.49

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 96717

SPRING
(Superseded to 96717GS)

$58.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 81886

STA-BIL DECAL
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 73054

FUEL-SHUTOFF DECAL

$

$

Not available

69

-----

UNKNOWN

$

$

Not available
