MC1259 (0640-0) - Generac Air Compressor, 125 PSI Control Panel Parts Diagram

Air Compressor, 125 PSI

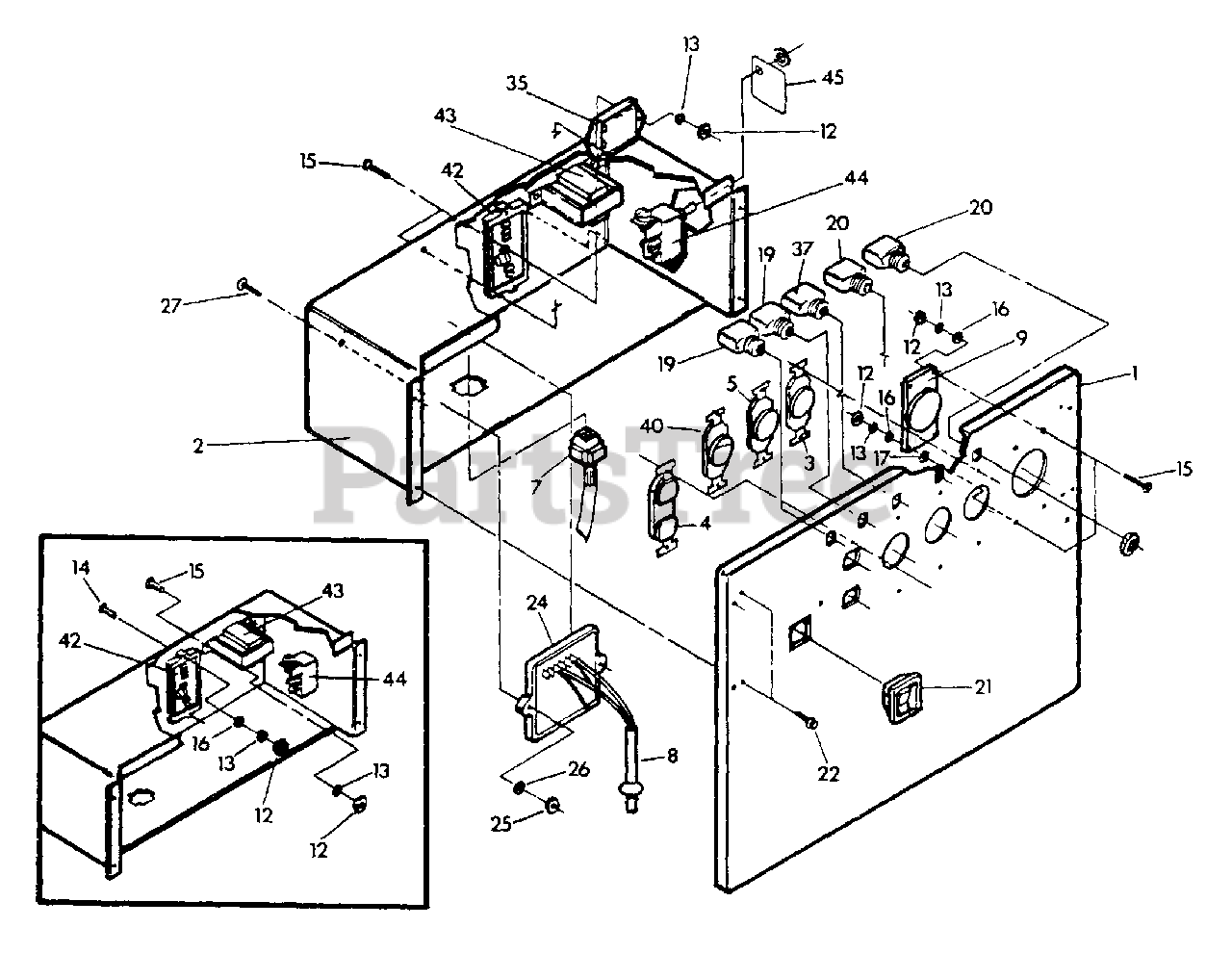

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 79720

Control Panel

$

$

Currently unavailable

2

Briggs & Stratton 79223

Control Panel Cover

$

$

Not available

3

Briggs & Stratton 43437

120/240 volt, 30 amp Twistlock

$

$

Not available

4

Briggs & Stratton 63025

120 volt, 15 amp Duplex
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

120 volt, 30 amp Twistlock
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63933

Connector

$

$

Currently unavailable

8

Briggs & Stratton 77244

Field Boost Assembly

$

$

Currently unavailable

9

Briggs & Stratton 74191

250 Volts, 50 amp Receptacle
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

M6 Lock Washer

$

$

Not available

13

Briggs & Stratton 22264

M6 Lock Washer

$

$

Not available

14

Briggs & Stratton 80077

M4-0.7 x 20mm Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

15

Briggs & Stratton 75475

M4-0.7 x 10mm Screw

$

$

Not available

16

Briggs & Stratton 43180

M4 Flat Washer
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43180

M4 Flat Washer
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

M4 Shakeproof Washer
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

19

Briggs & Stratton 75207D

15 amp Circuit Breaker
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

30 amp Circuit Breaker

$

$

Not available

21

Briggs & Stratton 66817

Engine Switch Control
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 63036

No. 8-18 x 1/4" Crimptite Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 81918

AC Voltage Regulator

$

$

Currently unavailable

25

Briggs & Stratton 51716

M5-0.8 Hex Nut
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 79224

M5-0.8 x 30mm Screw

$

$

Not available

35

Briggs & Stratton 77314

Thermal Relay

$

$

Not available

36

Briggs & Stratton 75207B

10 amp Circuit Breaker
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 75207

20 amp Circuit Breaker
(Superseded to 209872GS)

$9.99

$

In Stock, only 1 left!

0

40

Briggs & Stratton 74190

120 volt, 20 amp Twistlock

$

$

Not available

42

Briggs & Stratton 67632D

Idle Control Circuit Board Assm.
(Superseded to 67632DGS)

$179.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 77278C

Idle Control Transformer
(Superseded to 77278CGS)

$76.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 55869

Toggle Switch

$

$

Currently unavailable

45

Briggs & Stratton 76255

Idle Control Decal

$

$

Currently unavailable
