MC8000 (9807-1) - Generac Portable Generator, Rev 0 (1995-05) Generator Cradle Parts Diagram

Portable Generator, Rev 0

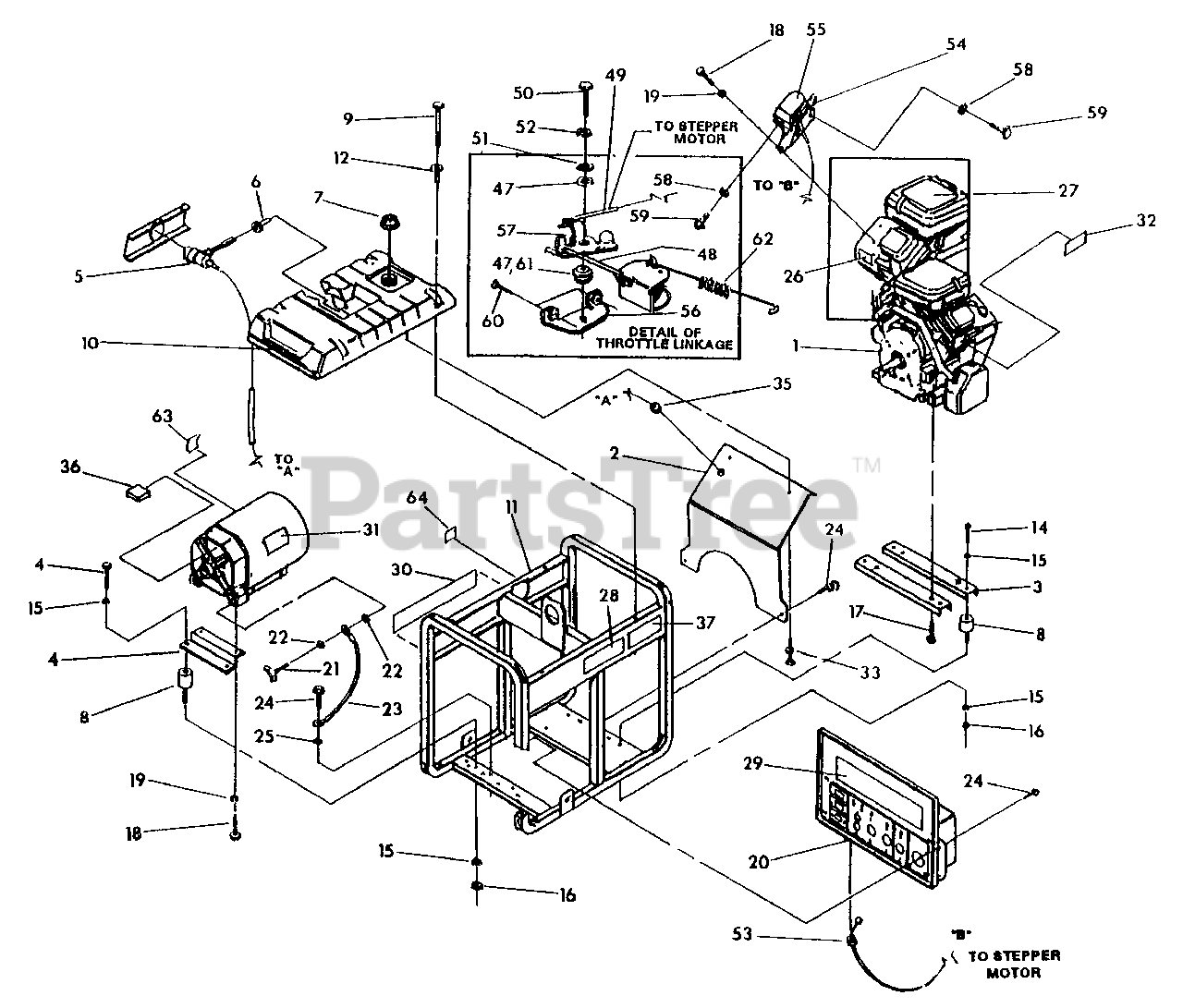

Generator Cradle Parts Diagram

  • Title

1

Briggs & Stratton 85109

16 HP V-Twin Engine

$

$

Currently unavailable

2

Briggs & Stratton 92352

Heat Shield

$

$

Not available

3

Briggs & Stratton 77304

Engine Support

$

$

Not available

4

Briggs & Stratton 78512

Alternator Support
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270

Fuel Shut-off Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299

Fuel Valve Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 90878

Fuel Tank Cap
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

8

Briggs & Stratton 35097

Vibration Mounts
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 78831B

M6-1.0 x 60mm Capscrew
(Superseded to 78831BGS)

$

$

Not available

10

Briggs & Stratton 93615

Fuel Tank
(Superseded to 93615GS)

$

$

Not available

11

Briggs & Stratton 92558

Cradle
(Superseded to 92558GS)

$799.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83465

Fl. Tank Mtg. Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 23152

3/8"-16 x 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

16

Briggs & Stratton 22241

3/8"-16 Hex Nut

$

$

Not available

17

Briggs & Stratton 75246

3/8"-16 x 1-1/4" Screw
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 39253

M8-1.25 x 16mm Capscrew
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 95940

Control Panel Assm.
(Superseded to 95940GS)

$

$

Not available

21

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 26850

M6 Shakeproof Washer

$

$

Not available

23

14353621

Ground Wire

$

$

Not available

24

Briggs & Stratton 86292

#10 Self-drill Capscrew
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

#10 Shakeproof Washer
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79661G

Engine Decal

$

$

Currently unavailable

27

Briggs & Stratton 77581

Airbox Decal
(Superseded to 77581GS)

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 92982

Danger-stop Decal
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 92514

Control Panel Decal
(Superseded to 92514GS)

$37.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 93015

Unit Decal

$

$

Not available

31

Briggs & Stratton 78817

Data Plate Decal
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 77816

Caution Hot Muffler Decal
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 70542

M6-1.0 x 16mm Capscrew

$

$

Currently unavailable

35

Briggs & Stratton 38057

Rubber Grommet
(Superseded to 38057GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

Power Module
(Superseded to 84132GS)

$126.99

$

In Stock, only 2 left!

0

37

Briggs & Stratton 93826

Start Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 96716

Nylon Step Washer
(Superseded to 96716GS)

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 95920

Linkage, Stepper Motor to Bell Crank
(Superseded to 95920GS)

$16.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95921

Linkage, Bell Crank to Throttle
(Superseded to 95921GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 33141

#10-32 x 3/4 HHCS
(Superseded to 33141GS)

$3.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 51713

M5 Flat Washer
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 62265

Rubber Grommet
(Superseded to 62265GS)

$8.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 92102

Stepper Motor

$

$

Currently unavailable

55

Briggs & Stratton 95350

Stepper Motor Bracket
(Superseded to 200107GS)

$31.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 95349

Adjust Plate
(Superseded to 95349GS)

$7.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 95348

Bell Crank
(Superseded to 95348GS)

$7.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 70005

M6 Lock Washer
(Superseded to 70005GS)

$2.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 43146

M6-1.00 x 10 HHCS
(Superseded to 43146GS)

$7.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 74041

M5-0.8 x 20 Phillips Head Screw

$

$

Currently unavailable

61

Briggs & Stratton 96387

Spacer

$

$

Currently unavailable

62

Briggs & Stratton 96717

Spring
(Superseded to 96717GS)

$58.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 81886

STA-BIL Decal
(Superseded to 81886GS)

$12.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 73054

Fuel Shut Off Decal

$

$

Not available
