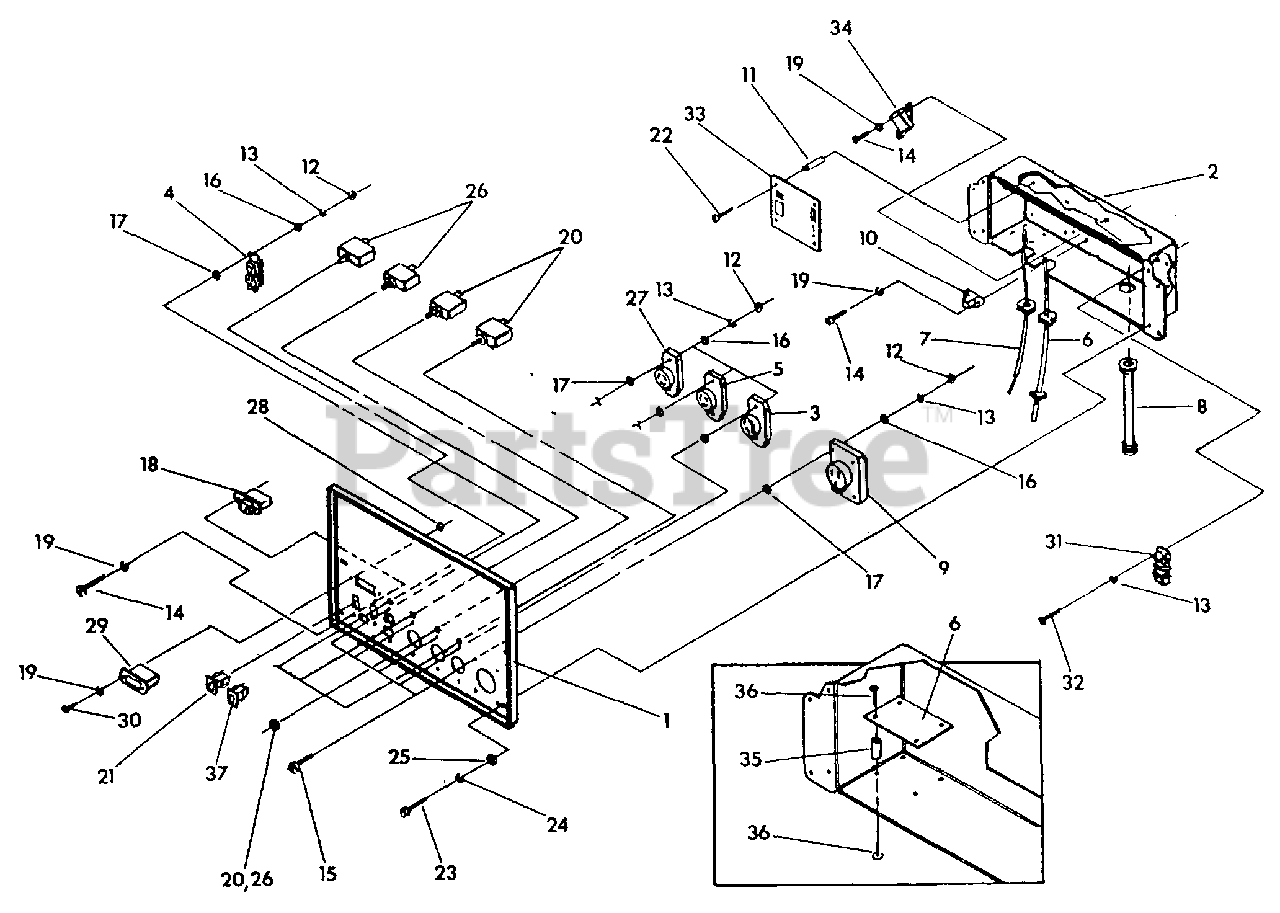

MC8000 (9807-2) - Generac Portable Generator Control Panel Parts Diagram

Portable Generator

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 95941

Control Panel

$

$

Not available

2

Briggs & Stratton 95906

Control Panel Box

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240V, 30A Locking Type Receptacle

$

$

Not available

4

Briggs & Stratton 80409

120V, 20A Duplex GFCI Outlet
(Superseded to 80409GS)

$102.99

$

In Stock, Qty 5

0

5

Briggs & Stratton 68868

120V, 30A Locking Type Recp.
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 83970

System Control Board
(Superseded to 83970GS)

$

$

Not available

7

Briggs & Stratton 93043

Engine Harness Assembly
(Superseded to 691616)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 84134

Rubber Grommet Connector
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 74191

250V, 50A Receptacle
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 87962

12V, 10A Auto Restart Circuit Breaker
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93929

1/2" Hex Stand Off
(Superseded to 93929GS)

$1.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

#8 Lock Washer

$

$

Not available

14

Briggs & Stratton 43181

M3-0.5 x 10 Screw
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10 Mach. Screw

$

$

Not available

16

Briggs & Stratton 38150

#8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

#8 Shakeproof
(Superseded to 5023365)

$462.99

$

In Stock, only 2 left!

0

18

Briggs & Stratton 66822

12V DC Outlet & Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 43182

M3 Lock Washer
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

20

75207A

30A Circuit Breaker

$

$

Not available

21

Briggs & Stratton 78653

ON-OFF Switch
(Superseded to 78653GS)

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 93986

M3-0.5x20mm Mach. Screw
(Superseded to 93986GS)

$3.49

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 91526

M5-0.8 x 12 Screw

$

$

Not available

24

Briggs & Stratton 49226

M5 Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 23897

M5 Flat Washer
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 75207

20A Circuit Breaker
(Superseded to 209872GS)

$9.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 74190

120V, 20A Locking Type Outlet

$

$

Not available

28

Briggs & Stratton 51714

M3-0.5 Hex Nut
(Superseded to 51714GS)

$3.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 77604

Hobbs Hour Meter
(Superseded to 77604GS)

$112.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 55823

M3-0.5 x 16 Screw
(Superseded to 55823GS)

$1.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 92953

50A 3-Terminal Terminal Block
(Superseded to 92953GS)

$17.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 80077

M4-0.7 x 20 Mach. Screw
(Superseded to 80077GS)

$4.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 94117

Idle Control Board
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 84028

Idle Control Transformer
(Superseded to 84028GS)

$47.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 64525

3/4" Hex Stand-Off

$

$

Currently unavailable

36

Briggs & Stratton 64526

#6-32 x 3/8" Tap Screw

$

$

Not available

37

Briggs & Stratton 82538

On-Off Switch
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0
