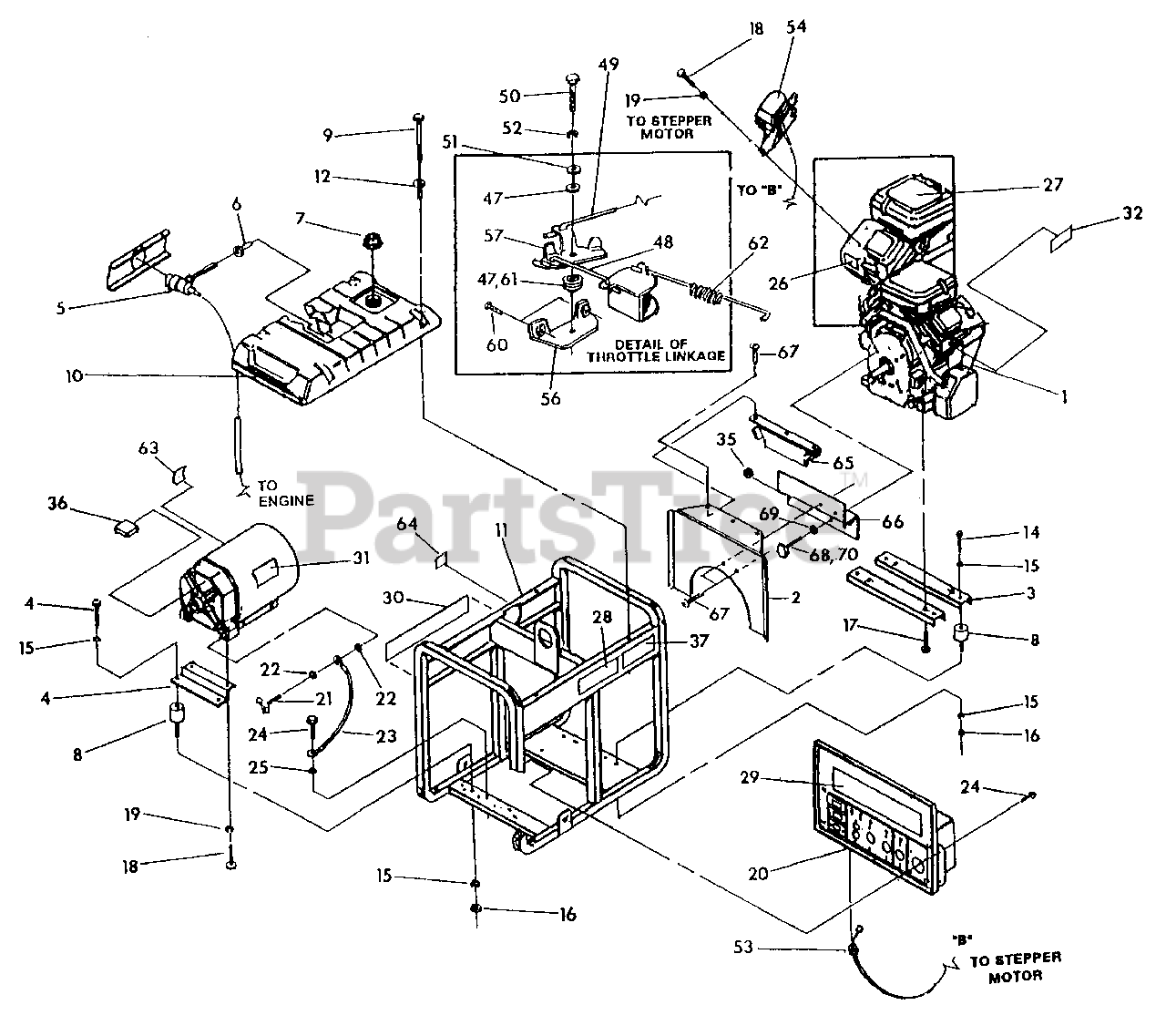

MC8000 (9807-2) - Generac Portable Generator Cradle Parts Diagram

Portable Generator

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 85109

16HP V-Twin Engine

$

$

Currently unavailable

2

Briggs & Stratton 98216

Heat Shield

$

$

Not available

3

Briggs & Stratton 77304

Engine Support

$

$

Not available

4

Briggs & Stratton 78512

Support Alternator
(Superseded to 78512GS)

$27.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 80270

Fuel Shut-Off Valve
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

6

Briggs & Stratton 78299

Fuel Valve Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

7

Briggs & Stratton 90878

Fuel Tank Cap
(Superseded to 846987)

$21.99

$

In Stock, Qty 6

0

8

Briggs & Stratton 35097

Vibration Mounts
(Superseded to 35097GS)

$16.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 788318

M6-1.0 x 60mm Capscrew

$

$

Currently unavailable

10

Briggs & Stratton 93615

Fuel Tank
(Superseded to 93615GS)

$

$

Not available

11

Briggs & Stratton 92558

Cradle
(Superseded to 92558GS)

$799.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83465

Fuel Tank Mount Grommet
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 20+

0

14

Briggs & Stratton 23152

3/8-16 x 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

16

Briggs & Stratton 22241

3/8-16" Hex Nut

$

$

Not available

17

Briggs & Stratton 75246

3/8-16" x 1-1/4" Screw
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 39253

M8
(Superseded to 39253GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 22129

MS Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 95940

Control Panel Assembly
(Superseded to 95940GS)

$

$

Not available

21

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 26850

M6 Shakeproof Washer

$

$

Not available

23

14353621

Ground Wire

$

$

Not available

24

Briggs & Stratton 86292

#10 Self Drilling Screw
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 23762

#10 Shakeproof Washer
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 79661G

Engine Decal

$

$

Currently unavailable

27

Briggs & Stratton 77581

Airbox V-Twin Decal
(Superseded to 77581GS)

$5.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 92982

Danger Stop Decal
(Superseded to 194799GS)

$11.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 92514

Control Panel Decal
(Superseded to 92514GS)

$37.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 93015

Unit Decal

$

$

Not available

31

Briggs & Stratton 78817

Data Plate Decal
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 77816

Caution Hot Muffler Decal
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 62265

Rubber Grommet
(Superseded to 62265GS)

$8.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 84132

Power Module
(Superseded to 84132GS)

$126.99

$

In Stock, only 3 left!

0

37

Briggs & Stratton 93826

Start Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 96716

Nylon Step Washer
(Superseded to 96716GS)

$2.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 95920

Stepper Motor to Bell Crank Linkage
(Superseded to 95920GS)

$16.99

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 95921

Bell Crank to Throttle Linkage
(Superseded to 95921GS)

$12.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 36935

#10-32 x 3/4" Mach. Screw

$

$

Not available

51

Briggs & Stratton 51713

M5 Flat Washer
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 49226

MS Lock Washer
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 62265

Rubber Grommet
(Superseded to 62265GS)

$8.49

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 96867

Stepper Motor Assembly
(Superseded to 96867GS)

$261.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 95349

Adjust Plate
(Superseded to 95349GS)

$7.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 95348

Bell Crank
(Superseded to 95348GS)

$7.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 74041

M5-0.8 x 20 Screw

$

$

Currently unavailable

61

Briggs & Stratton 96378

Spacer
(Superseded to 96378GS)

$7.49

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 96717

Spring
(Superseded to 96717GS)

$58.99

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 73054

Fuel Shut Off Decal

$

$

Not available

63

UNKNOWN

$

$

Not available

65

Briggs & Stratton 93074

Heat Shield

$

$

Currently unavailable

66

Briggs & Stratton 98214

Heat Shield Bracket
(Superseded to 98214GS)

$21.99

$

Usually ships in 2-12 days

0

67

Briggs & Stratton 56892

#10-24 x 3/8" Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

68

Briggs & Stratton 26359

7/16-14 x 3/4" Bolt

$

$

Currently unavailable

69

Briggs & Stratton 22250

7/16 Flat Washer
(Superseded to 5022250)

$9.49

$

In Stock, only 1 left!

0

70

Briggs & Stratton 86495

Loctite 272 Thread Locker

$

$

Currently unavailable
