MCE 1437-A - Murray 14" Chainsaw, 37cc (2014) Body Group (MCS1437) Parts Diagram

14" Chainsaw, 37cc

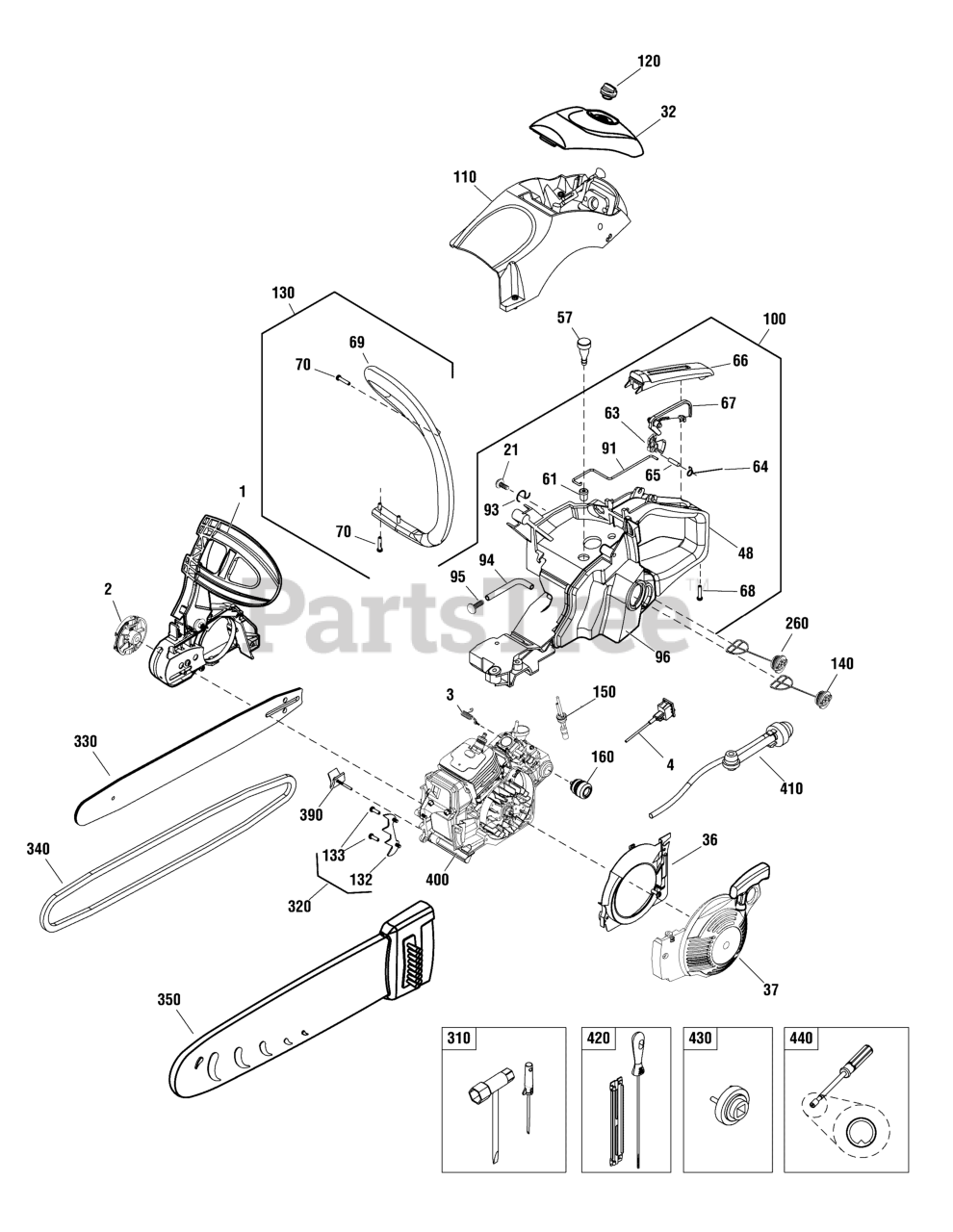

Body Group (MCS1437) Parts Diagram

  • Title

1

CHAIN BRAKE ASSEMBLY, Pewter

Note: (Not available in Pewter. Order CS00222A)

$

$

Not available

1

Murray CS00222A

CHAIN BRAKE ASSEMBLY, Silver
(Superseded to 706669)

$79.99

$

Usually ships in 2-12 days

0

2

Murray CS00440A

EASY TENSION RATCHET ASSEMBLY
(Superseded to 706698)

$31.99

$

Usually ships in 2-12 days

0

3

Murray CS00392A

SPRING
(Superseded to 706762)

$5.99

$

Usually ships in 2-12 days

0

4

Murray CS00399A

SWITCH, Off
(Superseded to 706771)

$9.99

$

Usually ships in 2-12 days

0

21

SCREW, ST4.2 x 9.5

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

32

COVER, Air Filter, Black

Note: (Not available in Black. Order CS00259A)

$

$

Not available

32

Murray CS00259A

COVER, Air Filter, Blue
(Superseded to 706685)

$17.99

$

Usually ships in 2-12 days

0

36

Murray CS00268A

COVER, Guide Flow
(Superseded to 706689)

$7.99

$

Usually ships in 2-12 days

0

37

STARTER ASSEMBLY, Pewter

Note: (Not available in Pewter. Order CS00269A)

$

$

Not available

37

Murray CS00269A

STARTER ASSEMBLY, Silver
(Superseded to 706766)

$63.99

$

Usually ships in 2-12 days

0

48

BASE ASSEMBLY

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

57

Murray CS00074A

BALANCER ASSEMBLY
(Superseded to 706655)

$10.99

$

Usually ships in 2-12 days

0

61

GROMMET

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

63

TRIGGER

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

64

SPRING, Torsion, Trigger

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

65

PIN, 5 x 24

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

66

Murray CS00313A

COVER, Rear Handle
(Superseded to 706690)

Note: (Not a serviceable part. Order Ref. No. 100)

$25.99

$

Usually ships in 2-12 days

0

67

PRESENCE TRIGGER

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

68

SCREW, ST4.8 x 25

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

69

HANDLE ASSEMBLY, Front

Note: (Not a serviceable part. Order Ref. No. 130)

$

$

Not available

70

SCREW, Tapping, ST4.8 x 25

Note: (Not a serviceable part. Order Ref. No. 130)

$

$

Not available

91

THROTTLE LINK

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

93

CIRCLIP

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

94

TUBE, Vent, 3.5 x 6.5 x 80

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

95

SCREW, ST4.2 x 14

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

96

TANK, Fuel

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

100

HANDLE ASSEMBLY, Rear, Black

Note: (Not available in Black. Order CS00400A)

$

$

Not available

100

Murray CS00400A

HANDLE ASSEMBLY, Rear, Silver
(Superseded to 706714)

$72.99

$

Usually ships in 2-12 days

0

110

COVER ASSEMBLY, Upper, Black

Note: (Not available in Black. Order CS00391A)

$

$

Not available

110

Murray CS00391A

COVER ASSEMBLY, Upper, Blue
(Superseded to 706683)

$25.99

$

Usually ships in 2-12 days

0

120

Murray CS00199A

KNOB, Air Filter
(Superseded to 706729)

$7.49

$

Usually ships in 2-12 days

0

130

Murray CS00396A

HANDLE ASSEMBLY, Front
(Superseded to 706712)

Note: (Includes Ref. Nos. 69 & 70)

$44.99

$

Usually ships in 2-12 days

0

132

BUMPER, Spiked

Note: (Not a serviceable part. Order Ref. No. 320)

$

$

Not available

133

SCREW, M5 x 10

Note: (Not a serviceable part. Order Ref. No. 320)

$

$

Not available

140

Murray CS00297A

FUEL CAP ASSEMBLY
(Superseded to 706706)

$11.99

$

Usually ships in 2-12 days

0

150

Murray CS00289A

FUEL FILTER ASSEMBLY
(Superseded to 706709)

$17.99

$

Usually ships in 2-12 days

0

160

Murray CS00394A

SHOCK BUMPER ASSEMBLY
(Superseded to 706751)

$5.99

$

Usually ships in 2-12 days

0

260

Murray CS00301A

CAP, Oil
(Superseded to 706663)

$13.99

$

Usually ships in 2-12 days

0

310

Murray CS00216A

TOOL PACK
(Superseded to 706776)

$38.99

$

Usually ships in 2-12 days

0

320

Murray CS00209A

SPIKED BUMPER ASSEMBLY
(Superseded to 706761)

$14.99

$

Usually ships in 2-12 days

0

330

Murray CS00004A

BAR, Oregon, 14"

Note: (Not a serviceable part.)

$

$

Currently unavailable

340

Murray CS00009A

CHAIN, Oregon, 14" - 3/8"

Note: (Not a serviceable part.)

$

$

Currently unavailable

350

COVER, Bar

Note: (Not a serviceable part.)

$

$

Not available

390

Murray CS00405A

CHAIN CATCH ASSEMBLY
(Superseded to 706671)

$5.99

$

Usually ships in 2-12 days

0

400

ENGINE ASSEMBLY, 37cc

Note: (Not a serviceable part.)

$

$

Not available

410

Murray CS00397A

PRIMER BULB
(Superseded to 706744)

$16.99

$

Usually ships in 2-12 days

0

420

Murray CS00388A

* FILE & GUIDE PACK, 5/32"
(Superseded to 706645)

$17.99

$

Usually ships in 2-12 days

0

430

Murray CS00409A

* TOOL, Clutch Removal
(Superseded to 706647)

$294.99

$

Usually ships in 2-12 days

0

440

Murray TL18068A

* TOOL, Carburetor Adjustment
(Superseded to 706646)

$18.99

$

Usually ships in 2-12 days

0
