MCS 1845-A - Murray 18" Chainsaw, 45cc (2014) Body Group (MCS1845) Parts Diagram

18" Chainsaw, 45cc

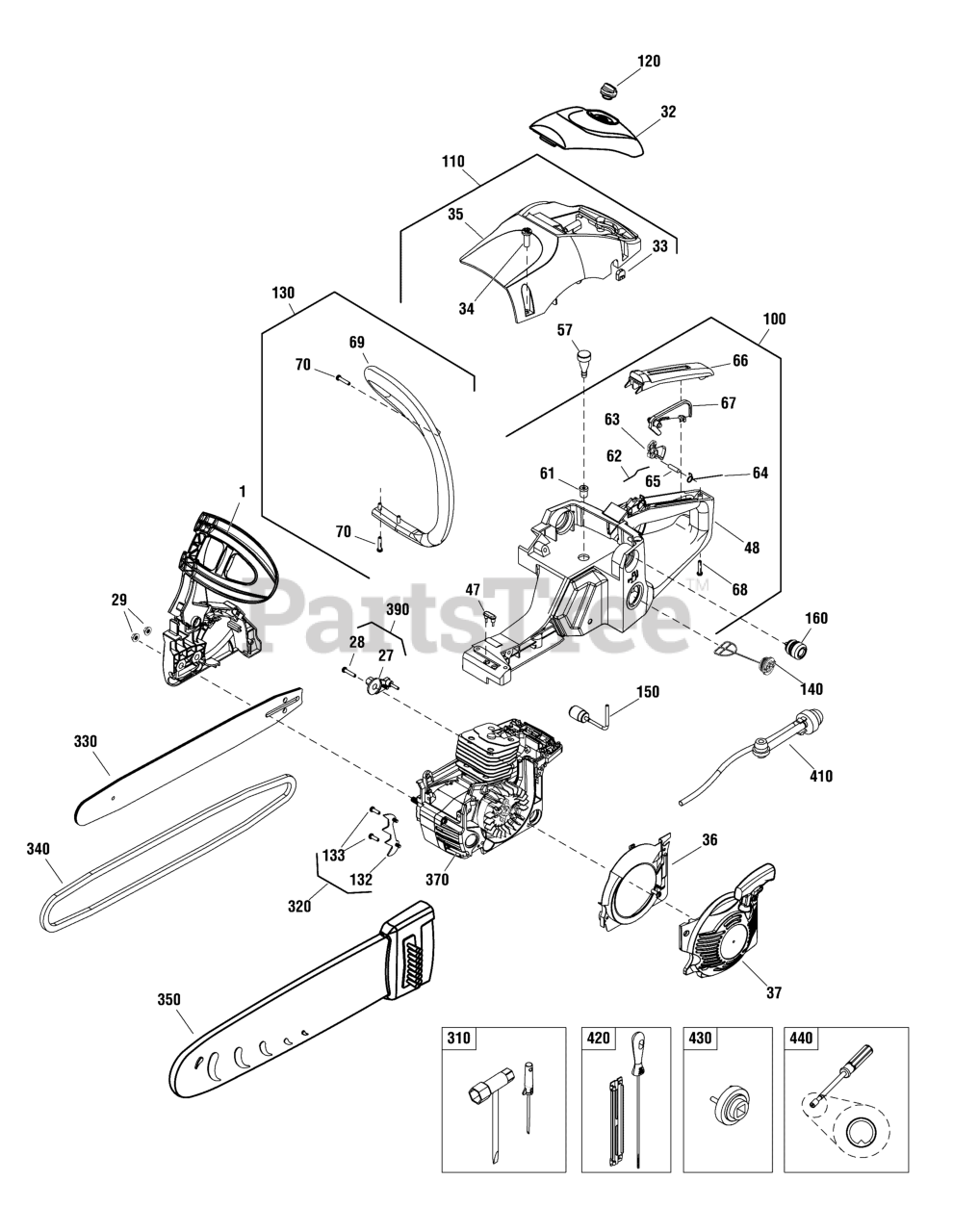

Body Group (MCS1845) Parts Diagram

  • Title

1

CHAIN BRAKE ASSEMBLY, Pewter

Note: (Not available in Pewter. Order CS00018A)

$

$

Not available

1

Murray CS00018A

CHAIN BRAKE ASSEMBLY, Silver
(Superseded to 706668)

$76.99

$

Usually ships in 2-12 days

0

27

SHIELD, Chain

Note: (Not a serviceable part. Order Ref. No. 390)

$

$

Not available

28

SCREW, M5 x 16

Note: (Not a serviceable part. Order Ref. No. 390)

$

$

Not available

29

Murray CS00046A

NUT, M8
(Superseded to 706734)

$4.99

$

Usually ships in 2-12 days

0

32

COVER, Air Filter, Black

Note: (Not available in Black. Order CS00049A)

$

$

Not available

32

Murray CS00049A

COVER, Air Filter, Blue
(Superseded to 706684)

$17.99

$

Usually ships in 2-12 days

0

33

GUIDE SET, Idle Adjusting

Note: (Not a serviceable part. Order Ref. No. 110)

$

$

Not available

34

SCREW, M5 x 16

Note: (Not a serviceable part. Order Ref. No. 110)

$

$

Not available

35

COVER PLATE, Upper

Note: (Not a serviceable part. Order Ref. No. 110)

$

$

Not available

36

Murray CS00053A

COVER, Guide Flow
(Superseded to 706688)

$8.49

$

Usually ships in 2-12 days

0

37

STARTER ASSEMBLY, Pewter

Note: (Not available in Pewter. Order CS00054A)

$

$

Not available

37

Murray CS00054A

STARTER ASSEMBLY, Silver
(Superseded to 706765)

$64.99

$

Usually ships in 2-12 days

0

47

SHOCK, Rubber

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

48

BASE ASSEMBLY

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

57

Murray CS00074A

BALANCER ASSEMBLY
(Superseded to 706655)

$10.99

$

Usually ships in 2-12 days

0

61

GROMMET

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

62

ROD, Throttle

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

63

TRIGGER

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

64

SPRING, Torsion, Trigger

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

65

PIN, 6 x 22

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

66

COVER, Rear Handle

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

67

PRESENCE TRIGGER

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

68

SCREW, Tapping, ST4.2 x 25

Note: (Not a serviceable part. Order Ref. No. 100)

$

$

Not available

69

HANDLE ASSEMBLY, Front

Note: (Not a serviceable part. Order Ref. No. 130)

$

$

Not available

70

SCREW, Tapping, ST4.8 x 16

Note: (Not a serviceable part. Order Ref. No. 130)

$

$

Not available

100

HANDLE ASSEMBLY, Rear, Black

Note: (Not available in Black. Order CS00197A)

$

$

Not available

100

Murray CS00197A

HANDLE ASSEMBLY, Rear, Silver
(Superseded to 706713)

$67.99

$

Usually ships in 2-12 days

0

110

COVER ASSEMBLY, Upper, Black

Note: (Not available in Black. Order CS00198A)

$

$

Not available

110

Murray CS00198A

COVER ASSEMBLY, Upper, Blue
(Superseded to 706682)

$17.99

$

Usually ships in 2-12 days

0

120

Murray CS00199A

KNOB, Air Filter
(Superseded to 706729)

$7.49

$

Usually ships in 2-12 days

0

130

Murray CS00200A

HANDLE ASSEMBLY, Front
(Superseded to 706711)

$57.99

$

Usually ships in 2-12 days

0

132

BUMPER, Spiked

Note: (Not a serviceable part. Order Ref. No. 320)

$

$

Not available

133

SCREW, M5 x 10

Note: (Not a serviceable part. Order Ref. No. 320)

$

$

Not available

140

Murray CS00201A

FUEL CAP ASSEMBLY
(Superseded to 706705)

$10.99

$

Usually ships in 2-12 days

0

150

Murray CS00202A

FUEL FILTER ASSEMBLY
(Superseded to 706708)

$14.99

$

Usually ships in 2-12 days

0

160

Murray CS00203A

SHOCK BUMPER ASSEMBLY
(Superseded to 706750)

$5.49

$

Usually ships in 2-12 days

0

310

Murray CS00216A

TOOL PACK
(Superseded to 706776)

$38.99

$

Usually ships in 2-12 days

0

320

Murray CS00209A

BUMPER ASSEMBLY
(Superseded to 706761)

$14.99

$

Usually ships in 2-12 days

0

330

Murray CS00006A

BAR, Oregon, 18"
(Superseded to 706658)

$314.99

$

Usually ships in 2-12 days

0

340

Murray CS00011A

CHAIN, Oregon, 18" - 0.325"
(Superseded to 706673)

$217.99

$

Usually ships in 2-12 days

0

350

Murray CS00196A

BAR COVER ASSEMBLY
(Superseded to 706687)

$37.99

$

Usually ships in 2-12 days

0

370

Murray CS00218A

SHORT ENGINE, 45cc
(Superseded to 706756)

$604.99

$

Usually ships in 2-12 days

0

390

Murray CS00220A

CHAIN CATCH ASSEMBLY
(Superseded to 706670)

$4.49

$

Usually ships in 2-12 days

0

410

Murray CS00389A

PRIMER BULB
(Superseded to 706743)

$13.99

$

Usually ships in 2-12 days

0

420

Murray CS00193A

* FILE & GUIDE PACK, 3/16
(Superseded to 706644)

$17.99

$

Usually ships in 2-12 days

0

430

Murray CS00409A

* TOOL, Clutch Removal
(Superseded to 706647)

$294.99

$

Usually ships in 2-12 days

0

440

Murray TL18068A

* TOOL, Carburetor Adjustment
(Superseded to 706646)

$18.99

$

Usually ships in 2-12 days

0
