MCS 1845-A - Murray 18" Chainsaw, 45cc (2014) Engine Group (MCS1845) Parts Diagram

18" Chainsaw, 45cc

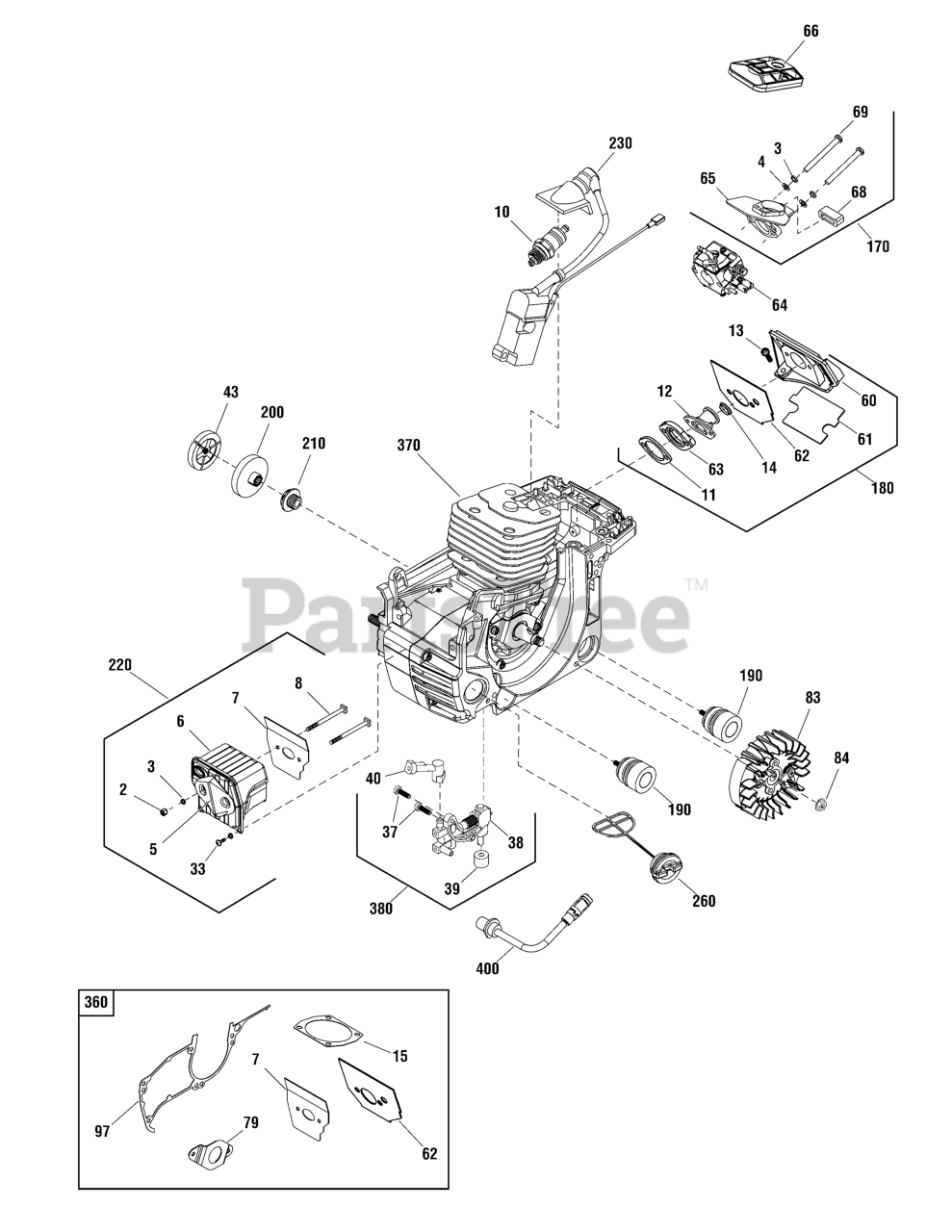

Engine Group (MCS1845) Parts Diagram

  • Title

2

NUT, M5

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

3

WASHER, 5

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

4

WASHER, 5

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

5

PLATE, Muffler Cover

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

6

MUFFLER

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

7

GASKET, Muffler

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

8

SCREW, Muffler

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

10

Murray RCJ7Y

SPARK PLUG, Champion
(Superseded to 706759)

$20.99

$

Usually ships in 2-12 days

0

11

GASKET, Air Intake

Note: (Not a serviceable part. Order Ref. No. 180)

$

$

Not available

12

TUBE, Air Intake

Note: (Not a serviceable part. Order Ref. No. 180)

$

$

Not available

13

SCREW, M5 x 12

Note: (Not a serviceable part. Order Ref. No. 180)

$

$

Not available

14

RETAINER RING

Note: (Not a serviceable part. Order Ref. No. 180)

$

$

Not available

15

SEALING PLATE, Cylinder

Note: (Not a serviceable part. Order Ref. No. 360)

$

$

Not available

33

SCREW, M5 x 10

Note: (Not a serviceable part. Order Ref. No. 220)

$

$

Not available

37

SCREW, M4 x 14

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

38

OIL PUMP

Note: (Not a serviceable part. Order Ref. No. 380)

$

$

Not available

39

SPONGE TRANSITION COIL

Note: (Not a serviceable part. Order Ref. No. 380)

$

$

Not available

40

NOZZLE

Note: (Not a serviceable part. Order Ref. No. 380)

$

$

Not available

43

Murray CS00130A

CLUTCH
(Superseded to 706677)

$14.99

$

Usually ships in 2-12 days

0

60

TUBE SUPPORT, Air Intake

Note: (Not a serviceable part. Order Ref. No. 180)

$

$

Not available

61

TIE PLATE

Note: (Not a serviceable part. Order Ref. No. 180)

$

$

Not available

62

SEALING PLATE, Air Intake

Note: (Not a serviceable part. Order Ref. No. 180)

$

$

Not available

63

TUBE FLANGE, Air Intake

Note: (Not a serviceable part. Order Ref. No. 180)

$

$

Not available

64

Murray CS00151A

CARBURETOR, Walboro WT893A
(Superseded to 706666)

$188.99

$

Usually ships in 2-12 days

0

65

SOCKET, Air Intake

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

66

Murray CS00153A

AIR FILTER
(Superseded to 706648)

$7.99

$

Usually ships in 2-12 days

0

68

CUSHION, Air Intake Socket

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

69

SCREW, M5 x 50

Note: (Not a serviceable part. Order Ref. No. 170)

$

$

Not available

79

OIL SHIELD

Note: (Not a serviceable part. Order Ref. No. 360)

$

$

Not available

83

Murray CS00170A

FLYWHEEL
(Superseded to 706703)

$49.99

$

Usually ships in 2-12 days

0

84

Murray CS00175A

NUT, M8

$

$

Currently unavailable

97

SEALING PLATE, Case Body

Note: (Not a serviceable part. Order Ref. No. 360)

$

$

Not available

170

Murray CS00204A

AIR FILTER MOUNT ASSEMBLY
(Superseded to 706651)

$14.99

$

Usually ships in 2-12 days

0

180

Murray CS00205A

AIR INTAKE ASSEMBLY
(Superseded to 706652)

$7.49

$

Usually ships in 2-12 days

0

190

Murray CS00206A

SHOCK SEAT ASSEMBLY
(Superseded to 706752)

$4.49

$

Usually ships in 2-12 days

0

200

Murray CS00207A

CLUTCH CUP ASSEMBLY
(Superseded to 706680)

$29.99

$

Usually ships in 2-12 days

0

210

Murray CS00208A

DRIVESPROCKET ASSEMBLY
(Superseded to 706697)

$26.99

$

Usually ships in 2-12 days

0

220

Murray CS00210A

MUFFLER
(Superseded to 706731)

$51.99

$

Usually ships in 2-12 days

0

230

Murray CS00211A

IGNITION UNIT
(Superseded to 706715)

$42.99

$

Usually ships in 2-12 days

0

260

Murray CS00212A

CAP, Oil
(Superseded to 706662)

$12.99

$

Usually ships in 2-12 days

0

360

Murray CS00217A

KIT, Gasket
(Superseded to 706720)

$9.49

$

Usually ships in 2-12 days

0

370

Murray CS00218A

SHORT ENGINE, 45cc
(Superseded to 706756)

$569.99

$

Usually ships in 2-12 days

0

380

Murray CS00219A

OIL PUMP ASSEMBLY
(Superseded to 706738)

$26.99

$

Usually ships in 2-12 days

0

400

Murray CS00221A

OIL FILTER
(Superseded to 706736)

$7.49

$

Usually ships in 2-12 days

0
