MCS 1845-A - Murray 18" Chainsaw, 45cc (2014) Engine Group - Short Engine Assembly (CS00218) Parts Diagram

18" Chainsaw, 45cc

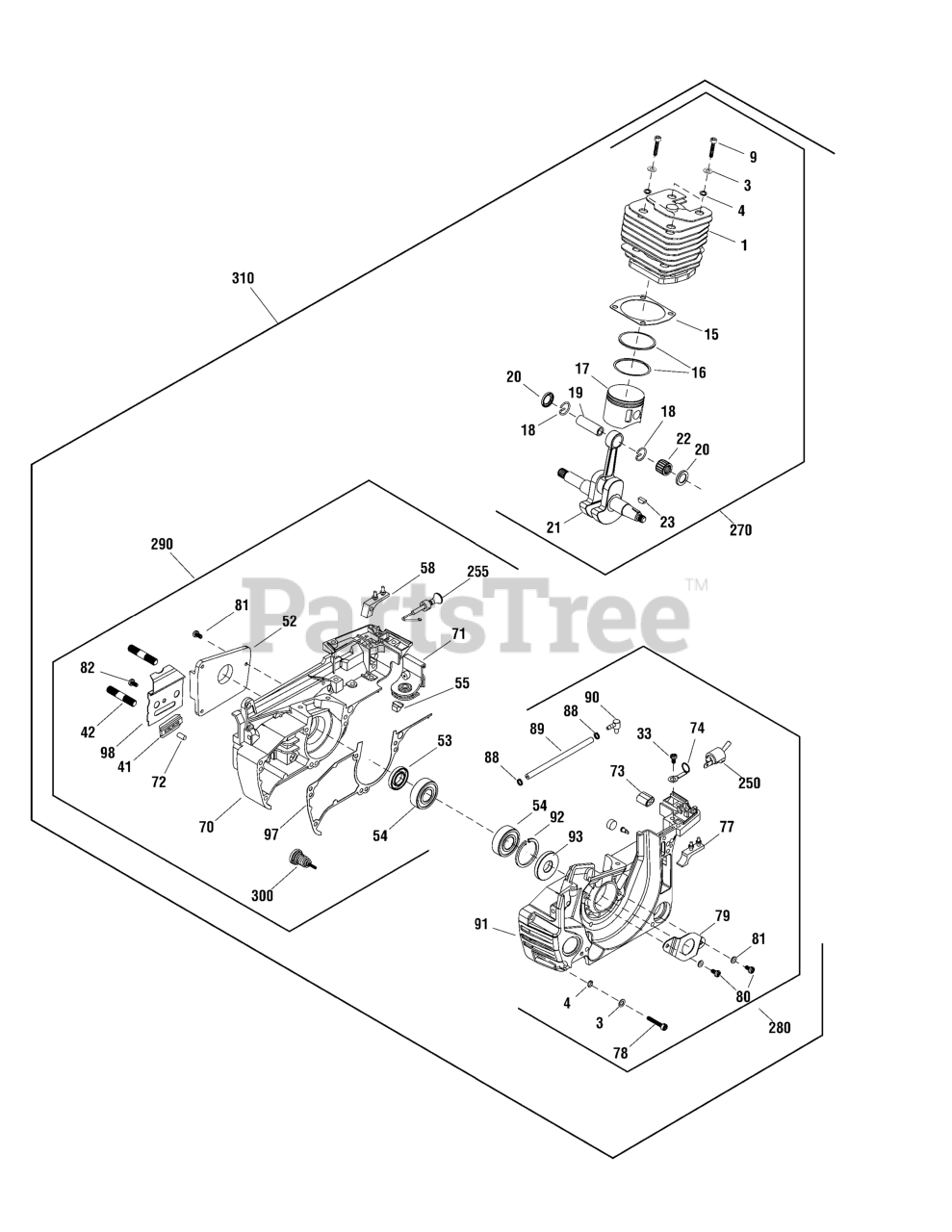

Engine Group - Short Engine Assembly (CS00218) Parts Diagram

  • Title

1

CYLINDER

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

3

WASHER, 5

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

4

WASHER, 5

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

9

SCREW, M5 x 20

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

15

SEALING PLATE, Cylinder

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

16

PISTON RING

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

17

PISTON

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

18

CIRCLIP, Piston

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

19

PIN, Piston

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

20

NEEDLE BEARING RING

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

21

CRANK SHAFT

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

22

NEEDLE BEARING, 11 x 15 x 12.5

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

23

KEY, Semicircular, 3 x 3.5 x 10

Note: (Not a serviceable part. Order Ref. No. 270)

$

$

Not available

33

SCREW, M5 x 10

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

41

BLOCK, Chain Guide

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

42

BOLT, Double Screw, AYM8-M8 x 26-8.8

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

52

COVER PLATE

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

53

OIL SEAL, 15 x 28 x 4.5

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

54

BEARING, 6202D grade 15 x 35 x 11

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

55

CUSHION BLOCK

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

58

SHOCK BLOCK, RH

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

70

CASE, RH

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

71

DUST PLATE

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

72

PIN, 5 x 10

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

73

GUIDE SLEEVE

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

74

EARTHING STRIP

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

77

SHOCK BLOCK, LH

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

78

SCREW, M5 x 25

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

79

OIL SHIELD

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

80

SCREW, M4 x 8

Note: (Not a serviceable part. Order corresponding Kit)

$

$

Not available

81

WASHER, 4

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

82

SCREW, M4 x 10

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

88

CIRCLIP, Suction Tube

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

89

SUCTION TUBE, 2.5 x 6 x 105

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

90

SUCTION JET

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

91

CASE, LH

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

92

SHIELD RING, 35

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

93

OIL SESAL, 15 x 35 x 4.5

Note: (Not a serviceable part. Order Ref. No. 280)

$

$

Not available

97

CASE BODY SEALING PLATE

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

98

DAMPER

Note: (Not a serviceable part. Order Ref. No. 290)

$

$

Not available

250

Murray CS00415A

STARTER SWITCH ASSEMBLY
(Superseded to 706768)

$18.99

$

Usually ships in 2-12 days

0

255

Murray CS00414A

CHOKE ASSEMBLY
(Superseded to 706676)

$3.99

$

Usually ships in 2-12 days

0

270

Murray CS00213A

CYLINDER & PISTON ASSEMBLY
(Superseded to 706695)

Note: (Includes all parts shown in box)

$102.99

$

Usually ships in 2-12 days

0

280

Murray CS00214A

CHASSIS ASSEMBLY, LH
(Superseded to 706674)

Note: (Includes all parts shown in box)

$85.99

$

Usually ships in 2-12 days

0

290

Murray CS00215A

CHASSIS ASSEMBLY, RH
(Superseded to 706675)

Note: (Includes all parts shown in box)

$90.99

$

Usually ships in 2-12 days

0

300

Murray CS00401A

SPRING BASE ASSEMBLY
(Superseded to 706763)

$13.99

$

Usually ships in 2-12 days

0

310

Murray CS00218A

ENGINE, 45cc, Complete
(Superseded to 706756)

Note: (Includes Ref. Nos. 270, 280 & 290)

$569.99

$

Usually ships in 2-12 days

0
